More Part Access
Reduce tool interference and improve machining flexibility.
5-AXIS CNC WORKHOLDING
5-Axis Pyramid Fixtures & CNC Workholding
Modular pyramid fixtures for multi-sided 5-axis CNC machining, designed to increase part accessibility, support multiple workpieces, and simplify repeatable workholding setups.
Explore 5-Axis Workholding Guide →Multi-Sided AccessImprove access to complex part surfaces.
Modular DesignConfigure different workholding setups.
High PrecisionSupport repeatable CNC positioning.
Reduced Setup TimeSimplify fixture changes and setups.
Durable & ReliableBuilt for demanding machining environments.
5-AXIS WORKHOLDING SOLUTIONS
5-Axis Pyramid Fixtures for Multi-Sided CNC Machining
ZPP 5-axis pyramid fixtures are designed for CNC machining applications that require access to multiple sides of a workpiece. By arranging multiple workholding stations around a compact fixture structure, pyramid fixtures support multi-sided machining while reducing repeated repositioning.
Different configurations are available for compact parts, multi-part machining, and higher-density production. Combined with zero point workholding, these fixtures support repeatable positioning and fast fixture changes.
Learn about 5-Axis Workholding →OUR PRODUCTS
Featured 5-Axis Pyramid Fixtures

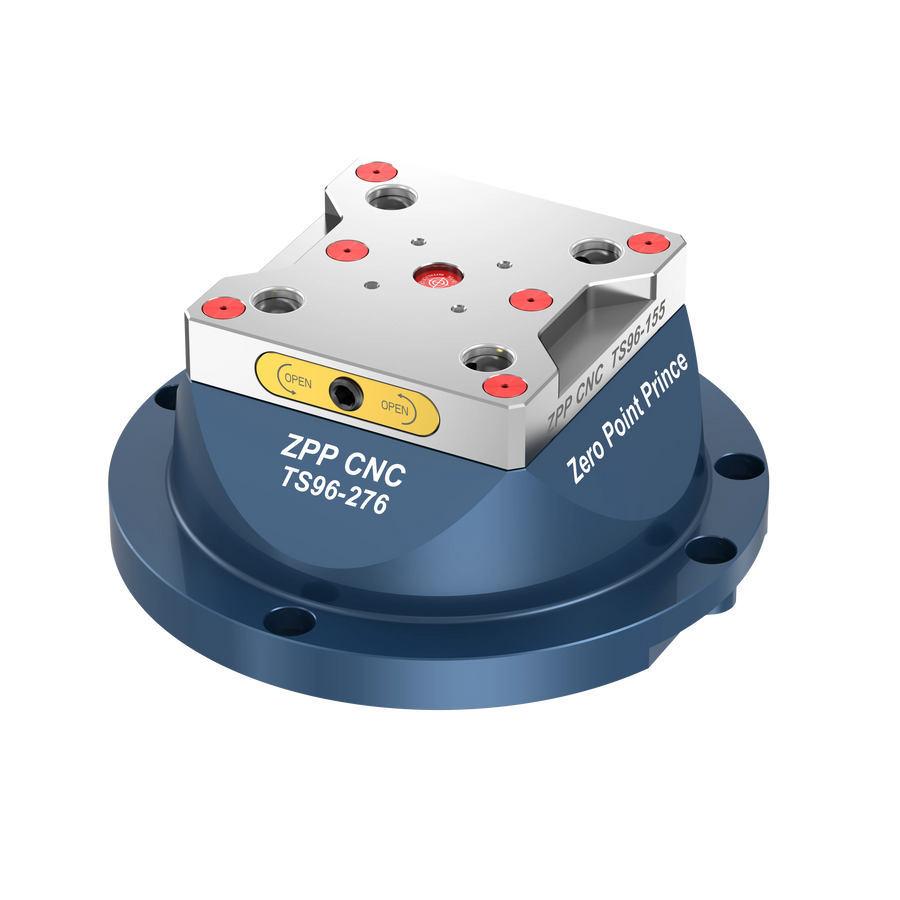

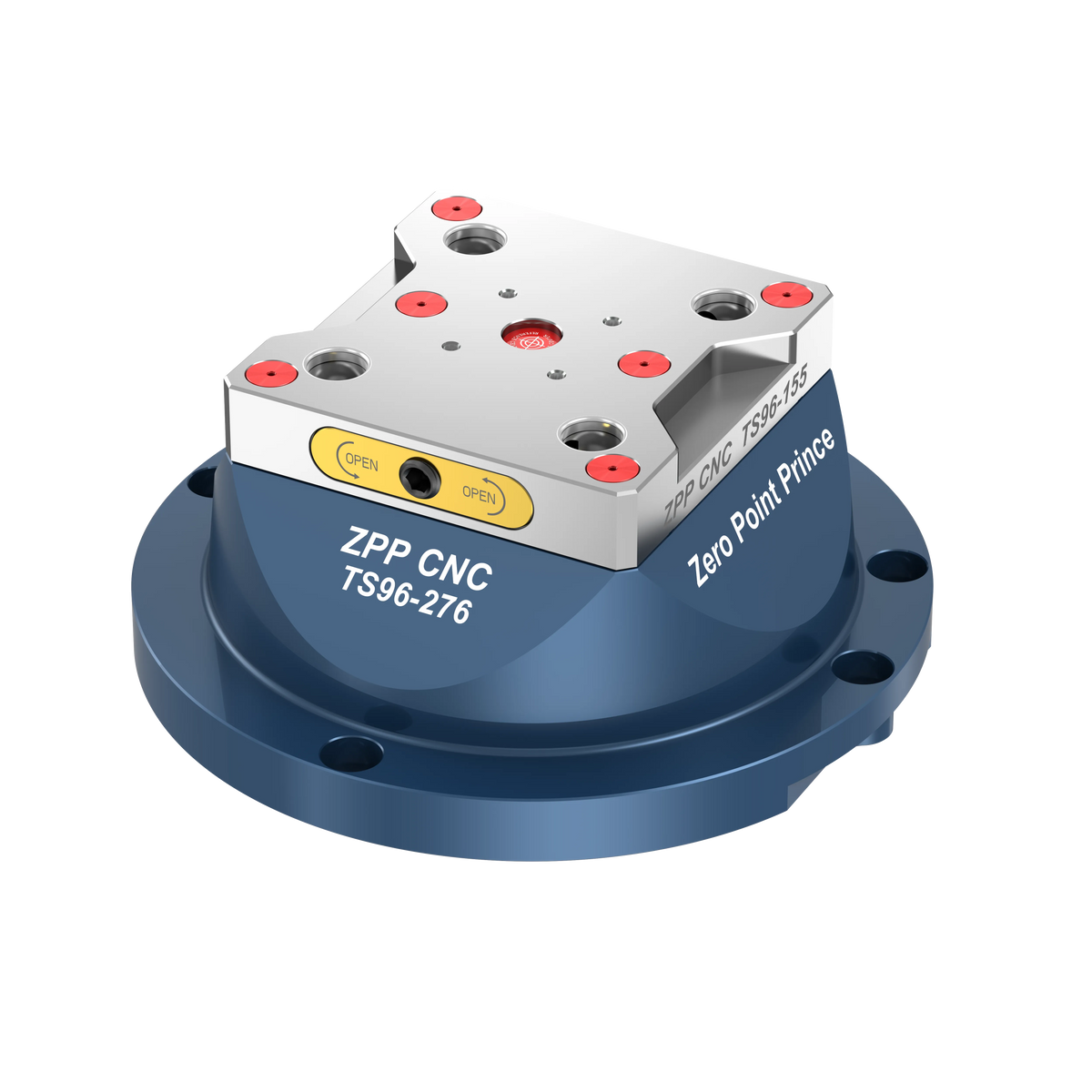

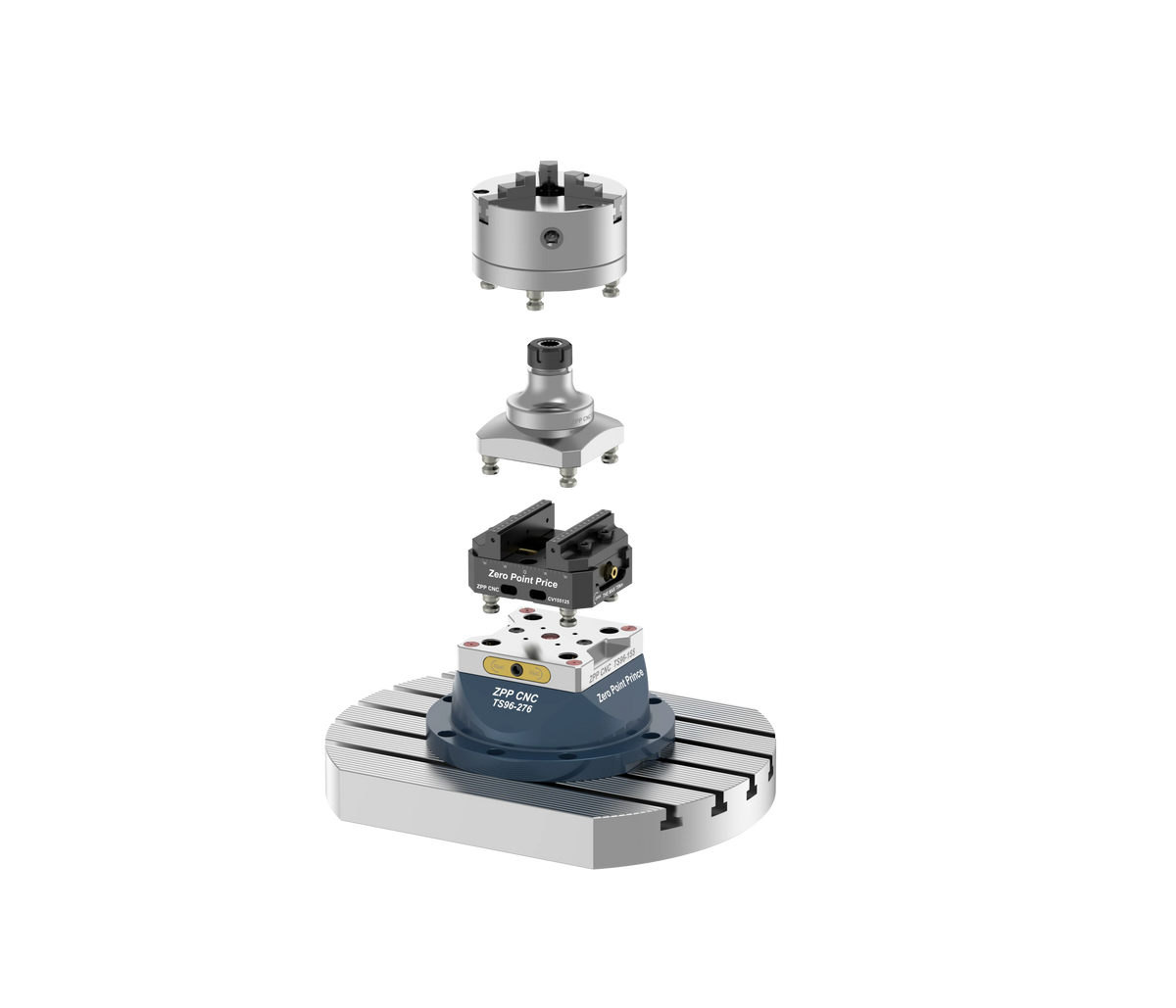

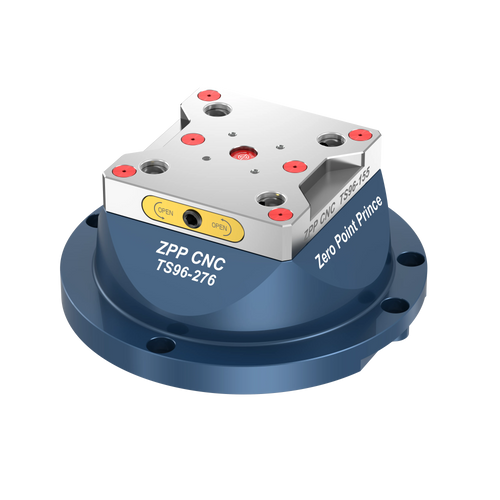

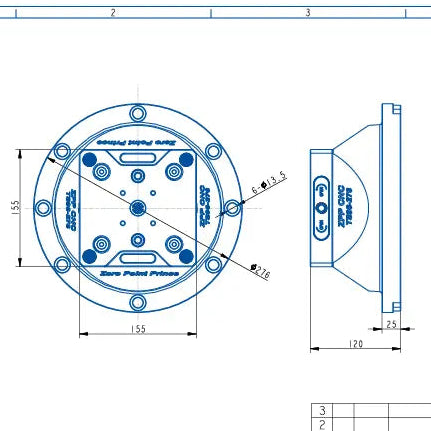

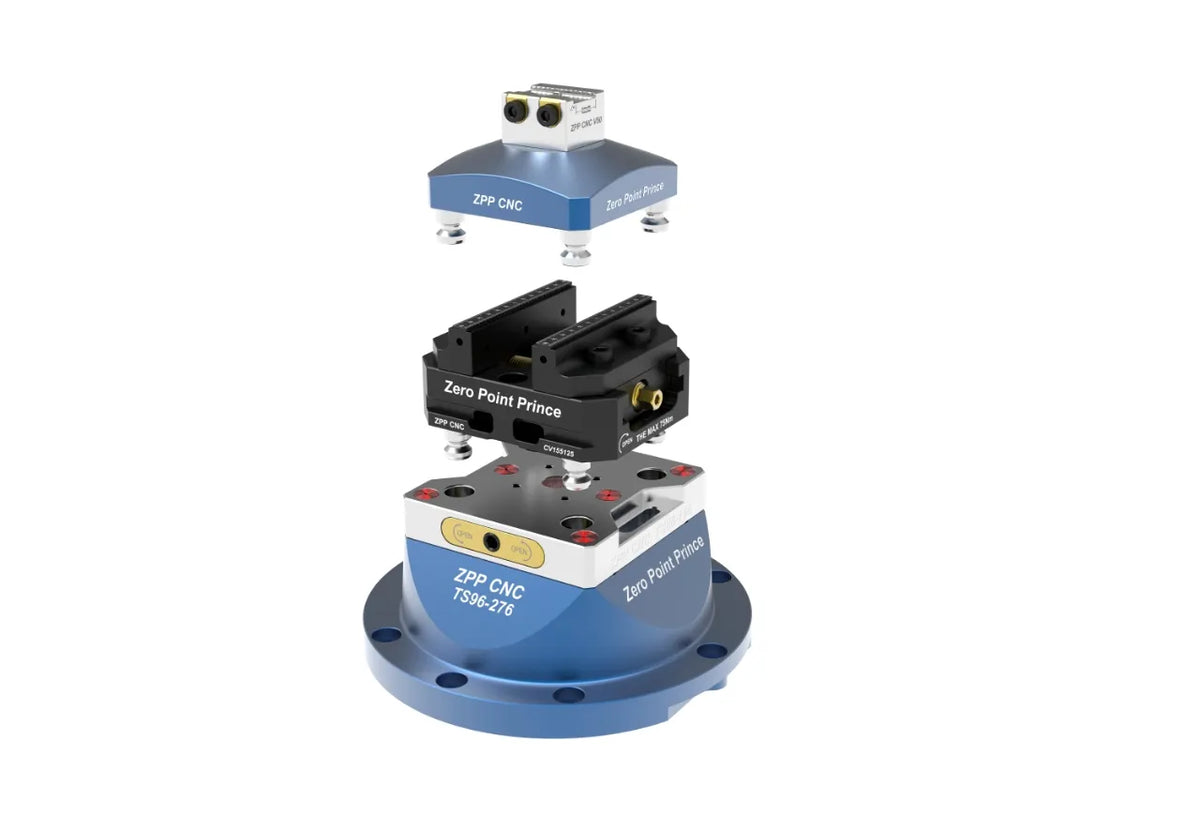

TS96-276-155 (Square) Pyramid Zero Point Fixture(D276*120mm)
Square pyramid fixture for larger fixture layouts and modular CNC workholding.
Learn More →

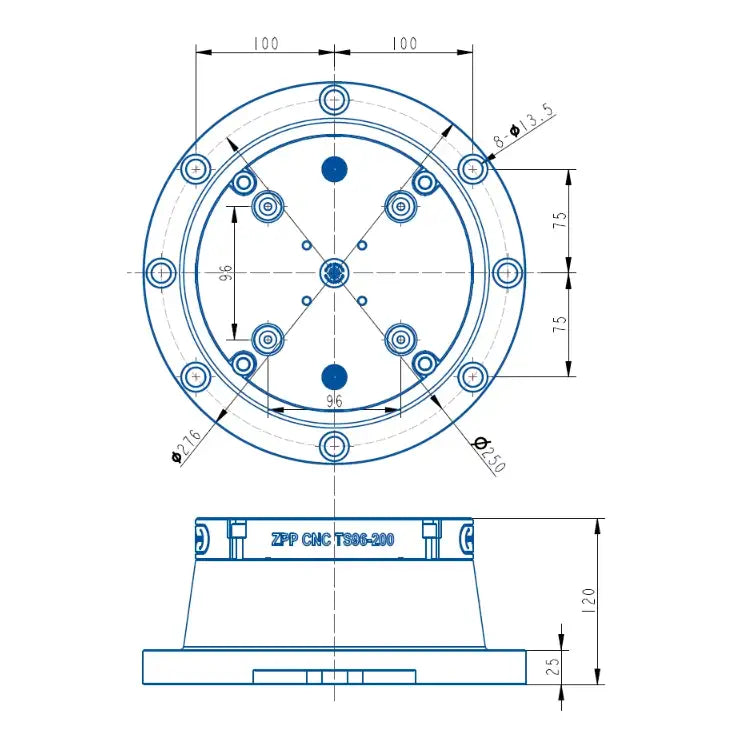

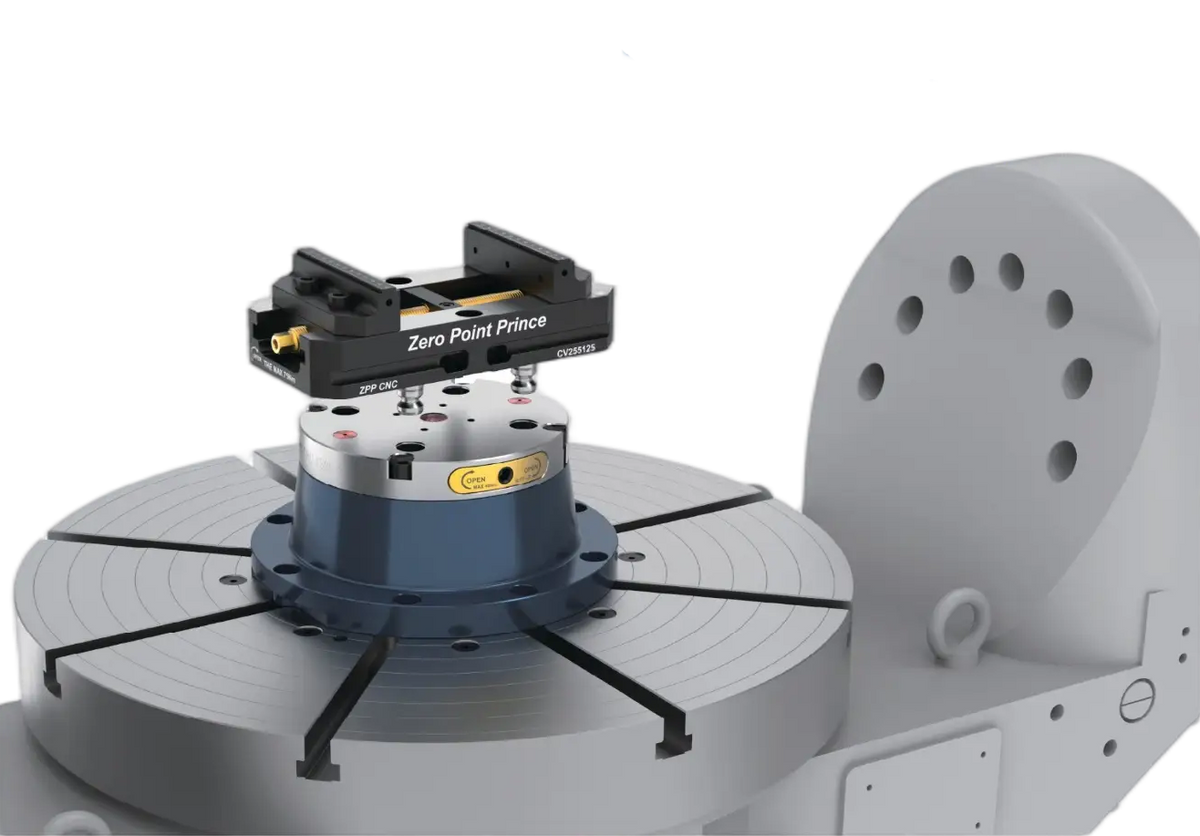

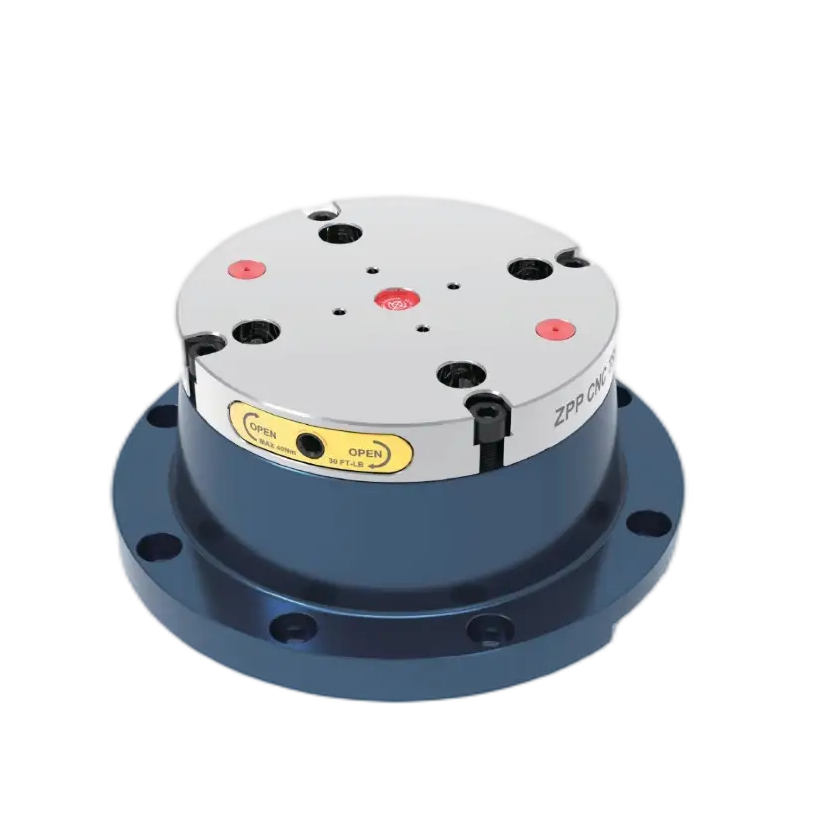

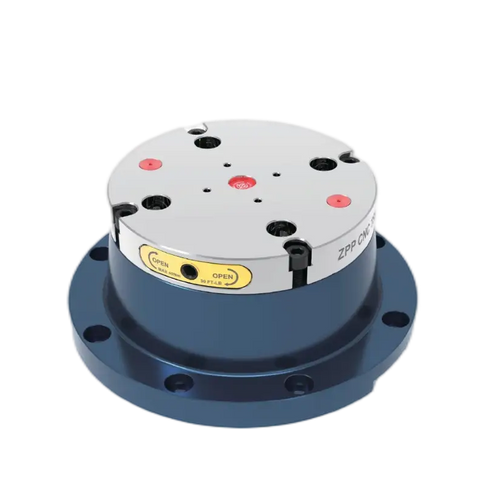

TS96-276-200 5‑Axis Pyramid Series – Circle (D276*120mm)
Circular fixture for flexible single-part and multi-face access.
Learn More →

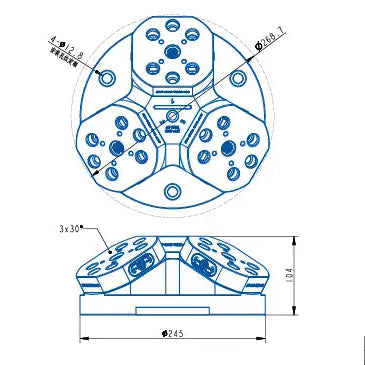

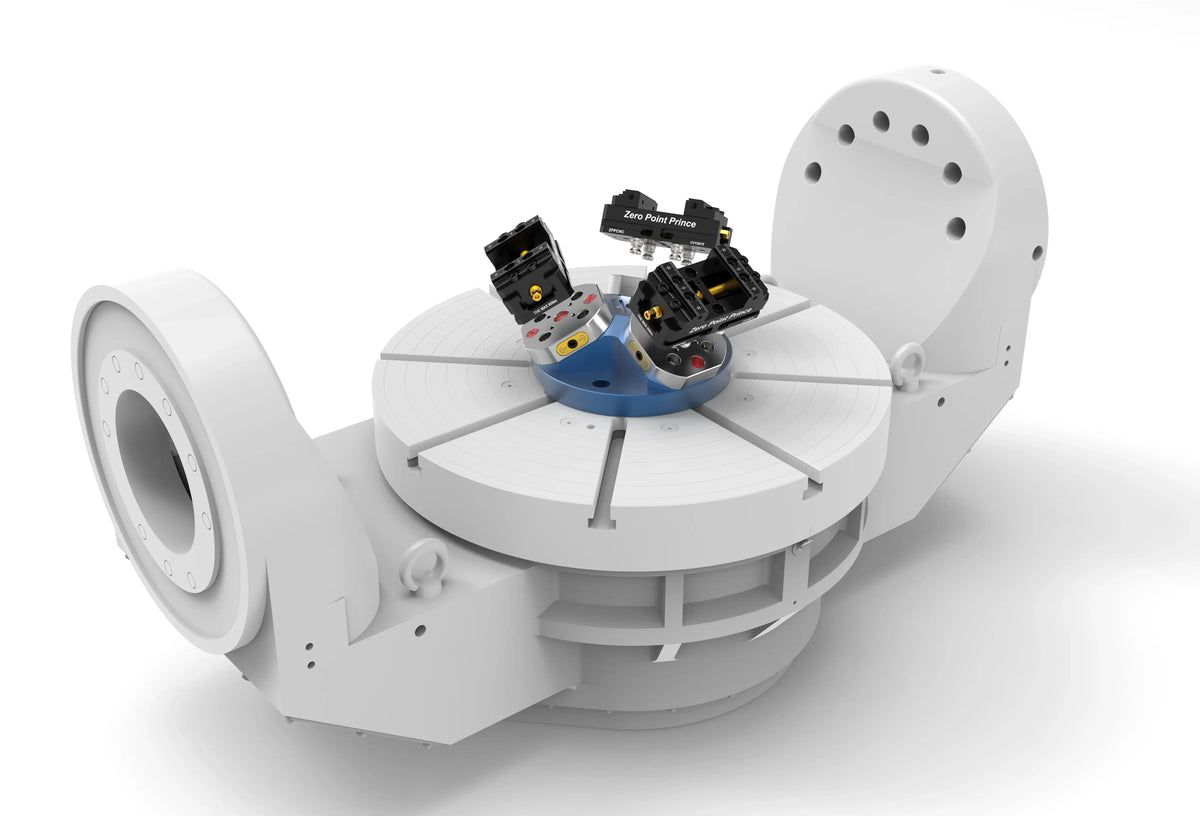

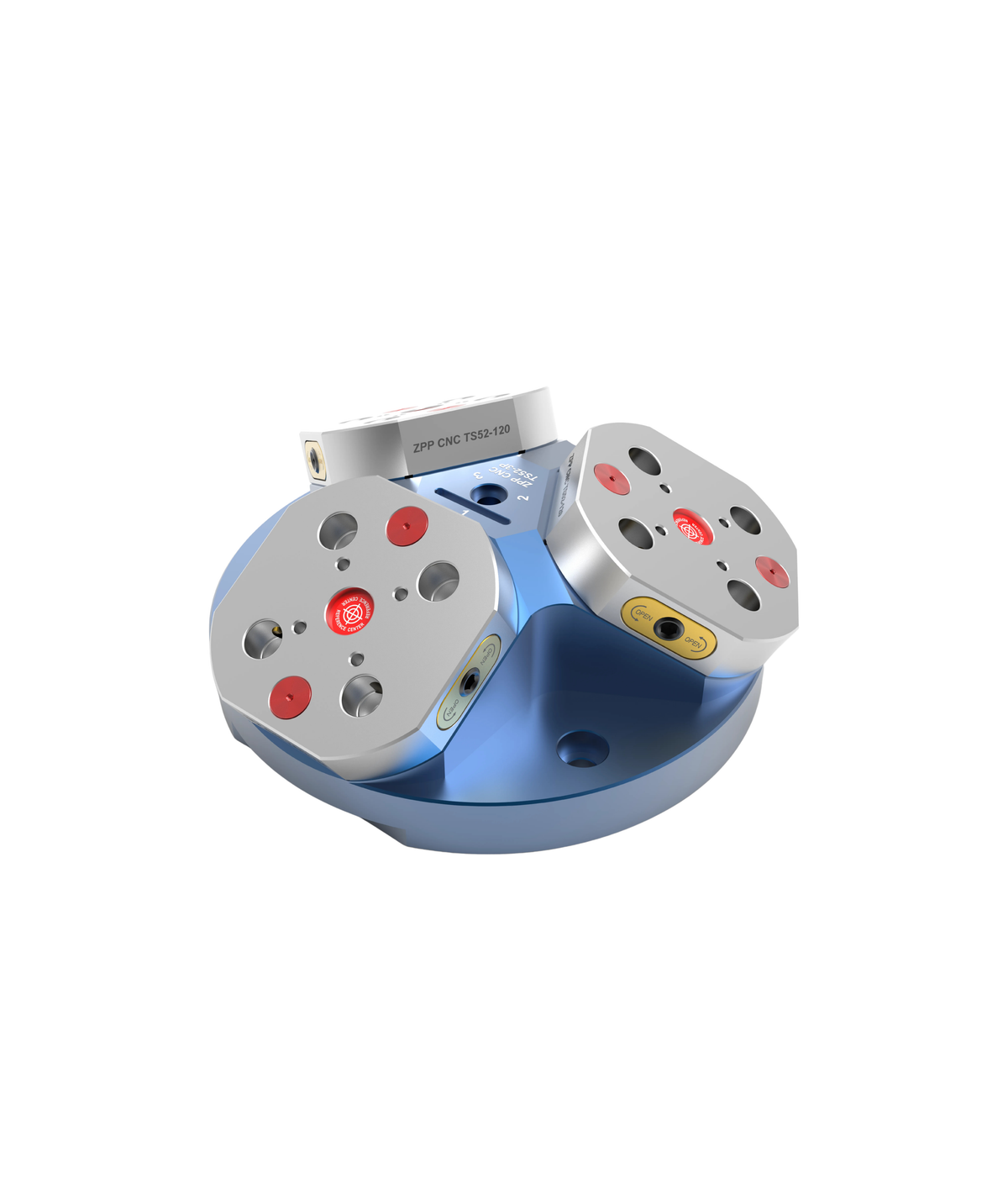

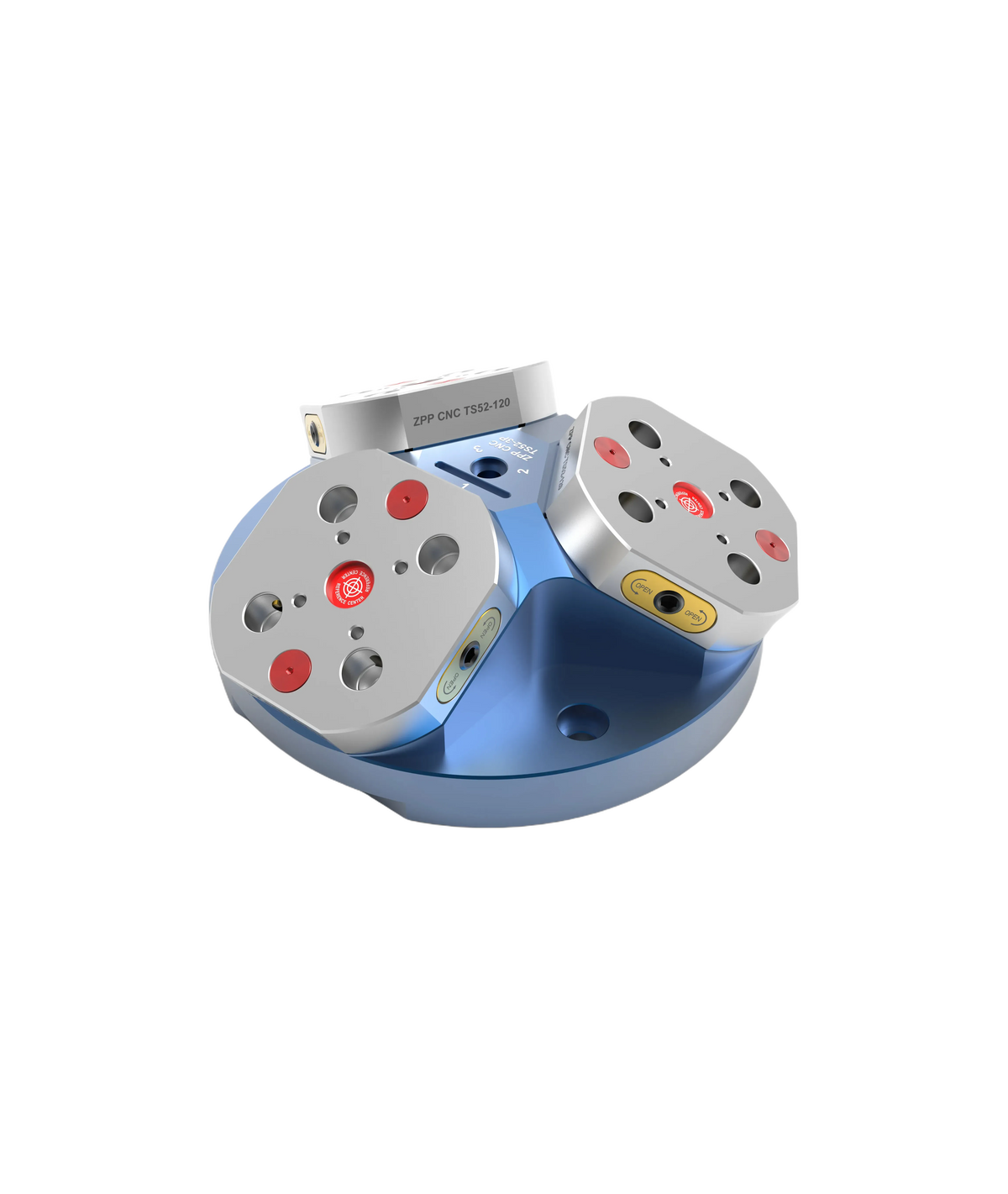

TS52-3P 3-Station Pyramid Zero Point Fixture for 5-Axis CNC
Compact 3-station pyramid fixture for small parts and limited space.
Learn More →

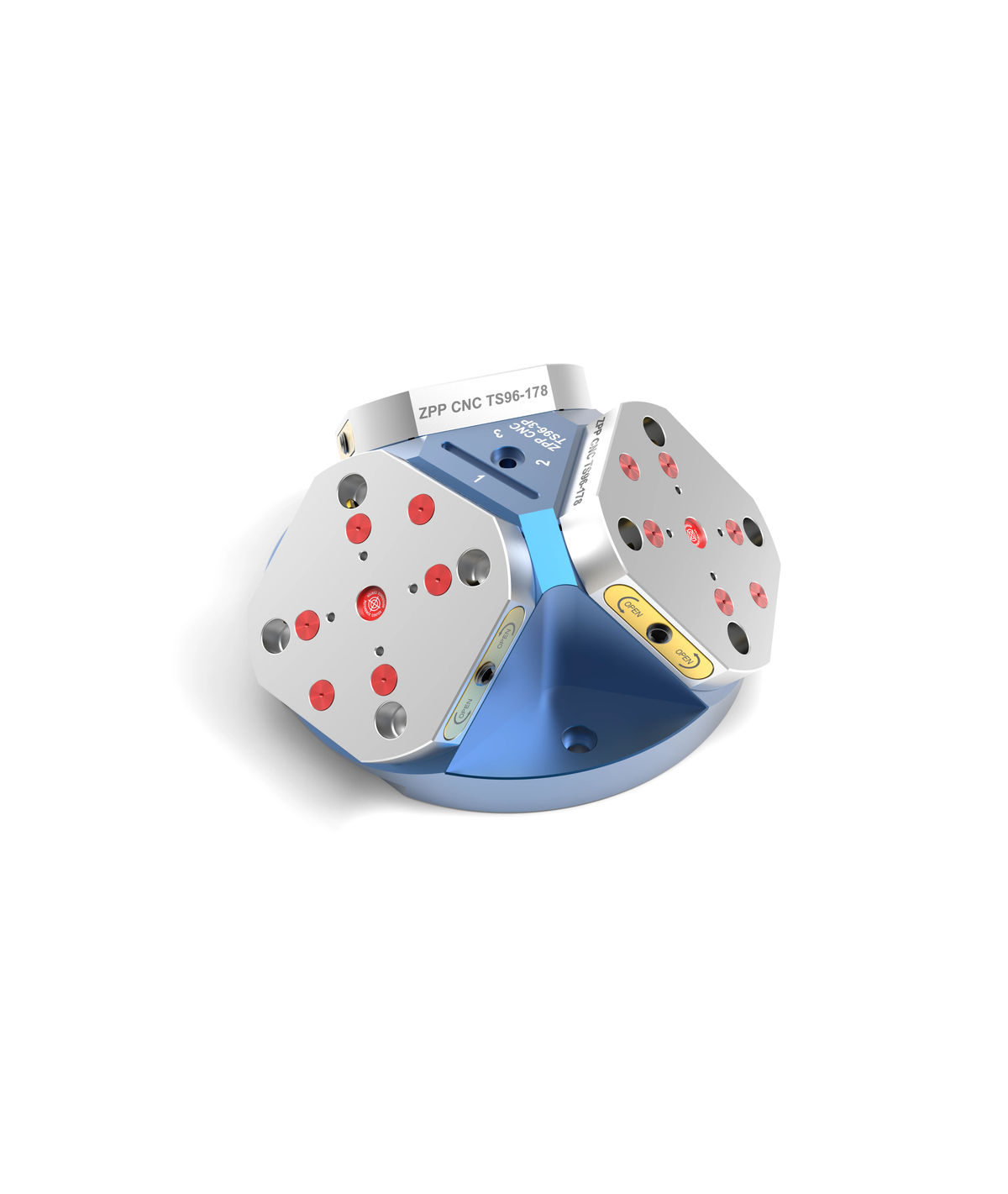

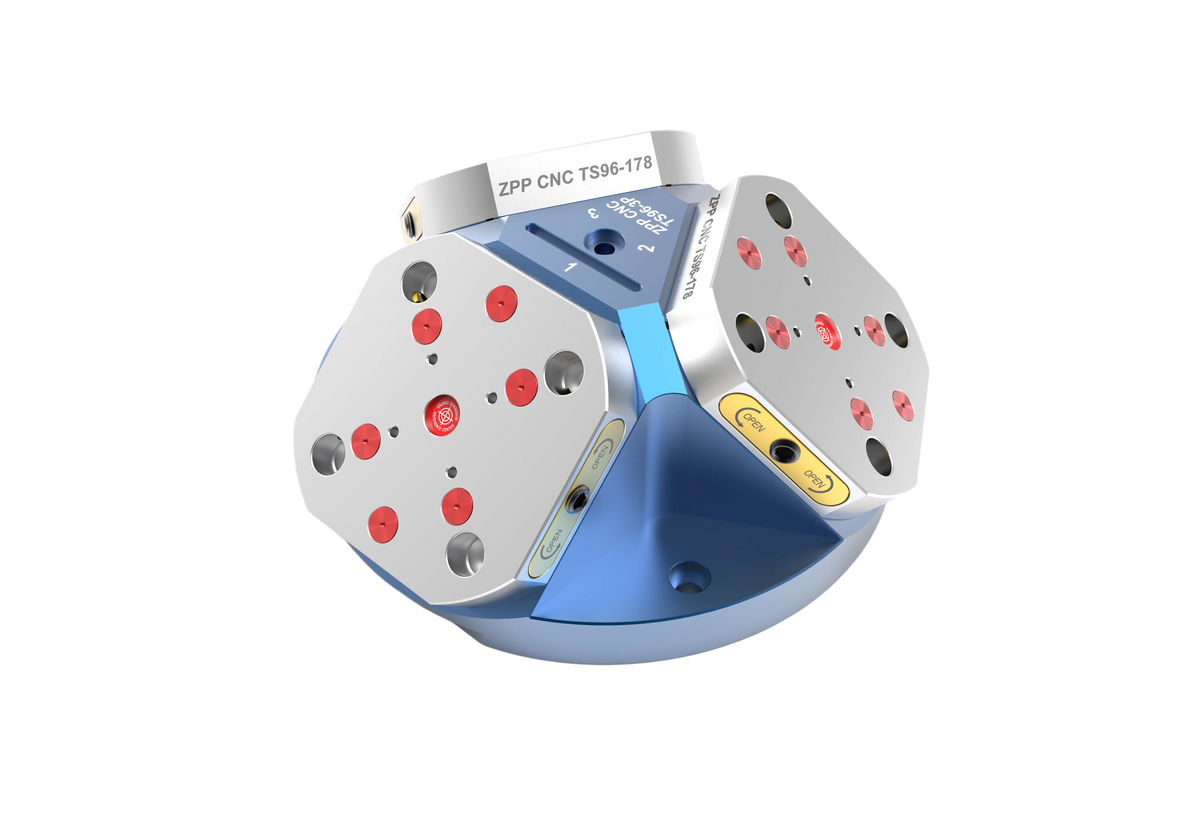

TS96-3P (3 Station) Pyramid Zero Point Fixture(D315*151.7mm)
3-station pyramid fixture for multi-part machining and 3-sided access.
Learn More →

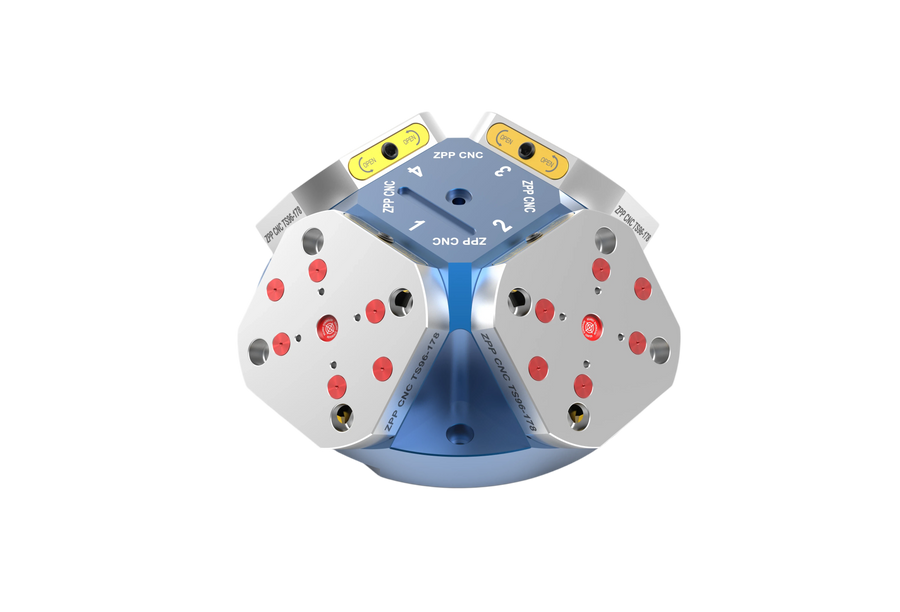

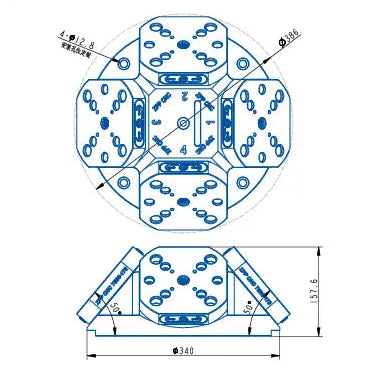

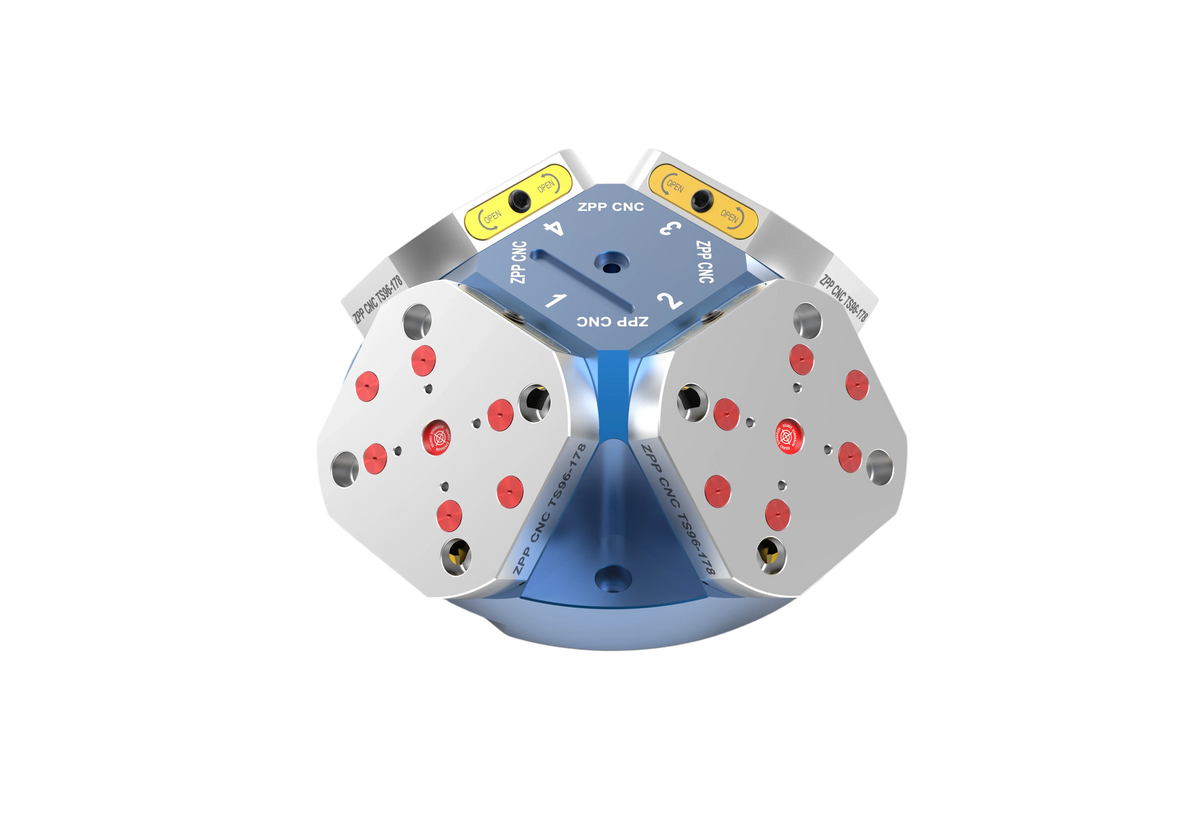

TS96-4P (4 Station) Pyramid Zero Point Fixture(D340*157.6mm)
4-station pyramid fixture for high-density production workholding.
Learn More →CHOOSE YOUR CONFIGURATION
Find the Right 5-Axis Pyramid Fixture for Your Application
Different configurations meet different machining needs. Compare fixture geometry, station count, workpiece size and machine envelope before choosing your setup.
View Configuration Guide →
SYSTEM INTEGRATION
5-Axis Pyramid Fixtures with Zero Point Workholding
Combine a 5-axis pyramid fixture with a zero point locating system to create a modular workholding architecture for repeatable fixture positioning and fast setup changes.
Explore Zero Point Clamping Systems →WHY USE A PYRAMID FIXTURE?
Why Use a Pyramid Fixture for 5-Axis Machining?
Multi-Part Capacity
Machine multiple workpieces within one fixture setup.
Repeatable Setup
Support consistent positioning with modular workholding.
Reduced Repositioning
Minimize setup changes during multi-sided machining.
APPLICATIONS
5-Axis Pyramid Fixture Applications
AerospaceExplore application →
AutomotiveExplore application →

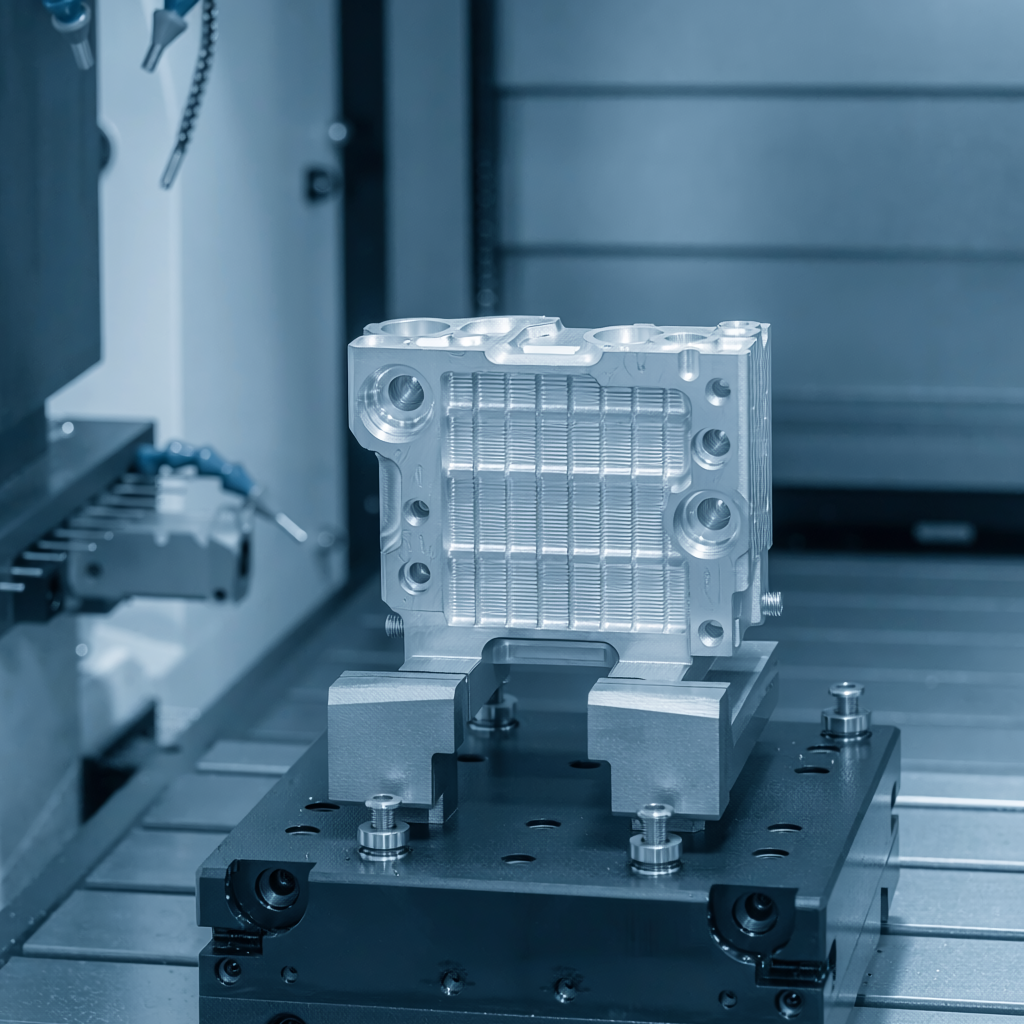

MedicalExplore application →
Precision MoldExplore application →

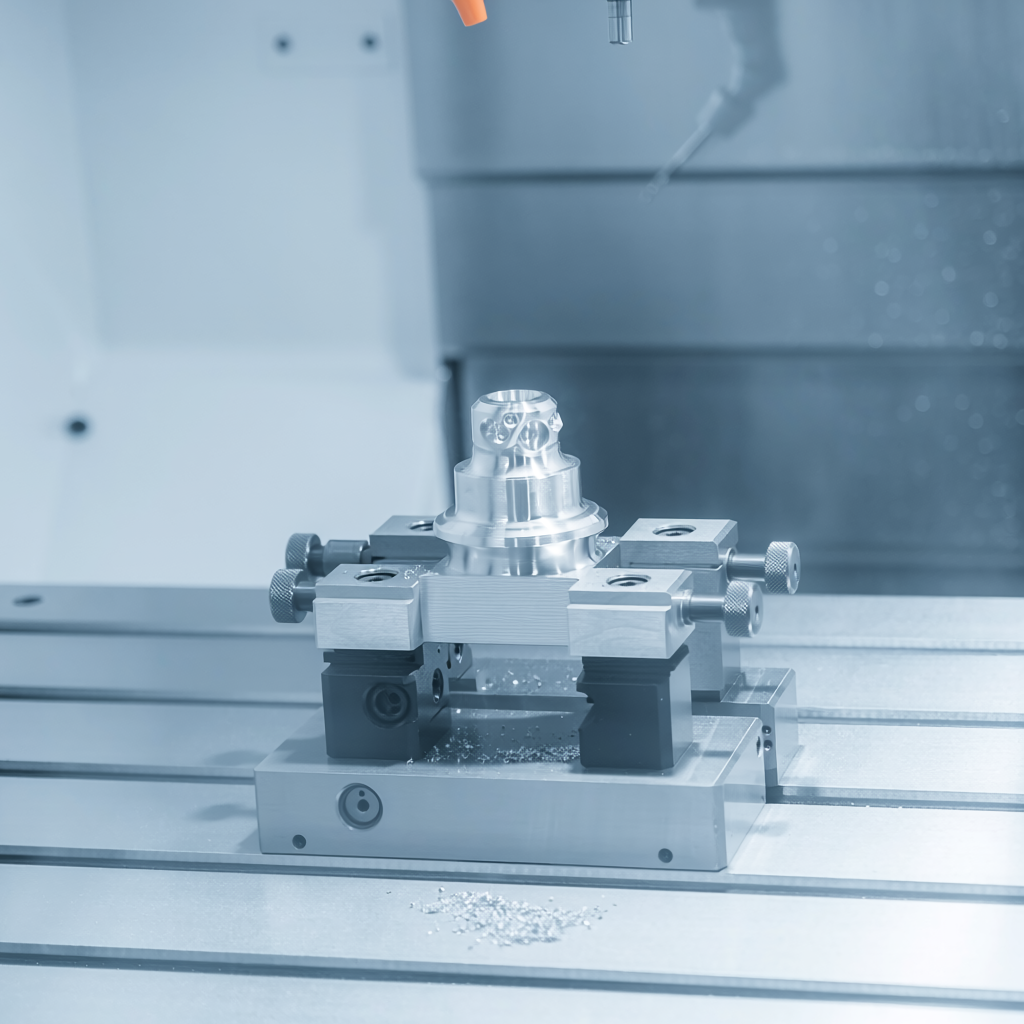

Electronics / 3CExplore application →

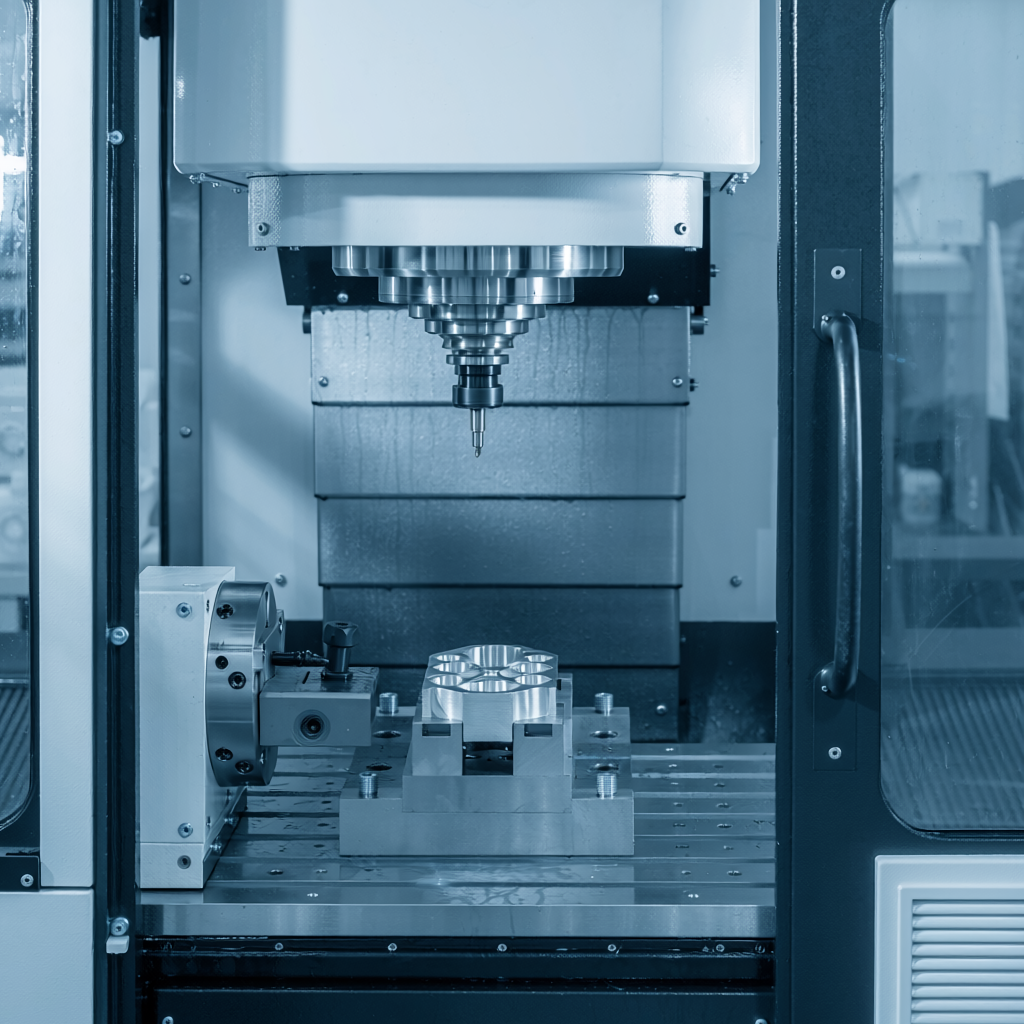

General MachiningExplore application →
FAQ
Frequently Asked Questions
What is a 5-axis pyramid fixture?+
A 5-axis pyramid fixture is a workholding structure that positions one or multiple workpieces around multiple faces or stations, allowing a 5-axis machining center to reach more sides of the parts within a compact setup.
What is a 5-axis pyramid fixture used for?+
It is used for multi-sided CNC machining, multi-part production, and applications where tool access and fixture density are important considerations.
What is the difference between a 3-station and 4-station pyramid fixture?+
A 3-station fixture provides three machining stations, while a 4-station fixture provides four. More stations can increase parts-per-cycle, while a smaller station count can provide a more compact rotating envelope.
Can a pyramid fixture be used with a zero point system?+
Yes. ZPP pyramid fixtures are designed to work with matching zero point interfaces, allowing the fixture to be located and changed using a standardized reference.
What is the difference between a 5-axis fixture and a pyramid fixture?+
5-axis fixture is a broad category covering different workholding designs for 5-axis machining. A pyramid fixture is one specific multi-face or multi-station fixture architecture within that category.
How do I choose the right pyramid fixture for my CNC machine?+
Start with workpiece size, required number of parts per cycle, zero point pitch, rotary travel and available tool clearance. Then compare TS52, TS96 and circular configurations against your machine envelope.
Are pyramid fixtures suitable for multi-part machining?+
Yes. Multi-station pyramid fixtures can hold multiple workpieces in one setup, making them useful when machining several parts or multiple sides of parts in a single cycle.
RELATED GUIDES
Related 5-Axis Workholding Guides
5-Axis Workholding: Complete CNC Workholding GuideUnderstand 5-axis workholding methods, selection and setup.Learn More →
5-Axis Pyramid Fixtures: Complete GuideCompare TS52, TS96, 3P, 4P and circular configurations.Learn More →
Zero Point Clamping System Complete GuideExplore zero point interfaces for modular CNC workholding.Learn More →
CNC Workholding SystemsSee how vises, zero point systems and 5-axis fixtures work together.Learn More →
ZPP CNC WORKHOLDING
Need Help Choosing the Right 5-Axis Solution?
Our team can help you identify the right workholding configuration for your CNC machining application.
Explore zero point modules, plates, pneumatic systems, and modular workholding for CNC machining.
