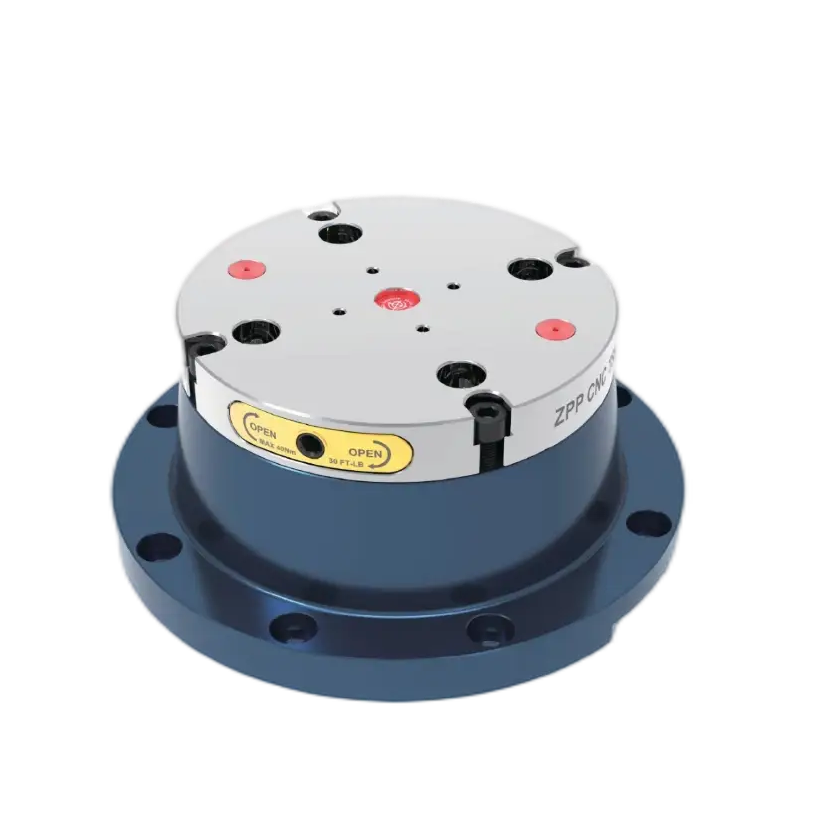

TS96-276 5‑Axis Pyramid Series – Circle (D276*120mm)

Robust Circular Pyramid Clamping for 5‑Axis Trunnions

Stable, Centered Workholding for Complex Contouring

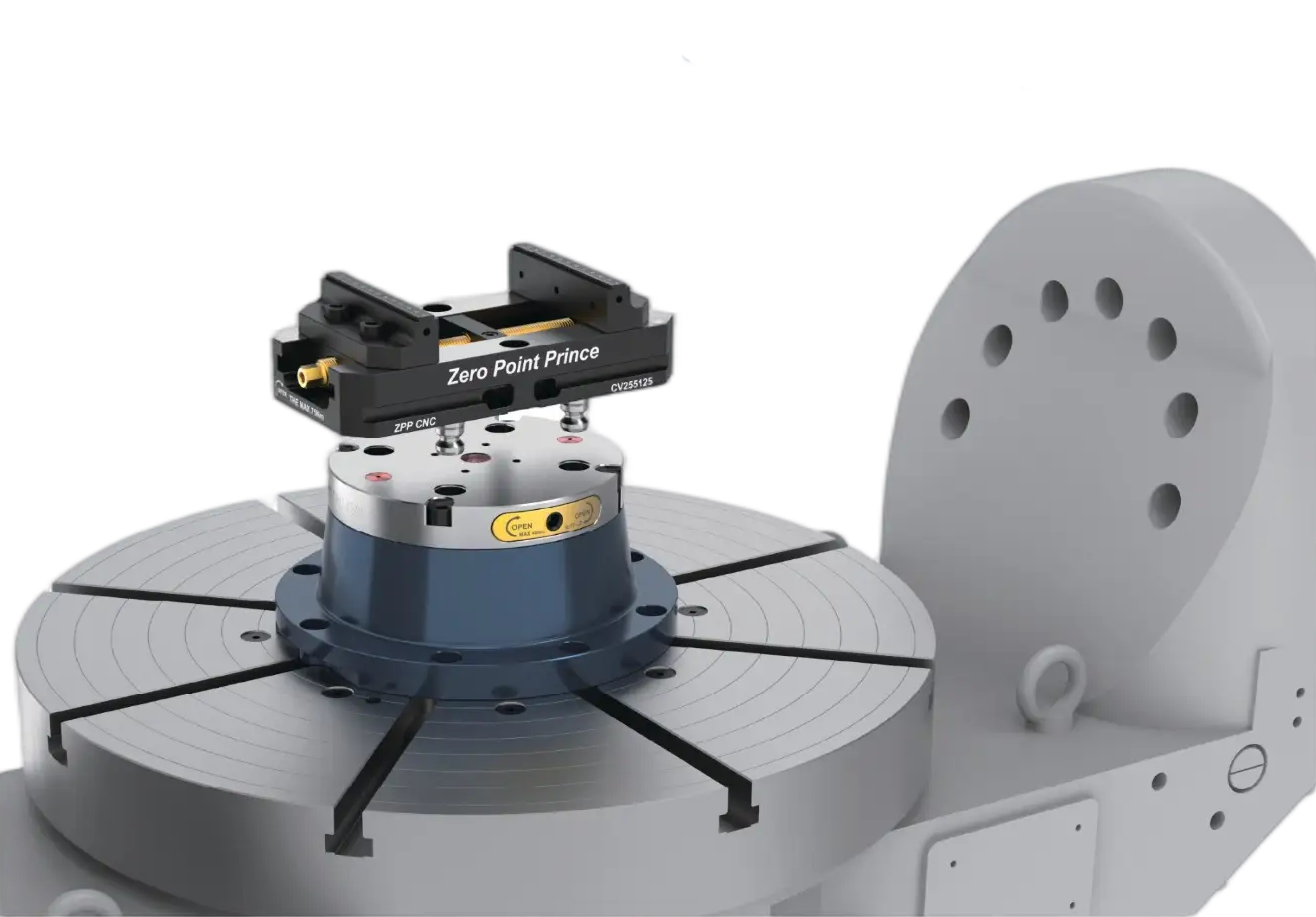

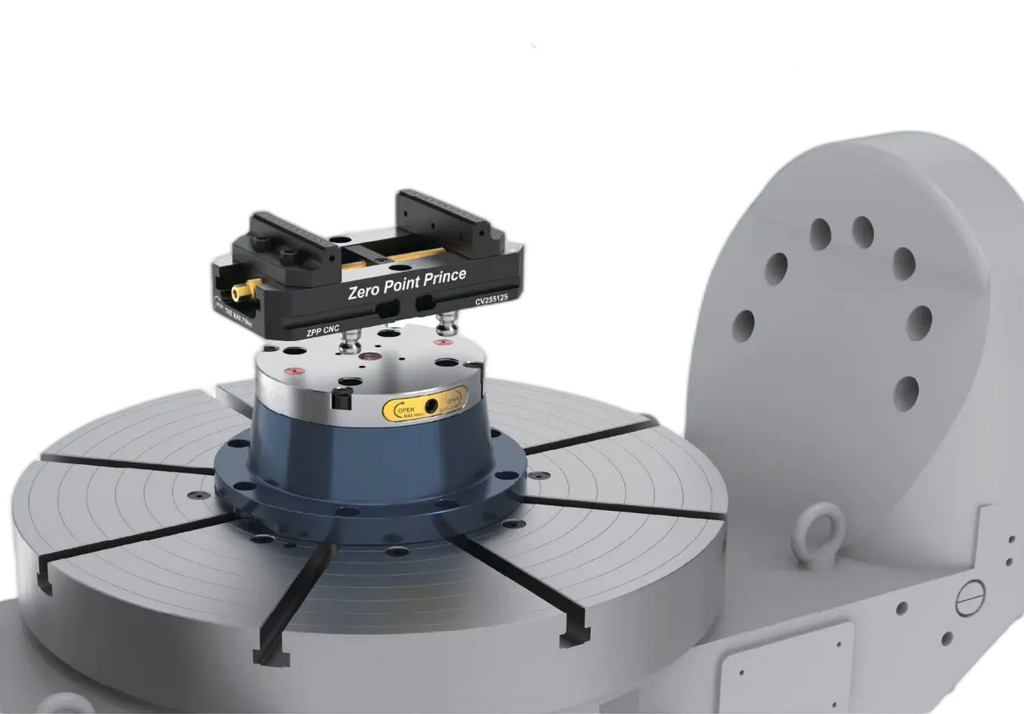

5‑axis machining requires a rigid, low‑profile fixture that keeps the workpiece close to the rotation center without interfering with tool paths. The TS96‑276 circular pyramid fixture delivers exactly that – a D276×120 mm unit with a hardened stainless steel clamping ring on a lightweight aluminum base. Weighing 16.5 kg, it provides 20 kN clamping force and a wide, uninterrupted circular mounting surface. Ideal for 5‑axis trunnions, rotary tables, and zero‑point pallet systems where stability and clearance are critical.

Core Benefits – Quick & Clear

•
  Circular Pyramid Design
  Smooth, round footprint eliminates corner interference – maximizes swing clearance on 5‑axis trunnions and rotary tables. The raised pyramid geometry provides excellent chip evacuation and easy part access.

•
  20 kN Clamping Force
  Powerful, repeatable clamping for medium to large pallets, fixture plates, or custom workholding – holds parts rigidly during heavy 5‑axis contouring or high‑speed finishing.

•
  Hybrid Construction
  Hardened stainless steel clamping surfaces + aluminum base – reduces weight to only 16.5 kg while maintaining wear resistance, corrosion protection, and rigidity.

•
  5‑Axis Optimized

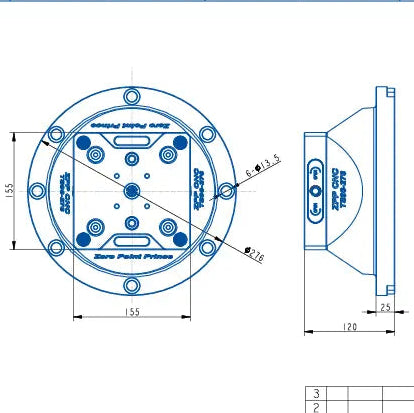

  Low 120 mm height preserves Z‑axis stroke. Wide D276 mm footprint provides a stable platform. 8×M12 mounting holes for secure attachment to trunnion tables or zero‑point pallets.


Product Specifications
