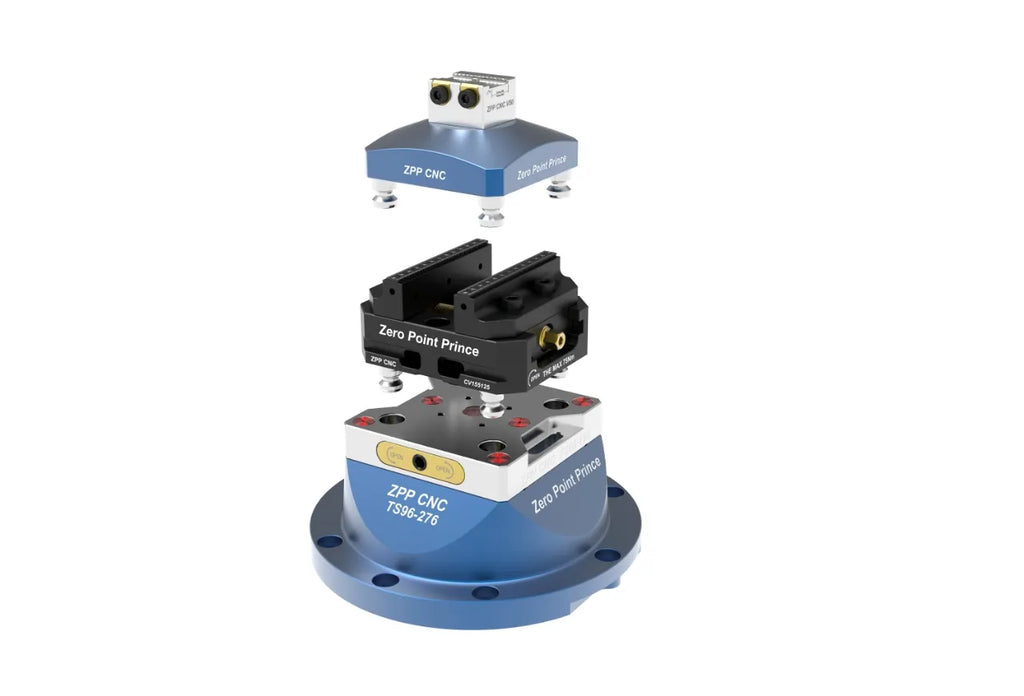

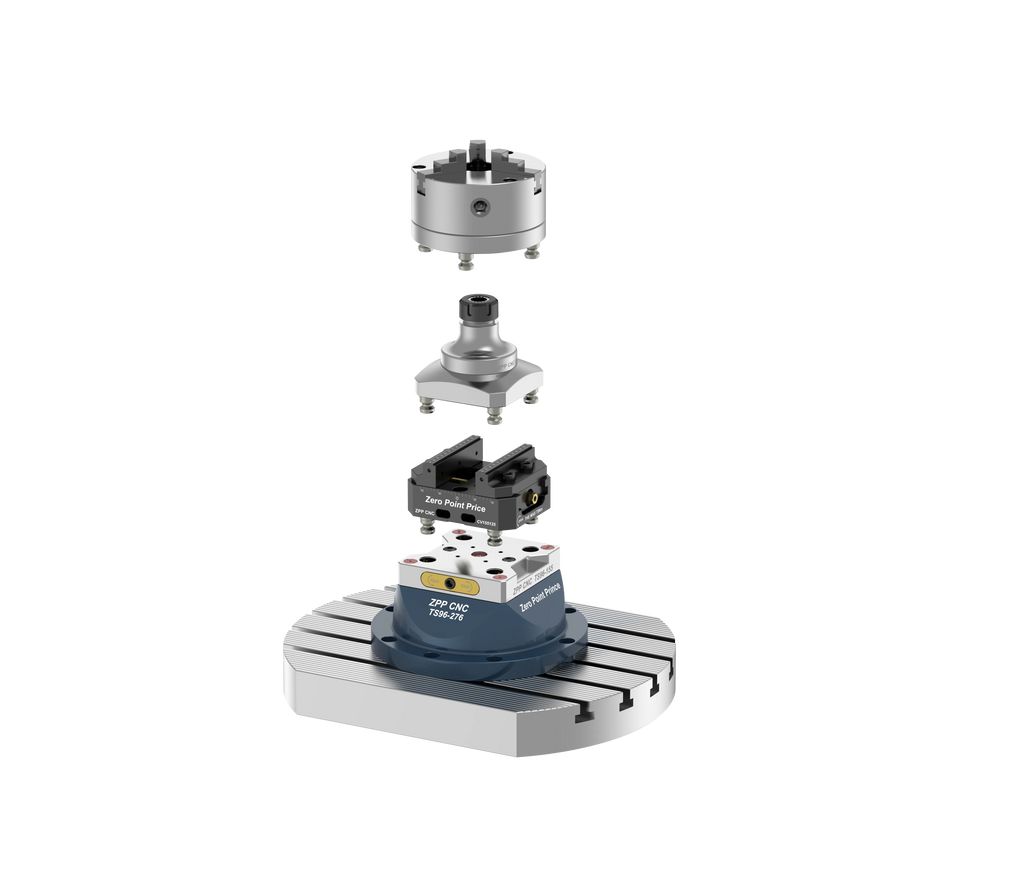

Maximize 5-Axis Machining Efficiency with the ZPP TS96-276 (Square) Pyramid Zero Point Fixture

In high-volume automated 5-axis machining scenarios for aerospace, mold manufacturing, and precision parts sectors, the need for rapid workpiece indexing and consistent clamping performance across multiple stations calls for a reliable workholding solution with expanded clamping versatility. The ZPP TS96-276 (Square) pyramid zero point fixture is engineered for 5-axis machining centers and multi-station automated lines that demand fast workpiece cycling, precise angular repeatability, and a sturdy footprint to support heavy-duty machining.

With its square station design, it enables efficient clamping of workpieces, eliminating the need for intermediate indexing operations. Its well-designed structure avoids machining interference, making it a perfect fit for industries that require high-throughput, high-precision 5-axis production with minimal setup variation.

Built for Heavy-Duty Stability in 5-Axis Machining
Whether used in a standalone 5-axis machining cell or a fully automated multi-station CNC system, the TS96-276 delivers exceptional rigidity and repeatability. Manufactured from Hardened Stainless Steel + Aluminum Base, it eliminates deformation even under extreme clamping forces, ensuring consistent performance throughout long production runs.

Its 20KN clamping force ensures secure workpiece holding during complex 5-axis machining operations, while the 8-M12 mounting holes provide stable installation on various machining platforms. This fixture is an ideal choice for palletized workflows in high-throughput 5-axis machining environments.

Technical Specifications
