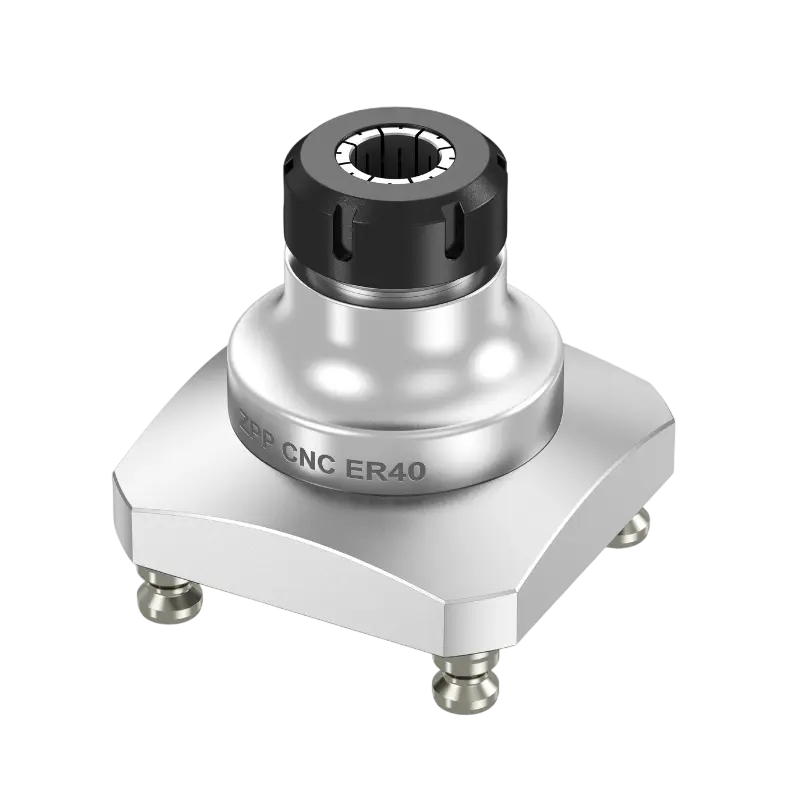

ZPP TS96-ER40 zero point collet chuck for high-precision CNC tool and workholding.

TS96-ER40 ER zero point chuck(130*130*116mm)

$400.00
Skip to product information
ZPP TS96-ER40 zero point collet chuck for high-precision CNC tool and workholding.
  • ZPP TS96-ER40 zero point collet chuck for high-precision CNC tool and workholding.
  • TS96-ER40 ER zero point chuck(130*130*116mm)
  • TS96-ER40 ER zero point chuck(130*130*116mm)
TS96-ER40 ER zero point chuck(130*130*116mm)

TS96-ER40 ER zero point chuck(130*130*116mm)

Parameter Value
Model TS96-ER40
Dimensions 130 × 130 × 116 mm
Material Hardened Stainless Steel
Clamping Range 3 – 26 mm
Weight 5.8 kg
Collet Type ER40 (not included)
Interface Type 96 (TS96 pull studs, sold separately)

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Broad 3‑26 mm Clamping Range
    One chuck handles everything from small electrode blanks to medium shafts and round parts. Eliminate collet changes between jobs – just load, clamp, and machine.
  • ER Collet System Integration
    Uses standard ER40 collets (not included) for fast, repeatable round‑part clamping. Consistent runout and gripping force across the full diameter range.
  • Type‑96 Zero‑Point Ready
    Designed for TS96/PM96/AP96 series zero‑point systems (M10 pull studs – sold separately). Swap the entire chuck and pallet assembly in seconds with <0.005 mm repeatability – transition from secondary ops to finishing with zero setup time lost.
  • 5‑Axis Interference‑Free Design
    Compact 130×130 mm footprint, 116 mm height – minimizes 5‑axis interference, allowing your machine to reach complex angles without collision risk. Maximizes work envelope and spindle uptime.
  • Hardened Stainless Steel Construction
    Rigid, wear‑resistant, and corrosion‑resistant – withstands harsh machining environments, coolant, and chips. Maintains sub‑micron repeatability over thousands of cycles.
  • Lightweight for Palletization
    Only 5.8 kg – reduces inertia on rotary tables and 5‑axis trunnions. Perfect for high‑density pallet pools where weight and space are at a premium.
applicable scene

Key Use Cases

  • Medical Prototyping & Production – Clamp 3‑26 mm titanium or stainless rods for implants, instruments, and surgical guides – one chuck covers many diameters.
  • Aerospace Small Parts – Hold valve stems, bushings, or fuel system components – zero‑point changeover between different part families in seconds.
  • Electrode & Mold Manufacturing – Secure round electrode blanks for EDM – broad range eliminates collet swapping, while zero‑point repeatability ensures perfect registration.

Seamless Versatility – One Chuck, Infinite Possibilities

The TS96‑ER40 ER zero point chuck combines a broad 3‑26 mm clamping range, Type‑96 zero‑point speed, and hardened stainless steel durability – less changeover time, more spindle uptime, and zero compromise on precision.
Downloads
File Name Size
3D Model 154.12 kB Download Now
