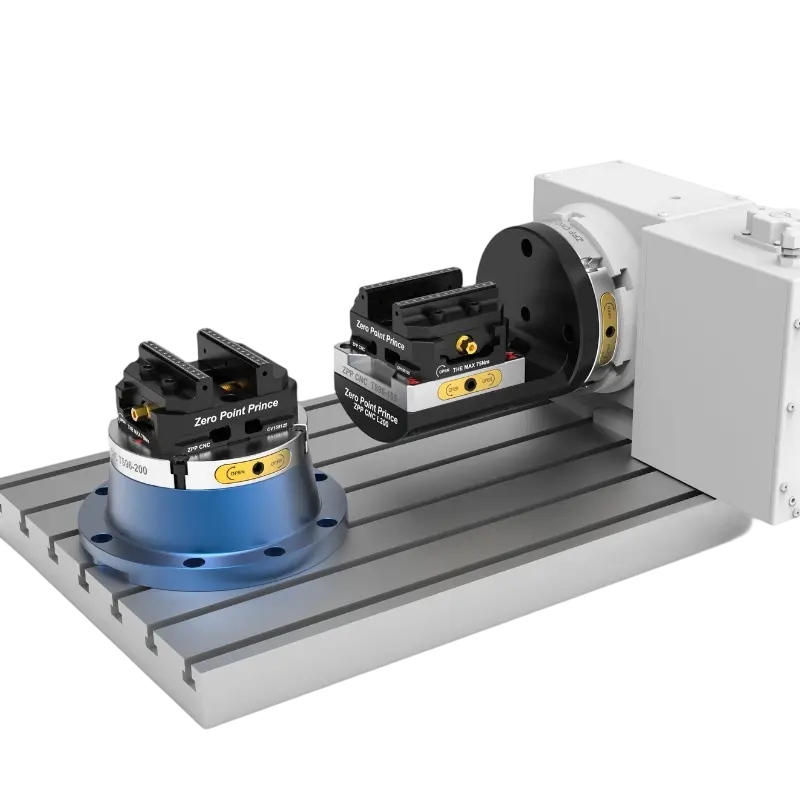

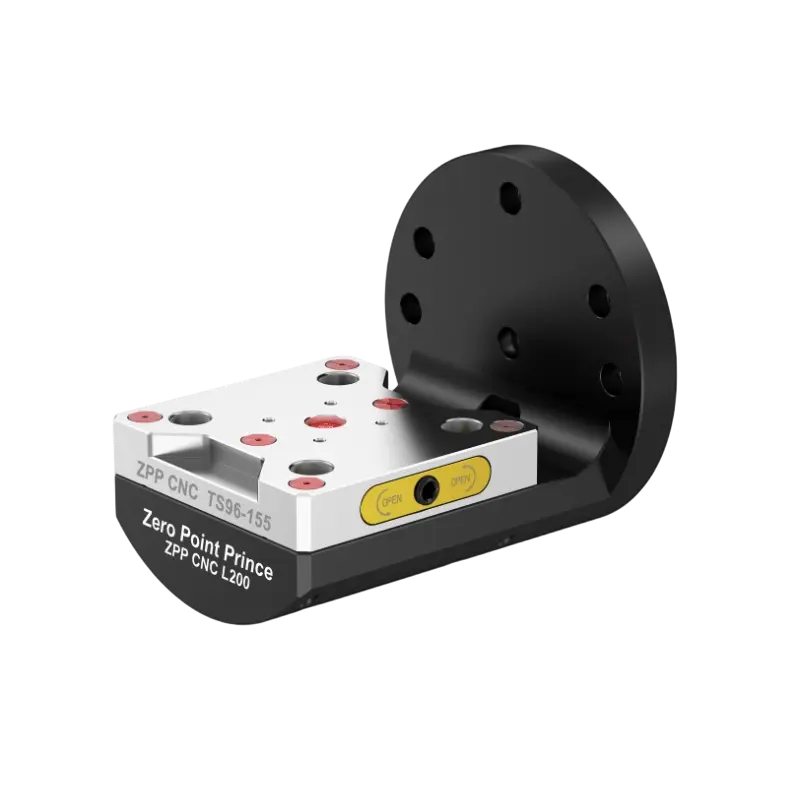

L200 Modular Combination

Expand Your 4th Axis Capabilities with ZPP L-Plates

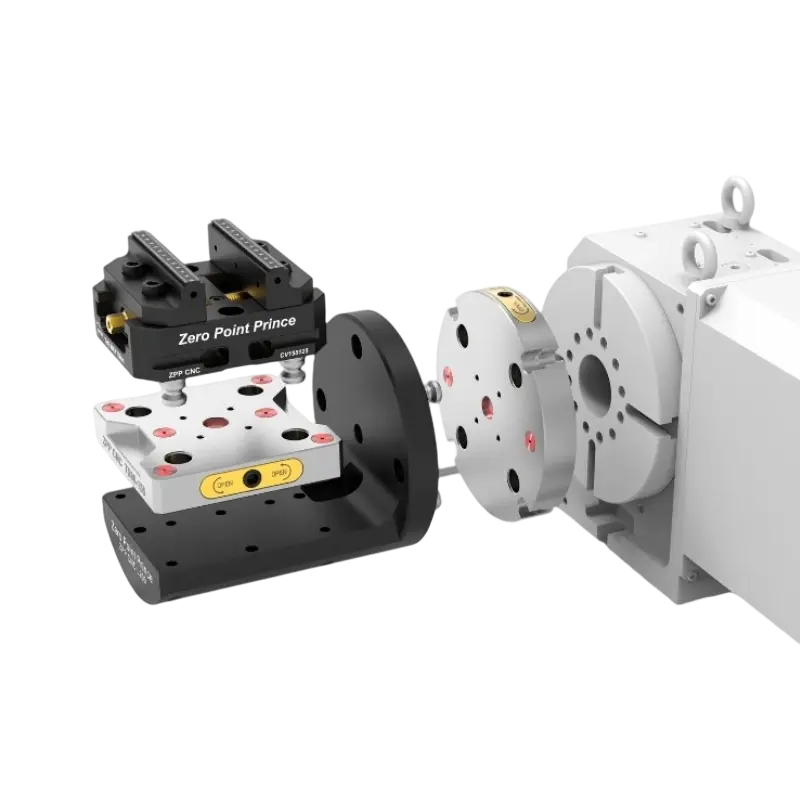

The ZPP four-axis L-plate is designed to transform your standard rotary table into a high-efficiency palletization hub. By providing a precision-ground 90-degree mounting surface, this L-plate allows you to utilize Type 96 zero point fixtures on your 4th axis. This is the ideal solution for Aerospace and Automotive shops that need to machine multiple faces of a part in a single setup, drastically reducing setup time and improving part-to-part repeatability.

Rigid Construction for Heavy-Duty Rotary Machining

Stability is the biggest challenge in 4-axis workholding. The ZPP L-plate is cast from High-Tensile Ductile Iron or Hardened Steel to provide superior vibration dampening and thermal stability. Featuring a standard 96mm grid, it integrates perfectly with your existing cnc zero point system, allowing for instant swaps between your machine bed and your rotary axis. The low-profile design minimizes 5-axis interference (when used on 5-axis rotaries) and ensures maximum tool clearance for complex radial tool paths.
