Core Benefits – Quick & Clear

• Double‑Station Capable / Palletization Ready

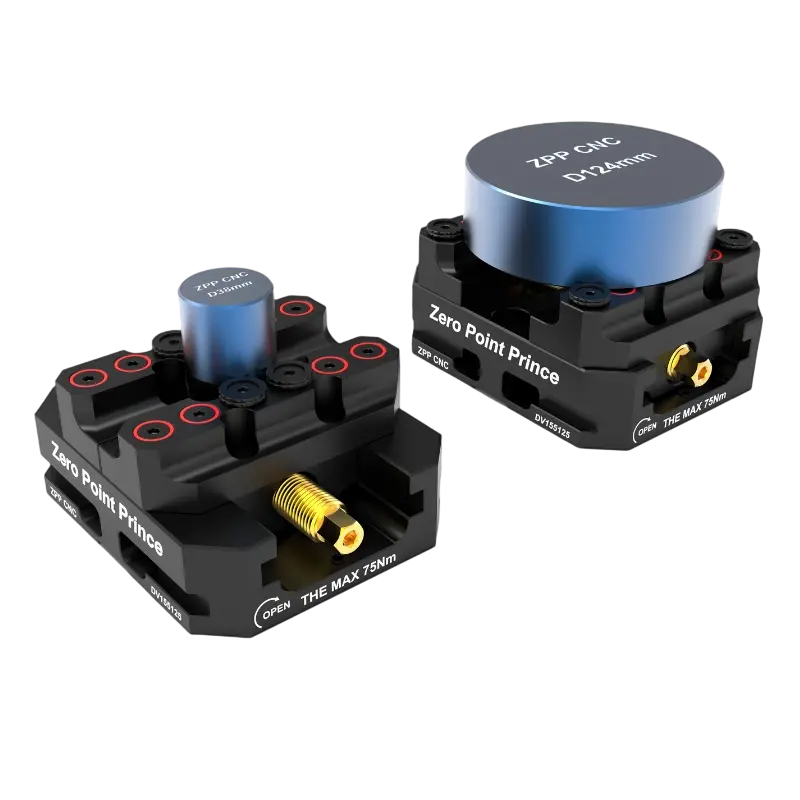

  The DV155125 is designed for dual‑station workflows – pre‑load a second pallet offline, swap fixtures via zero‑point in seconds, and keep your spindle cutting continuously. Maximize uptime, reduce idle time.
• Zero‑Point Compatibility
  Integrates seamlessly with standard zero‑point systems (pull studs – sold separately). Swap the entire vise and pallet assembly in seconds with <0.005 mm repeatability – no re‑indication, no alignment tools.
• Unique Clamping Range – Ø38‑138 mm
  Handles round stock, shafts, and tubular components from 38 mm to 138 mm diameter, as well as square billets. One vise covers many part geometries – ideal for aerospace tubes, mold cores, and cylindrical blanks.
• 20 kN Clamping Force @ 75 Nm
  Powerful, repeatable clamping for medium‑to‑large workpieces – holds parts rigidly during heavy roughing and high‑speed finishing in steel, titanium, and alloys.
• 5‑Axis Interference‑Free Geometry
  Optimized 74.1 mm low profile and streamlined body give cutting tools maximum access to the workpiece – prevents collisions during complex 5‑axis tool paths.
• Hardened Steel Construction
  Rigid, wear‑resistant, and durable – eliminates deflection and maintains repeatability across thousands of cycles.
