Universal vise
  • Universal vise
Universal vise

Universal vise

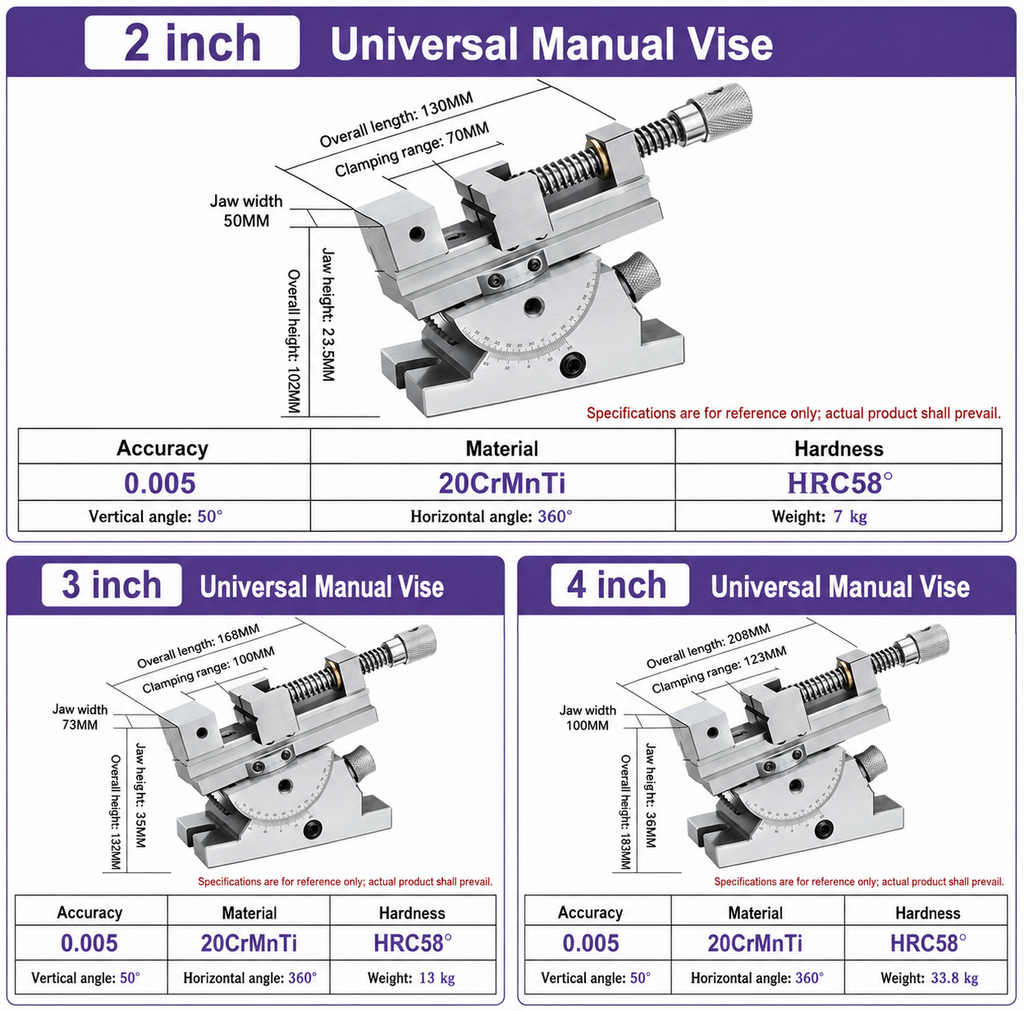

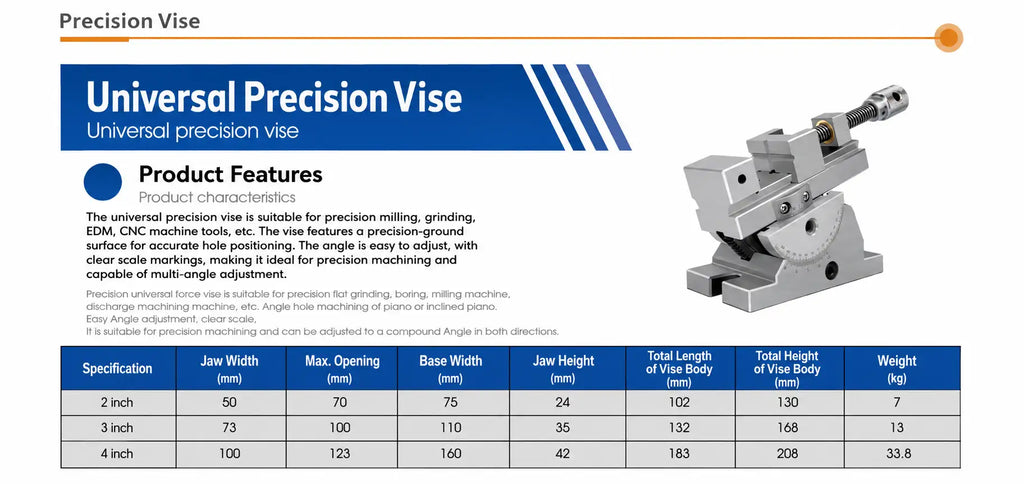

Parameter Value
Product Type Universal Milling Vise
Length 130 mm
Jaw Width 50 mm
Jaw Opening 0 – 70 mm
Jaw Height 23.5 mm
Material Stainless Steel (HRC 58°)
Vertical Tilt Angle 0 – 50°
Horizontal Rotation 360°
Positioning Accuracy 0.01 mm
Weight 7 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Multi‑Axis Angle Adjustment
    Vertical tilt: 0‑50° / Horizontal rotation: 360°. Position the workpiece at compound angles without multiple fixtures or re‑clamping – machine chamfers, undercuts, and inclined features in one setup.
  • High Rigidity & Stable Clamping
    High‑strength stainless steel, hardened to HRC 58°, minimizes vibration and ensures consistent machining accuracy even under demanding cutting conditions. Eliminates deflection.
  • Precise Positioning – 0.01 mm Accuracy
    Integrated angle scales and secure locking mechanism provide repeatable angular positioning with 0.01 mm linear accuracy. Ideal for high‑precision work.
  • Compact & Interference‑Free
    130 mm length, 23.5 mm jaw height – fits easily on 5‑axis trunnions, rotary tables, or tight machine work envelopes. Compact design enhances tool accessibility.
  • Versatile Jaw Opening
    Jaw opening 0‑70 mm, jaw width 50 mm – handles small blocks, round stock, and medium components. Suitable for both standard VMCs and advanced multi‑axis machining.
applicable scene

Key Use Cases

  • Aerospace & Medical Prototyping – Machine complex brackets, implants, or housings with inclined holes and angled surfaces – one vise, multiple angles, one setup.
  • Precision Engineering & Toolrooms – Quickly switch between vertical and horizontal workholding orientations without changing fixtures – ideal for R&D and small‑batch production.
  • Multi‑Axis Machining Centers – Mount on a 5‑axis trunnion for even greater flexibility – the universal vise adds compound angle capability to any mill.

Unlock Multi‑Angle Precision – One Vise, Infinite Positions

The ZPP Universal Milling Vise combines 0‑50° tilt, 360° rotation, and 0.01 mm accuracy – fewer setups, faster changeovers, and zero compromise on rigidity.
