TO96-276 Type 96 Zero Point Tower

The ZPP TO96-276 is a Type 96 zero point tower designed for 5-axis CNC workholding and elevated multi-fixture setups. Its vertical configuration provides additional working height and a repeatable zero point interface for compatible fixtures.

Key Benefits

Type 96 zero point interface: supports compatible zero point workholding fixtures.
5-axis workholding: helps create elevated setups for multi-face CNC machining.
Rigid construction: hardened stainless steel with an aluminum base.
Flexible mounting: 8 × M12 mounting holes for machine and fixture integration.

Specifications

Parameter	Detail
Model	TO96-276
Dimensions	D276 × 120 mm
Material	Hardened Stainless Steel + Aluminum Base
Weight	15.6 kg
Mounting Holes	8 × M12
Clamping Force	20 kN

Typical Applications

Suitable for 5-axis machining, elevated zero point workholding, modular fixture setups, and applications that require additional tool access around a raised workholding platform.

Explore the CNC zero point and 5-axis workholding collection.

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.

Core Benefits – Quick & Clear

Elevated Workholding for 5‑Axis Clearance
120 mm height lifts the workpiece away from the table – allows steep tool angles, long reach tools, and deep‑cavity machining without spindle head or tool holder collisions.
Type 96 Zero‑Point Interface (Top & Bottom)

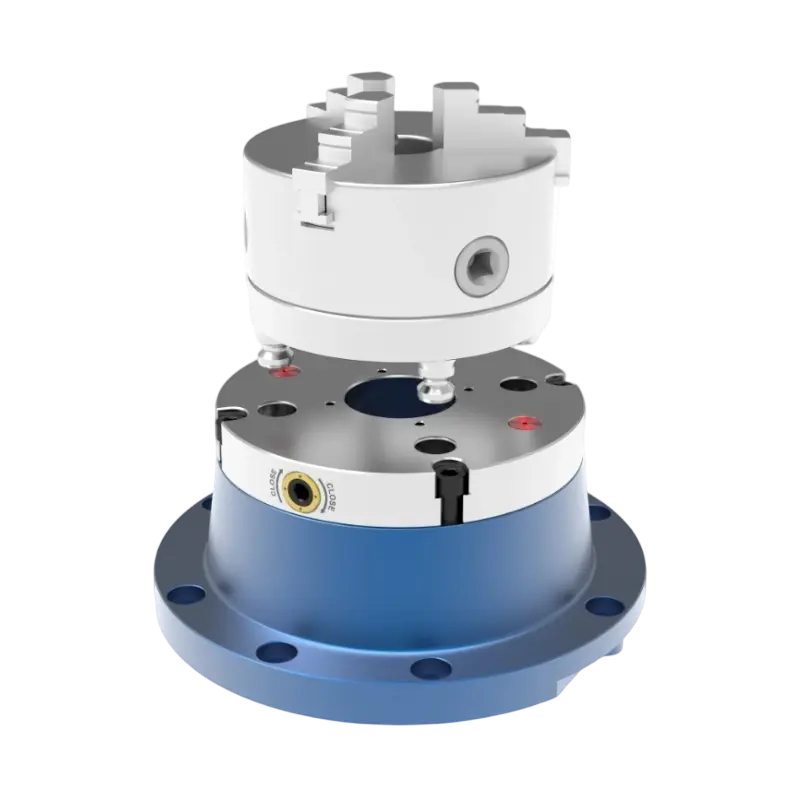

Precision‑ground TS96 pull stud interfaces on both faces. Mount a pallet, vise, or fixture on top – lock the tower onto a zero‑point base below. Swap complete tower assemblies in seconds with <0.005 mm repeatability.
20 kN Clamping Force
Massive holding power ensures vibration‑damped rigidity for aggressive roughing, while maintaining sub‑micron accuracy for finishing passes – height does not compromise stability.
Modular Stackable Design
Stack multiple TO96‑276 towers to achieve even greater elevation. Integrate instantly into your existing Type‑96 zero‑point system without manual re‑indication.
Thermally Stable Hybrid Construction
Hardened stainless steel locking components + lightweight aluminum base – minimizes thermal expansion and reduces weight while maintaining rigidity.

Key Use Cases

Aerospace Structural Components – Elevate a pallet to clear deep pockets, ribs, and spars – machine complex 5‑axis features without table collisions.
Deep‑Cavity Medical Molds – Raise the mold base for long ball end mills to reach extreme depths – maintain rigidity and accuracy.
High‑Mix 5‑Axis Cells – Keep multiple towers pre‑configured at different heights, each with a dedicated fixture – swap via zero‑point in seconds.

Elevate, Clear, Machine – Unlock Your 5‑Axis Potential

The TO96‑276 zero point tower combines 20 kN clamping force, Type‑96 modularity, and a stable 120 mm rise – faster changeovers, perfect tool clearance, and zero compromise on rigidity.
