Core Benefits – Quick & Clear

• Sub‑10‑Second Changeovers
  Quick‑change design – unload one pallet, load the next, and lock in seconds. No edge finding, no dial indicators, no re‑indication. Operators focus on making chips, not setting up.
• Standard Type 96 Interface
  96mm pull stud pitch (compatible with TS96, PM96, AP96, TO96 series). Mount the TO9652‑200 onto any Type‑96 zero‑point clamp – retrofits easily into existing workholding systems.
• 20 kN Clamping Force
  Massive holding power ensures rock‑solid stability during high‑feed milling, heavy roughing, and 5‑axis contouring in aerospace alloys, medical grades, and tool steels.
• Ultra‑Low Profile – Only 30 mm High
  Low‑height design keeps the workpiece close to the machine table or trunnion – minimizes 5‑axis interference, maximizes Z‑axis stroke, and provides full access to complex part geometries.
• Hardened Stainless Steel Construction
  Rigid, wear‑resistant, and corrosion‑resistant – eliminates deflection under heavy side‑loading, maintains sub‑micron repeatability over thousands of cycles.

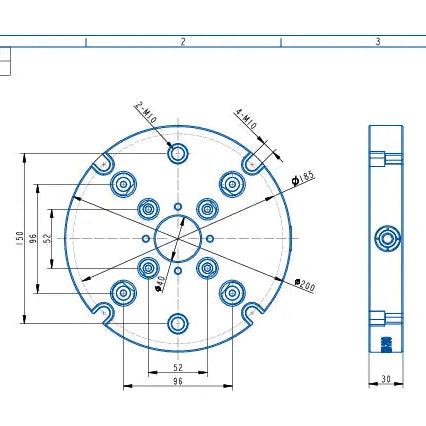

• Flexible Mounting
  6×M10 mounting holes (D200 mm circular pattern) – securely attach vises, chucks, fixture plates, or custom workholding to the plate.
