ZPP modular Type 96 zero point tower extension for customizable 5-axis CNC workholding heights.

TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)

$1,500.00
Skip to product information
ZPP modular Type 96 zero point tower extension for customizable 5-axis CNC workholding heights.
  • ZPP modular Type 96 zero point tower extension for customizable 5-axis CNC workholding heights.
  • TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)
  • TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)
  • TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)

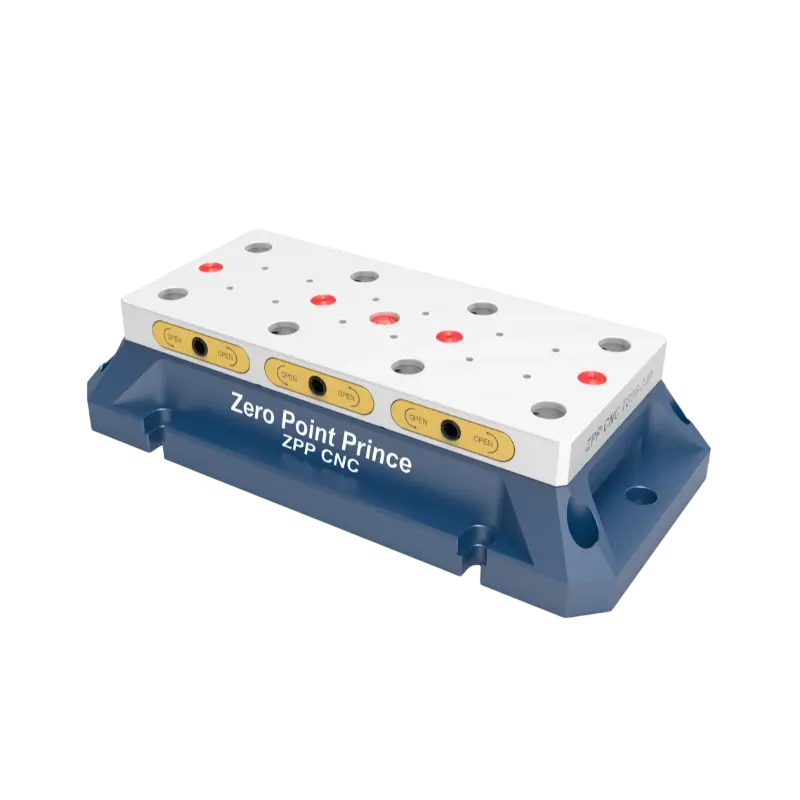

TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)

TS96-340BS Zero Point Tower (Type 96)(415*200*100mm)

$1,500.00
Parameter Detail
Model TS96-340BS
Dimensions 415 × 200 × 100 mm
Material Hardened Stainless Steel + Aluminum Base
Weight 23.5 kg
Mounting Holes 10 × M12
Locking Force 20 kN

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Modular Stackable Design
    Stack two or more TS96‑340BS towers to reach custom heights – perfect for deep‑cavity aerospace components, energy sector housings, or any part requiring extra tool clearance. Add or remove towers as job requirements change.
  • Type 96 Zero‑Point Interface (Top & Bottom)
    Precision‑ground TS96 pull stud interfaces on both faces. Mount a pallet, vise, or fixture on top – lock the entire stack onto a zero‑point base below. Swap complete tower assemblies in seconds with <0.005 mm repeatability.
  • 20 kN Locking Force
    Massive clamping force ensures vibration‑damped rigidity for aggressive roughing, while maintaining sub‑micron accuracy for final finishing passes.
  • Thermally Stable Hybrid Construction
    Hardened stainless steel locking components + aluminum base – minimizes thermal expansion, ensuring long‑term positional accuracy even in fluctuating shop temperatures.
  • Secure Mounting
    10×M12 mounting holes provide a solid foundation for heavy pallets and stacked configurations. Weight: 23.5 kg.
applicable scene

Key Use Cases

  • Aerospace Deep‑Cavity Parts – Stack two towers to raise a pallet 200 mm, allowing long reach tools to access deep pockets without spindle head collision.
  • Energy Sector Housings – Achieve the exact clearance needed for large valve bodies or turbine components – modular height adapts to each job.
  • High‑Mix 5‑Axis Cells – Pre‑configure multiple tower stacks at different heights, each with a dedicated fixture. Swap entire stacks via zero‑point in seconds.

Build the Height You Need – Stackable, Rigid, Repeatable

The TS96‑340BS modular zero point tower gives you customizable workholding height, Type 96 compatibility, and 20 kN locking force – faster changeovers, perfect tool clearance, and zero compromise on rigidity.
