ZPP square zero point quick-change plate for high-precision CNC mill workholding.

TS96-155 Square zero point quick-change plate(155*155*30mm)

$550.00
Skip to product information

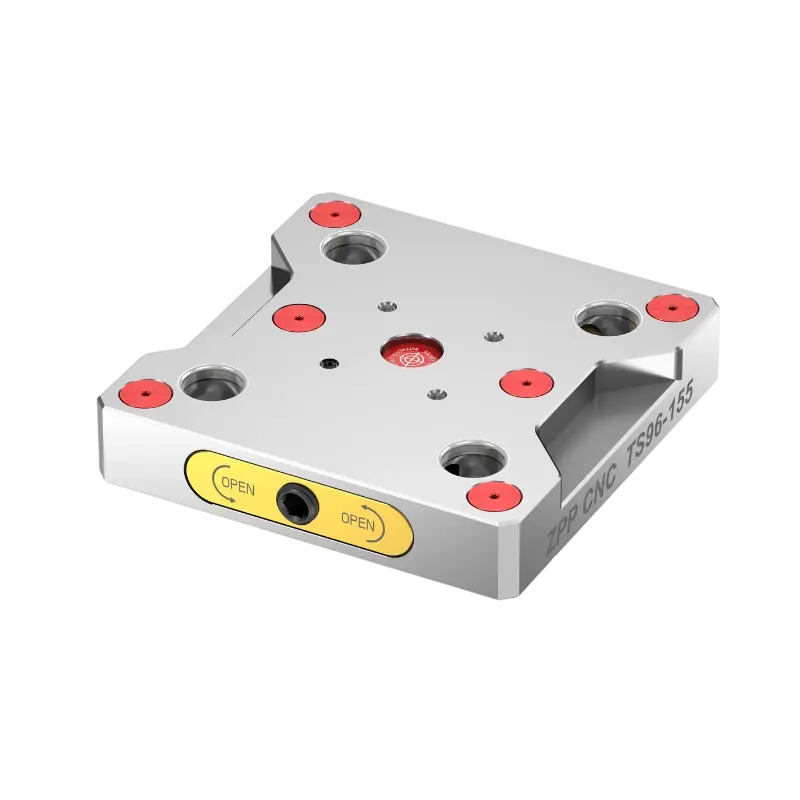

ZPP square zero point quick-change plate for high-precision CNC mill workholding.
  • ZPP square zero point quick-change plate for high-precision CNC mill workholding.
  • TS96-155 Square zero point quick-change plate(155*155*30mm)
  • TS96-155 Square zero point quick-change plate(155*155*30mm)
  • TS96-155 Square zero point quick-change plate(155*155*30mm)
TS96-155 Square zero point quick-change plate(155*155*30mm)

TS96-155 Square zero point quick-change plate(155*155*30mm)

$550.00
Parameter Detail
Model TS96-155
Dimensions 155 × 155 × 30 mm
Material Hardened Stainless Steel
Weight 4.8 kg
Mounting Holes 6 × M10
Locking Force 20 kN
Special Feature Precision through‑hole for center access
ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Through‑Hole Design – Unrestricted Center Access
    Precision‑ground center opening allows bar stock to pass through the spindle, wire to thread through for EDM, or hydraulic/pneumatic lines to reach the workpiece. No blockage, no compromises.
  • Type 96 Zero‑Point Compatible
    Standard 96mm pull stud pitch – integrates seamlessly with TS96, PM96, AP96, and TO96 series clamps. Swap plates in seconds with <0.005 mm repeatability.
  • 20 kN Clamping Force
    Massive holding power for heavy‑duty machining – bar feeding, wire EDM, or 5‑axis contouring. Rock‑solid stability even with an open center.
  • Ultra‑Low Profile – Only 30 mm High
    Minimizes Z‑axis loss and 5‑axis interference – keeps the workpiece close to the machine table or trunnion for maximum rigidity.
  • Hardened Stainless Steel Construction
    Rigid, wear‑resistant, and corrosion‑resistant – eliminates deflection under side loading, maintains sub‑micron repeatability over thousands of cycles.
  • Flexible Mounting
    6×M10 mounting holes – securely attach vises, chucks, or custom fixtures around the center opening.
applicable scene

Key Use Cases

  • Bar Feeding on CNC Lathes/Mills – Pass bar stock directly through the plate – machine long parts with zero‑point quick change capability.
  • Wire EDM – Thread wire through the center for through‑part cutting – maintain sub‑micron positioning with repeatable pallet changeover.
  • Rotary Tables & 5‑Axis Trunnions – Run hydraulic or pneumatic lines through the center to power chucks or clamps mounted on the plate – clean, protected routing.
  • Aerospace & Medical Shops – Combine center access with high‑speed palletization – ideal for complex parts that require through‑spindle coolant or centerline workholding.

Unrestricted Access, Uncompromised Repeatability

The TS96‑155 through‑hole zero point plate gives you a clear center axis, Type‑96 speed, and 20 kN clamping force – bar feed, wire EDM, or hydraulic routing, all without losing zero‑point precision.
Downloads
File Name Size
3D Model 156.28 kB Download Now
