L200 Modular Combination(D198*235mm)

L200 Modular Combination(D198*235mm)

$1,050.00
Skip to product information
L200 Modular Combination(D198*235mm)
  • L200 Modular Combination(D198*235mm)
  • L200 Modular Combination(D198*235mm)
  • L200 Modular Combination(D198*235mm)
  • L200 Modular Combination(D198*235mm)
L200 Modular Combination(D198*235mm)

L200 Modular Combination(D198*235mm)

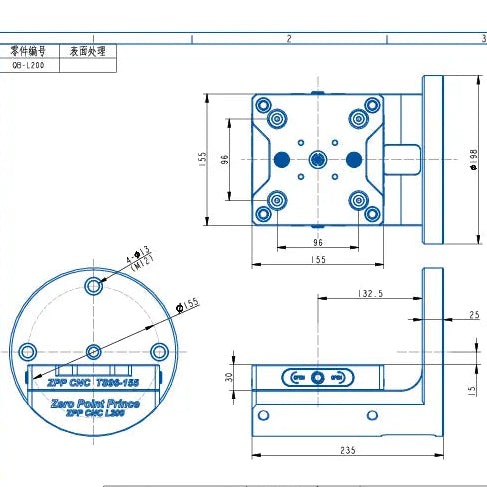

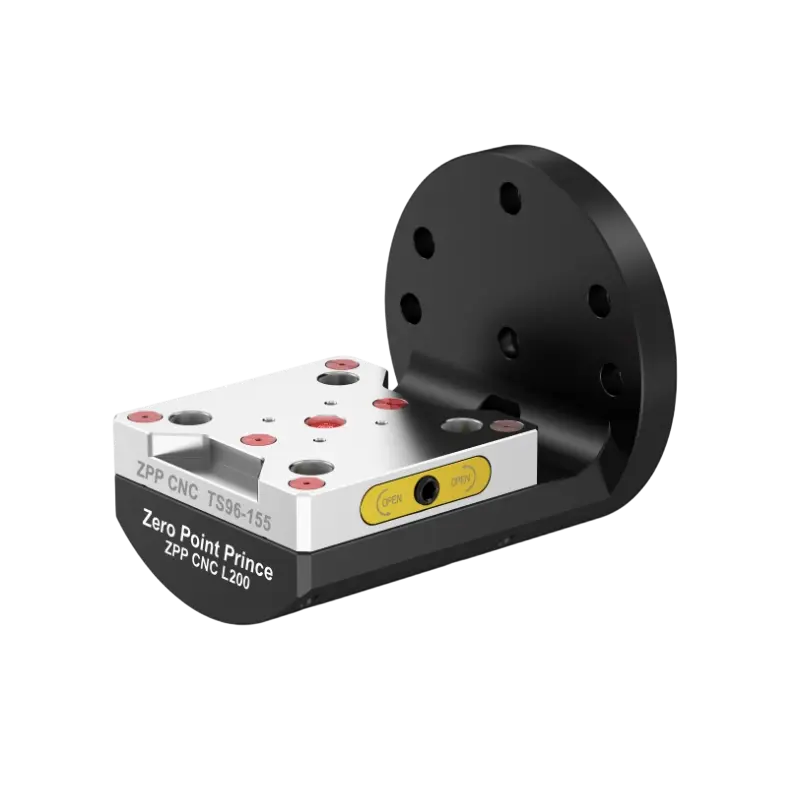

Parameter Detail
Model L200 (L Plate)
Dimensions D198 × 235 mm
Material Hardened Steel
Weight 20.6 kg
Application Range For ZPPCNC

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Eliminates 5‑Axis Interference
    The L‑shape design keeps the workpiece away from the rotary table centerline – tools access part ends, sides, and undercuts without colliding with the table or trunnion. Complex multi‑sided machining, one setup.
  • Rigid Vertical Mounting Surface
    235 mm vertical face provides a stable platform for vises, tombstones, or custom fixtures. Machine part ends, drill cross‑holes, or finish undercuts with the rigidity of a fixed angle plate.
  • Heavy‑Duty Vibration Damping
    20.6 kg hardened steel construction absorbs cutting harmonics – delivers exceptional surface finishes in aerospace alloys, tool steels, and medical grades. Eliminates chatter during high‑feed milling.
  • Zero‑Point Ready (ZPPCNC Ecosystem)
    Designed for integration with ZPPCNC zero‑point systems. Add compatible pull studs to the base – swap the entire L‑plate with attached fixtures in seconds, maintaining <0.005 mm repeatability.
  • Large Workholding Footprint
    D198 mm circular mounting pattern provides a stable foundation. Accommodates large vises, multiple fixtures, or custom pallets for high‑throughput palletization.
applicable scene

Key Use Cases

  • Rotary Table & 4th Axis Machining – Mount a vise on the vertical face to machine part ends, cross‑holes, or undercuts without re‑fixturing – ideal for shafts, brackets, and hydraulic components.

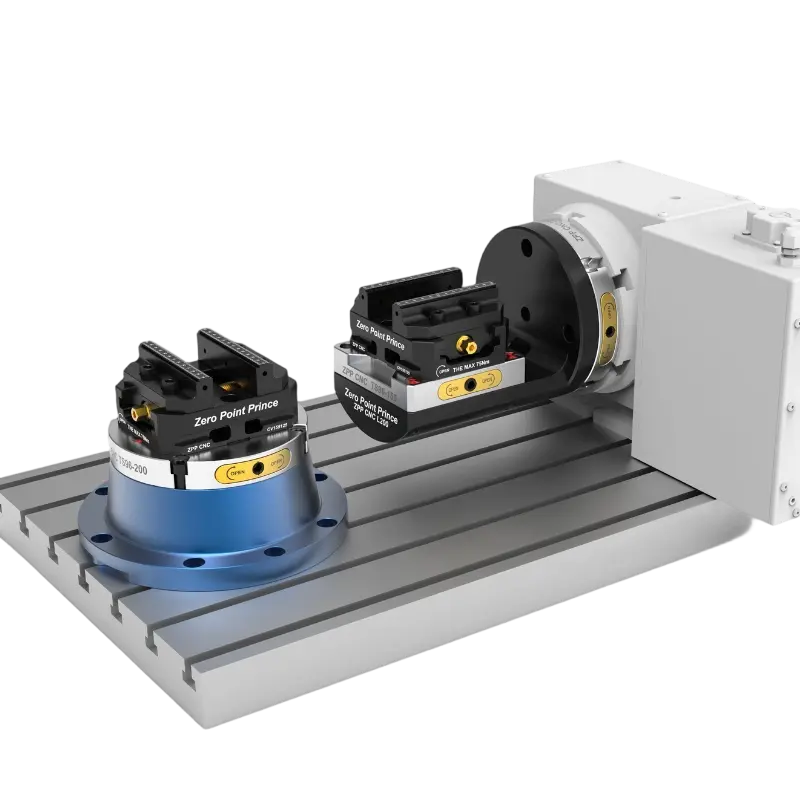

  • 5‑Axis Trunnion Clearance – Attach the L200 to a zero‑point pallet on a 5‑axis trunnion – the vertical orientation keeps the workpiece clear of the rotation center, eliminating collisions during complex contouring.

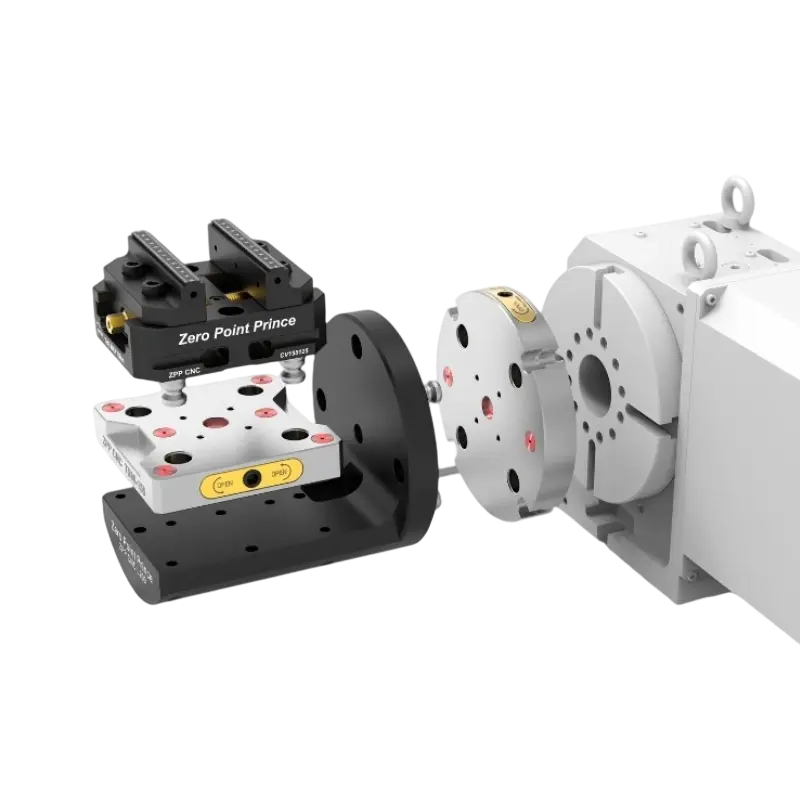

  • Palletized High‑Mix Production – Pre‑mount different vises or fixtures on multiple L200 plates, each with pull studs. Swap entire L‑plate assemblies in seconds via zero‑point – change jobs faster than changing a vise.

Expand Your Multi‑Axis Potential – One L‑Plate, Infinite Setups

The L200 Four‑Axis L‑Plate combines a rigid 235 mm vertical face, 20.6 kg vibration‑damping mass, and ZPPCNC zero‑point compatibility – eliminate interference, improve surface finishes, and maximize spindle uptime.
Downloads
File Name Size
3D Model 342.49 kB Download Now
