Name: TS96-V50 Dovetail Fixture(124*124*70mm)
Brand: Zero Point Prince
SKU: TS96-V50
Price: 260.00 USD
Availability: InStock

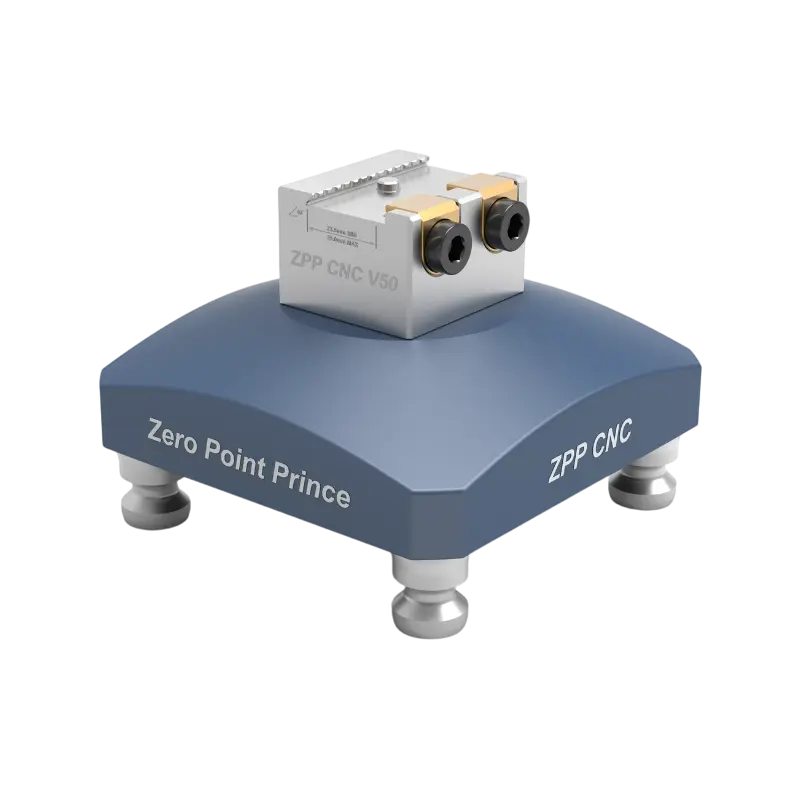

ZPP dovetail fixture for 5-axis CNC workholding and zero point palletization.

TS96-V50 Dovetail Fixture(12412470mm)

$260.00

TS96-V50 Dovetail Fixture(124*124*70mm)

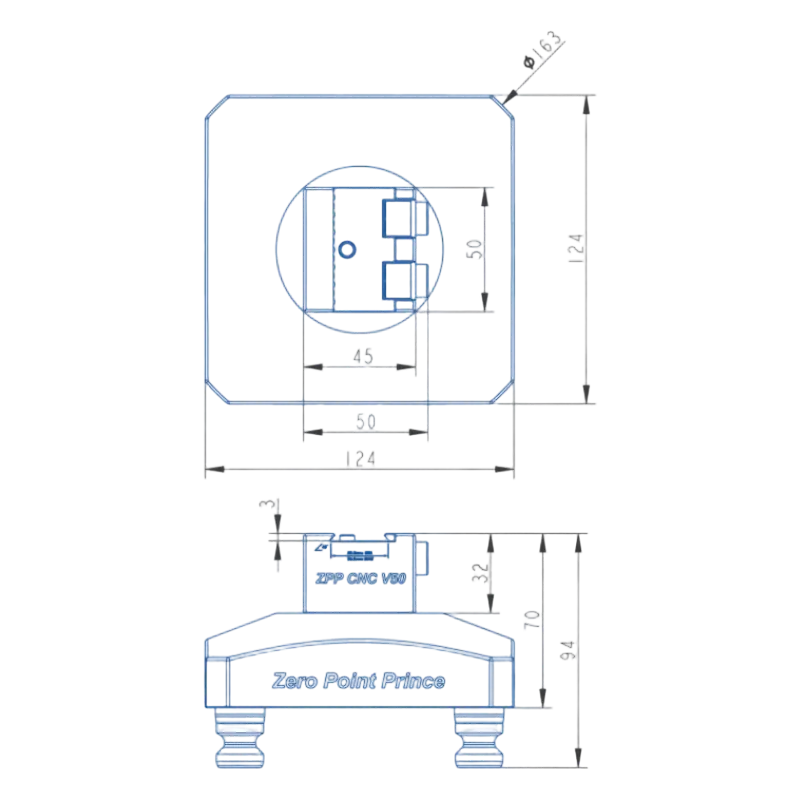

Parameter	Detail
Model	TS96-V50 (Dovetail Fixture)
Dimensions	124 × 124 × 70 mm
Material	Hardened Stainless Steel + Aluminum Base
Clamping Range	23.5 – 25 mm
Dovetail Angle	45°
Locking Force	20 kN
Weight	2.0 kg

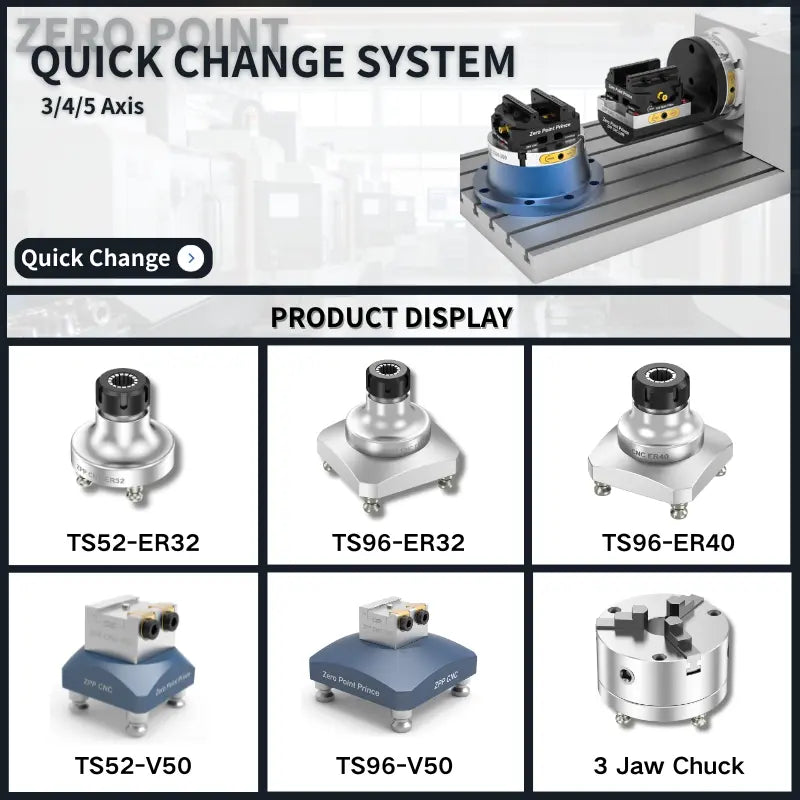

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.

Core Benefits – Quick & Clear

Eliminates 5‑Axis Interference
Low‑profile dovetail design keeps the workpiece elevated and the fixture body out of the tool path – access five faces of the part without collisions. Machine steep undercuts, deep cavities, and complex contours that would be impossible with a standard vise.
45° Dovetail Clamping – Minimal Stock Waste
Clamps on a narrow dovetail edge (23.5‑25 mm range). Maximize material utilization – no need for large sacrificial tabs or extra stock. Ideal for near‑net‑shape aerospace and medical forgings.
20 kN Locking Force
Powerful, rigid clamping for high‑feed milling, hard milling, and finishing in titanium, stainless, and exotic alloys. Push your feeds and speeds to the limit without part movement.
TS96 Zero‑Point Ready
Designed for Type‑96 (TS96) zero‑point systems. Add pull studs to the base for sub‑minute changeovers with <0.005 mm repeatability – swap entire dovetail fixtures between jobs faster than changing a vise.
Lightweight Hybrid Construction
Hardened stainless steel dovetail head + aluminum base – only 2.0 kg. Reduces inertia on 5‑axis trunnions while maintaining wear resistance and rigidity.

Key Use Cases

Aerospace Structural Parts – Clamp near‑net‑shape brackets, ribs, or housings – machine all five accessible faces in one 5‑axis cycle without repositioning.
Medical Implants & Instruments – Hold small, complex titanium or stainless blanks – dovetail clamping provides rigid, minimal‑stock workholding for high‑precision finishing.
Palletized 5‑Axis Cells – Mount multiple TS96‑V50 fixtures on zero‑point pallets. Pre‑load different parts offline, then swap in seconds – maximize spindle uptime in high‑mix production.

Clear the Interference, Maximize Your 5‑Axis Potential

The TS96‑V50 dovetail fixture combines 45° dovetail access, 20 kN clamping force, and TS96 zero‑point speed – more clearance, less stock waste, and zero compromise on rigidity.
