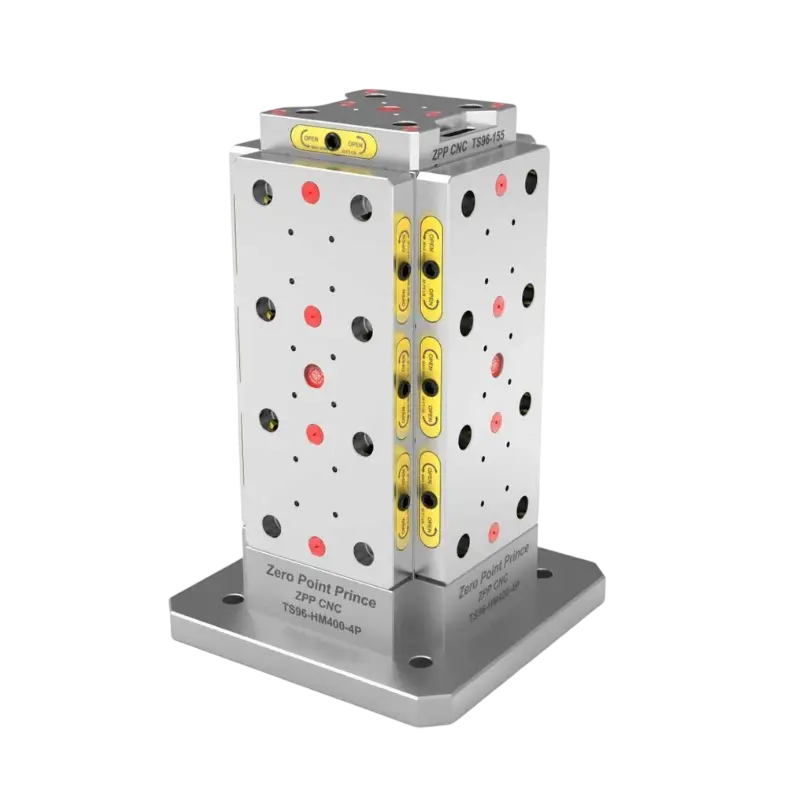

ZPP TS96 type 4-station tombstone for horizontal milling machine zero point workholding.

TS96-HM400_4P Horizontal Milling Machine 4 Statuion Tombstone(TS96Tvpe)

$6,900.00
Skip to product information
ZPP TS96 type 4-station tombstone for horizontal milling machine zero point workholding.
  • ZPP TS96 type 4-station tombstone for horizontal milling machine zero point workholding.
  • TS96-HM400_4P Horizontal Milling Machine 4 Statuion Tombstone(TS96Tvpe)
  • TS96-HM400_4P Horizontal Milling Machine 4 Statuion Tombstone(TS96Tvpe)
TS96-HM400_4P Horizontal Milling Machine 4 Statuion Tombstone(TS96Tvpe)

TS96-HM400_4P Horizontal Milling Machine 4 Statuion Tombstone(TS96Tvpe)

$6,900.00
Product Parameter Details
Model TS96-HM400_4P
Size 300*300*428mm
Material Zero Point Clamp + Cast Iron
Weight 135kg
Mounting Hole Customized
Clamping Force 20KN
feature



Rigid Construction for High-Precision Palletization

Crafted from premium Hardened Steel, the TS96 tombstone is engineered for maximum vibration dampening and thermal stability. Each of the four stations is precision-ground to ensure sub-micron repeatability, making it ideal for the most demanding Aerospace and Medical components. Whether you are mounting self-centering vises or dovetail fixtures, the TS96 interface ensures zero 5-axis interference (when used on 5-axis HMCs) and provides the rock-solid clamping force required for aggressive heavy-duty milling.
applicable scene

Maximize Spindle Uptime with the TS96 4-Station Tombstone

In the world of horizontal milling, the goal is to keep the spindle running while you're loading the next pallet. The ZPP TS96-Type 4-Station Tombstone is the premier workholding solution for high-volume production. By integrating the industry-standard 96mm cnc zero point system on all four faces, this tombstone allows for lightning-fast fixture swaps and unparalleled repeatability across multiple setups. Stop stopping your machine for setup time—palletize your workflow and let the HMC do what it does best: cut metal.
Downloads
File Name Size
3D Model 1.71MB Download Now
