Name: TS96-0090 0–90° Tilting Zero Point Workholding Base for 5-Axis CNC
Brand: Zero Point Prince
SKU: TS96-0090
Price: 1300.00 USD
Availability: InStock

ZPP 0-90 degree adjustable tilting zero point workholding base with Type 96 interface.

TS96-0090 0–90° Tilting Zero Point Workholding Base for 5-Axis CNC

$1,300.00

TS96-0090 0–90° Tilting Zero Point Workholding Base for 5-Axis CNC

$1,300.00

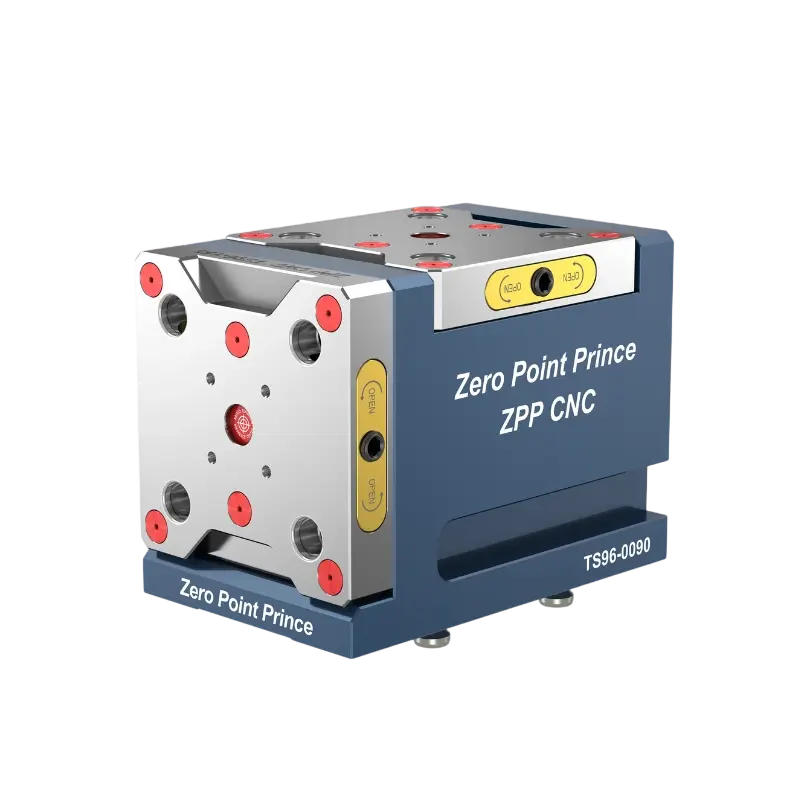

TS96-0090 0–90° Tilting Zero Point Workholding Base

The ZPP TS96-0090 is a Type 96 tilting zero point workholding base designed for 5-axis CNC machining and angled fixture setups. The 0–90° configuration supports adjustable workholding positions while maintaining a repeatable zero point interface for compatible fixtures.

Key Benefits

0–90° tilting workholding: supports angled machining and flexible fixture positioning.
Type 96 zero point interface: designed for compatible 96-series pull studs and fixtures.
5-axis machining support: helps improve access to multiple workpiece faces.
Rigid construction: hardened stainless steel with an aluminum base for production workholding.

Specifications

Parameter	Detail
Model	TS96-0090
Dimensions	241 × 155 × 181 mm
Material	Hardened Stainless Steel + Aluminum Base
Weight	24 kg
Locking Force	20 kN
Locking Method	96 Pull Studs (TS96 series)

Typical Applications

Suitable for 5-axis CNC workholding, angled milling, multi-face machining, repeatable fixture positioning, and setups that require adjustable workpiece orientation.

Explore ZPP zero point and 5-axis workholding solutions and learn more about zero point clamping systems.

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.

Core Benefits – Quick & Clear

0‑90° Adjustable Tilt
Dial in any angle from flat (0°) to vertical (90°) using the graduated scale. Machine chamfers, angled faces, or compound features on a standard 3‑axis VMC – no need for a 5‑axis machine or sine plates.
Type 96 Zero‑Point Interface
Accepts TS96‑series pull studs (M10). Swap your existing pallets, vises, or custom fixtures from flat to tilted in seconds with <0.005 mm repeatability. Maximize fixture utilization across orientations.
20 kN Locking Force
High‑torque locking mechanism holds the angle rigidly – no deflection during aggressive milling, drilling, or high‑speed finishing. Rock‑solid stability for heavy material removal.
Interference‑Free Geometry
Streamlined design minimizes 5‑axis interference when used on tilt‑turn machines, and provides clearance for complex tool paths on standard VMCs – keeps spindle uptime high.
Robust Hybrid Construction
Hardened stainless steel locking components + lightweight aluminum base – reduces weight to 24 kg while maintaining rigidity and corrosion resistance.

Key Use Cases

Aerospace & Medical Prototyping – Tilt a zero‑point pallet to machine compound angles on brackets, implants, or housings – one setup, multiple orientations.
3‑Axis VMC Upgrades – Add 4‑sided machining capability to a standard mill without buying a rotary table or 5‑axis machine.
High‑Mix Production Cells – Keep multiple tilting bases pre‑set to different angles – swap fixtures in seconds for different part families.

Tilt, Lock, Machine – Expand Your Capabilities Today

The TS96‑0090 tilting zero point base brings 0‑90° angle adjustment, Type 96 compatibility, and 20 kN locking force together – more angles, faster changeovers, and zero compromise on rigidity.
