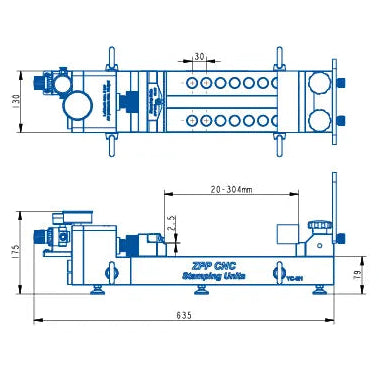

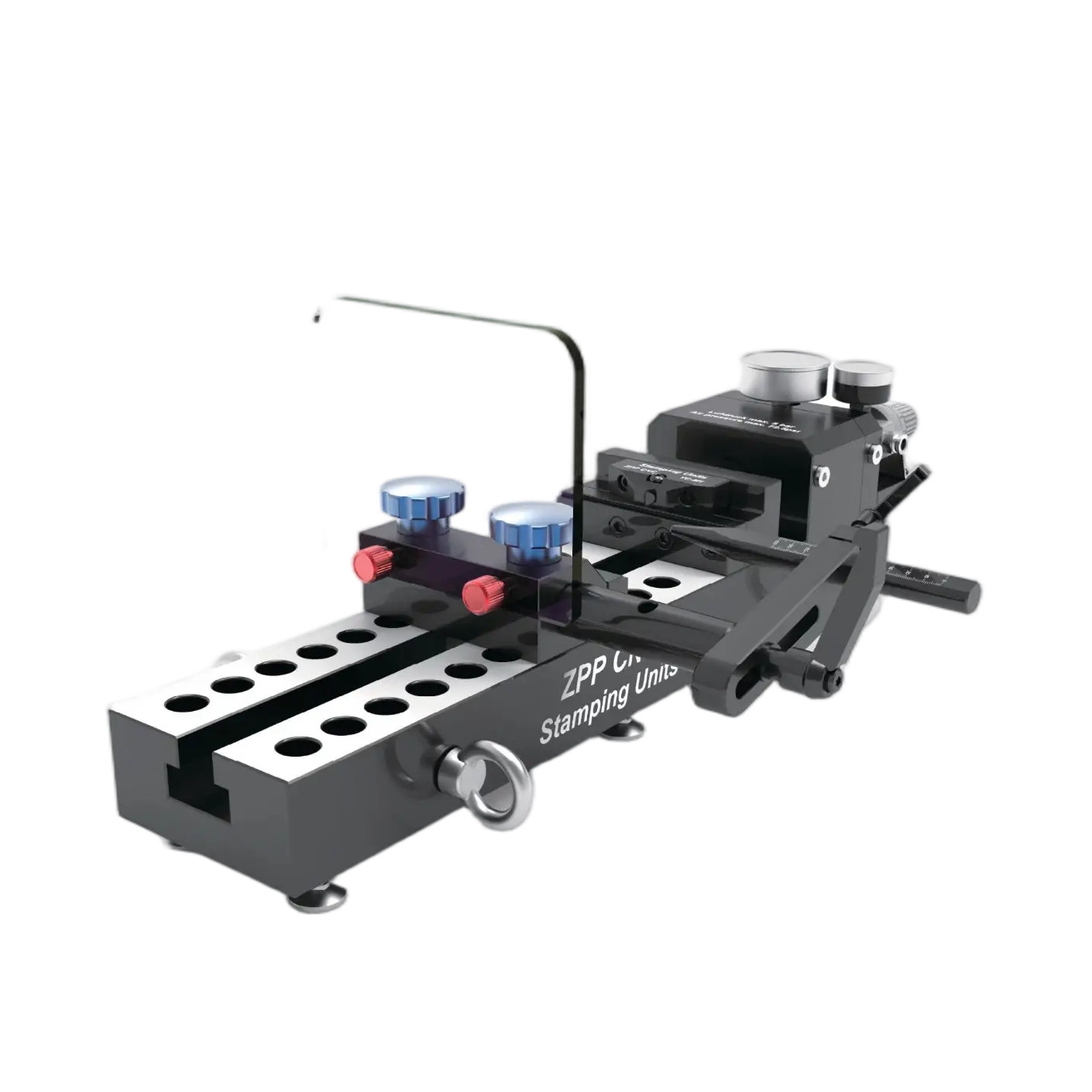

YC-M1 Hydraulic Stamping Unit (635*130*257mm)

50 kN Biting Force, Wide 20–300 mm Clamping Range for Raw Blanks

Hydraulic Power Meets Aggressive Tooth Grip

Clamping rough castings, forgings, or uneven blanks with standard vises often leads to slipping or inconsistent positioning. The YC‑M1 hydraulic stamping unit delivers 50 kN of biting force through a hardened stainless steel body – enough to securely hold parts with scaly or irregular surfaces. With a 20–300 mm clamping range and fine stroke adjustment, it adapts quickly to different blank sizes. Built for foundries, forging shops, and heavy‑duty machining cells.

Core Benefits – Quick & Clear

•
  50 kN Clamping Force
  Hydraulic actuation provides 50 kN (≈5 tons) of consistent, repeatable force – teeth dig into the workpiece surface to eliminate vibration and part movement during heavy cutting or stamping.

•
  Wide 20–300 mm Clamping Range
  Covers everything from small blanks to large castings. Quick stroke adjustment with fine‑tuning allows fast changeover between part families.

•
  Hardened Stainless Steel Construction
  Wear‑resistant, corrosion‑resistant, and rigid. Stands up to abrasive foundry dust, coolant, and repeated high‑force cycles. Total weight 20 kg.

•
  Customizable Jaw Teeth
  Tooth profile can be tailored to your material hardness (suitable for blanks up to HRC45). Predictable bite depth ensures secure hold without over‑penetration.
