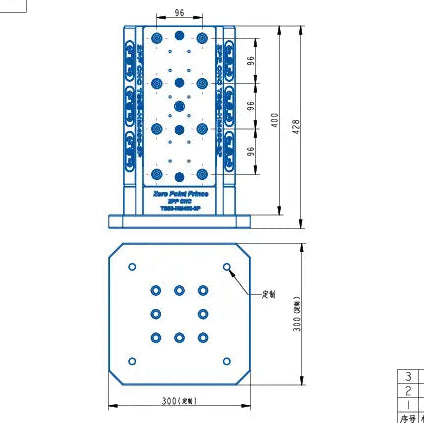

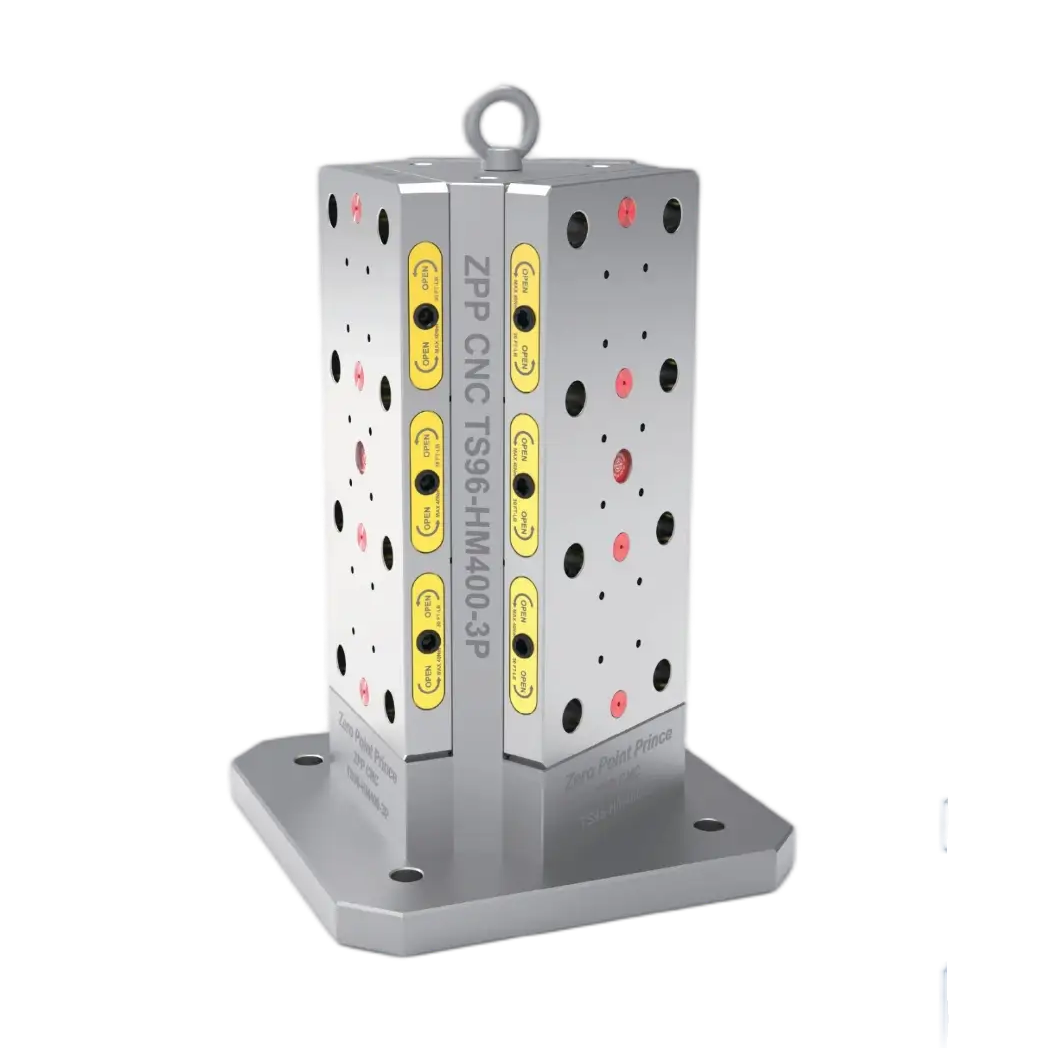

TS96-HM400_3P Horizontal Milling Tombstone – 3‑Station (300*300*428mm)

Three‑Station Cast Iron Tombstone with TS96 Zero‑Point Base

Maximize HMC Productivity – Three Parts per Cycle

Horizontal machining centers (HMCs) excel at high‑volume production, but slow fixture changeovers and limited part count per pallet kill efficiency. The TS96‑HM400_3P tombstone solves both – a rigid cast iron tower with three independent workstations (300×300×428 mm overall), integrated with a TS96 series zero‑point clamp base. Load three parts, machine them in one cycle, and swap the entire tombstone in seconds. Built for 20 kN clamping force and heavy‑duty HMC applications.

Core Benefits – Quick & Clear

•
  3‑Station Design
  Three separate workholding faces let you machine three parts per pallet cycle – triple throughput compared to single‑station fixtures. Ideal for high‑volume automotive, hydraulic, or general machining.

•
  TS96 Zero‑Point Ready
  Integrated TS96 zero‑point interface (M10 pull studs – sold separately). Swap the entire 116 kg tombstone in under 60 seconds with <0.005 mm repeatability. Change part families without removing individual vises.

•
  Rigid Cast Iron Construction
  Heavy‑duty cast iron body (116 kg) absorbs vibration and dampens harmonics – delivers better surface finish and longer tool life during roughing and finishing passes.

•
  20 kN Clamping Force
  Each workstation transmits the full 20 kN holding force – keeps workpieces rigidly clamped even during aggressive milling or drilling on HMCs.
