TS96-9690 Zero Point Fixture (155*130*180mm)

TS96-9690 Zero Point Fixture (155*130*180mm)

$800.00
Skip to product information
TS96-9690 Zero Point Fixture (155*130*180mm)
  • TS96-9690 Zero Point Fixture (155*130*180mm)
  • TS96-9690 Zero Point Fixture (155*130*180mm)

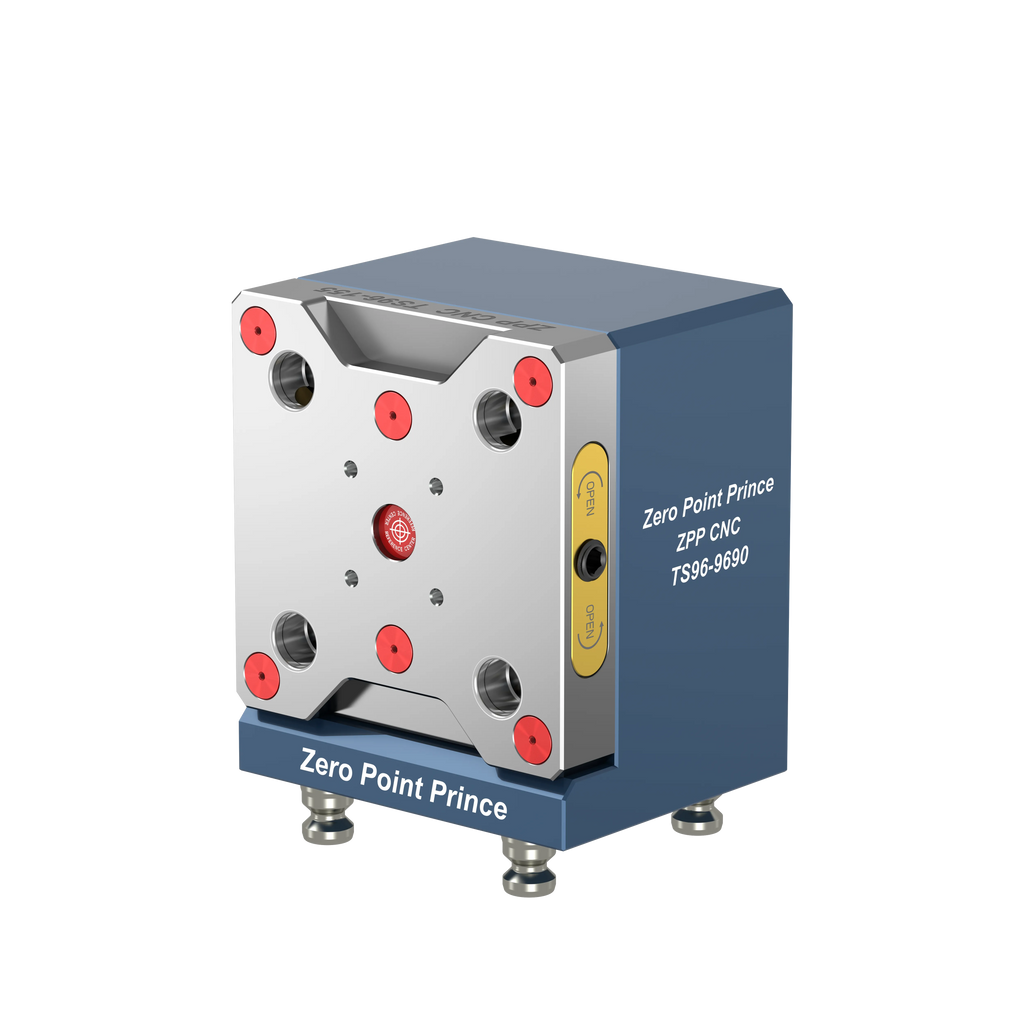

TS96-9690 Zero Point Fixture (155*130*180mm)

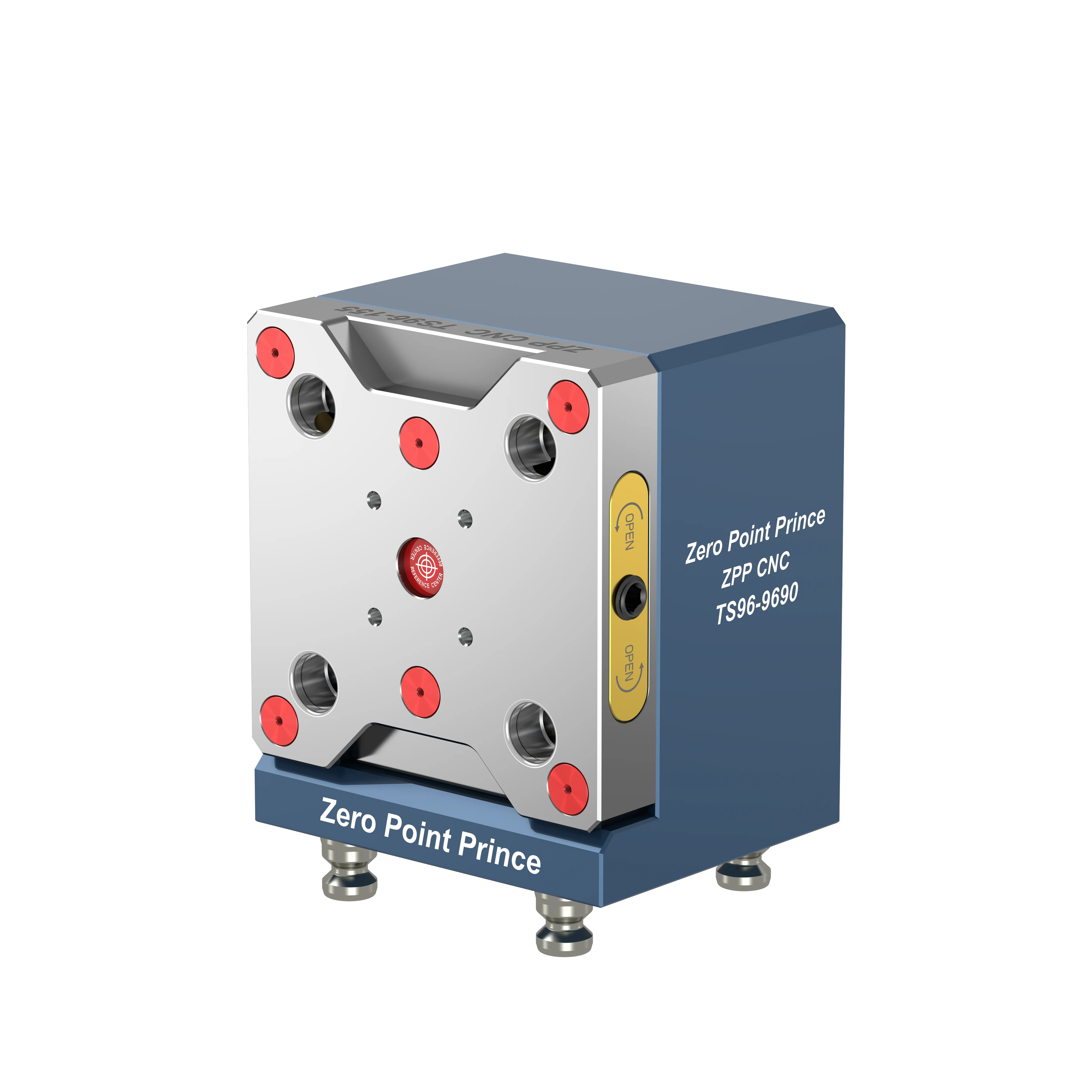

TS96-9690 Zero Point Fixture (155*130*180mm)

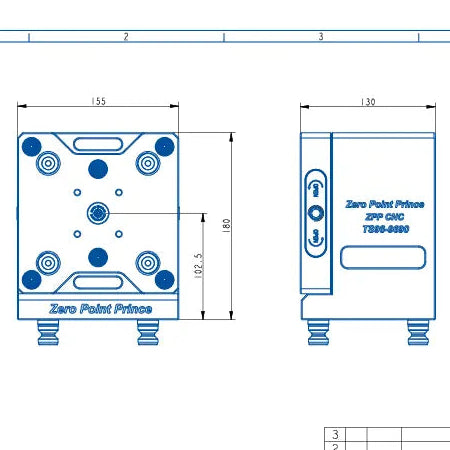

Parameter Detail
Model TS96-9690 (Modular Combination Type)
Dimensions 155 × 130 × 180 mm
Material Hardened Stainless Steel + Aluminum Base
Locking Force 20 kN
Locking Method 96 Pull Studs (TS96 series)
Weight 12.8 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Modular Combination Design
    Mix and match with TS96‑series components (pull studs, pallets, angle plates, pyramid fixtures) – create custom workholding arrays for different part shapes and sizes. Reconfigure in minutes, not days.
  • 96 Pull Stud Locking Method
    Utilizes the TS96 zero‑point interface – lock/unlock fixtures or pallets in seconds with <0.005 mm repeatability. Rapid changeover between part families without tools.
  • 20 kN Locking Force
    Reliable, repeatable clamping for medium to heavy workpieces – holds rigidly during aggressive milling, drilling, and high‑speed finishing.
  • Interference‑Free Construction
    Well‑designed geometry avoids machining interference – tools reach the workpiece from multiple angles without colliding with the fixture body.
applicable scene

Key Use Cases

  • Automotive High‑Mix Lines – Build custom pallet configurations for different engine brackets, housings, or suspension components – swap in seconds via zero‑point.
  • Heavy Machinery & Mold Manufacturing – Combine multiple TS96‑9690 units with L‑plates or pyramids to hold large, odd‑shaped castings or mold bases.
  • Automated CNC Cells – Integrate into pallet pools or robotic tending systems – the modular design allows rapid reconfiguration for new jobs.

Build the Workholding You Need – Change It Fast

The TS96‑9690 modular combination type zero point fixture gives you the flexibility of custom workholding with the speed of zero‑point changeover – 20 kN locking force, TS96 compatibility, and a compact hybrid build.
