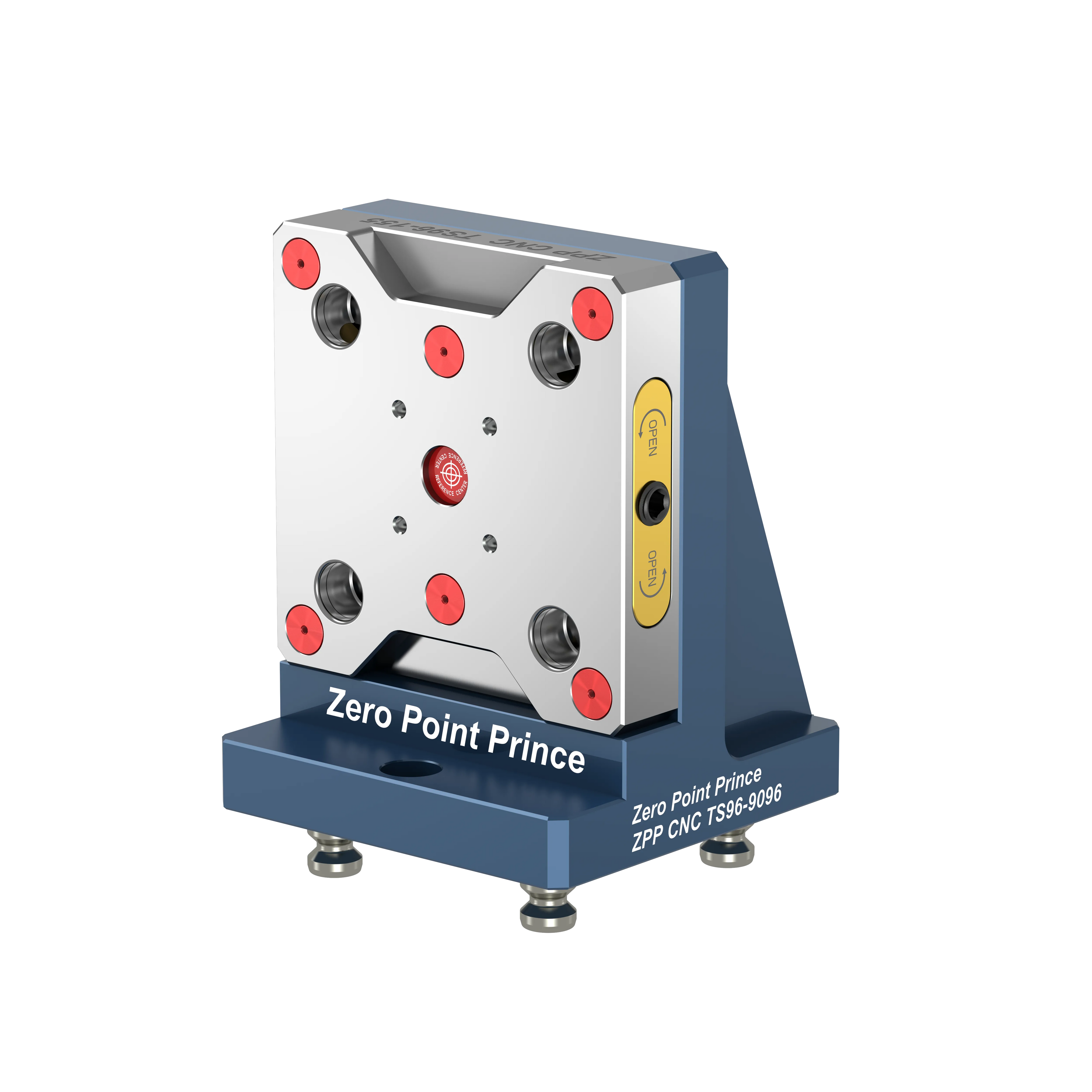

TS96-9096 Zero Point Fixture (155*155*200mm)

TS96-9096 Zero Point Fixture (155*155*200mm)

$800.00
Skip to product information
TS96-9096 Zero Point Fixture (155*155*200mm)
  • TS96-9096 Zero Point Fixture (155*155*200mm)
  • TS96-9096 Zero Point Fixture (155*155*200mm)
TS96-9096 Zero Point Fixture (155*155*200mm)

TS96-9096 Zero Point Fixture (155*155*200mm)

Parameter Detail
Model TS96-9096 (Compact Type)

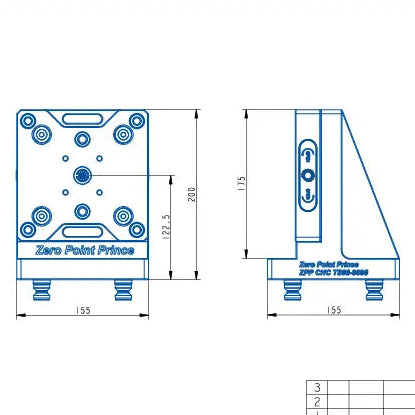

Dimensions 155 × 155 × 200 mm
Material Hardened Stainless Steel + Aluminum Base
Locking Force 20 kN
Locking Method 96 Pull Studs (TS96 series)
Weight 10 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Ultra‑Compact Design
    155×155 mm footprint – fits easily on crowded machine tables, 5‑axis trunnions, or pallet changers. Allows you to place multiple units in a high‑density grid for multi‑pallet workholding.
  • 20 kN Locking Force
    Powerful, repeatable clamping for small to medium workpieces – holds parts rigidly during aggressive milling, drilling, and high‑speed finishing.
  • 96 Pull Stud Locking Method
    Utilizes the TS96 zero‑point interface – lock/unlock pallets or fixtures in seconds with <0.005 mm repeatability. Rapid changeover between part families without tools.
  • Rigid Hybrid Construction
    Hardened stainless steel wear surfaces + aluminum base – eliminates deformation under extreme clamping forces while keeping weight low (10 kg). Low 200 mm height preserves Z‑axis stroke.
applicable scene

Key Use Cases

  • High‑Density Pallet Systems – Mount multiple TS96‑9096 units on a single machine table to run several small pallets simultaneously – maximize throughput.
  • 5‑Axis Trunnions with Limited Space – Compact footprint fits narrow rotary tables – keep the workpiece close to the rotation center.
  • High‑Mix Production Cells – Pre‑fixture different small parts on dedicated pallets, then swap them via zero‑point in seconds – ideal for automotive brackets, mold inserts, or heavy machinery components.

Maximize Table Density, Minimize Setup Time

The TS96‑9096 compact type zero point fixture gives you full TS96 locking force in a small, lightweight package – 20 kN, 96 pull stud compatibility, and a 10 kg hybrid build. More stations per table, faster changeovers, and zero compromise on rigidity.
Downloads
File Name Size
3D Model 477.44 kB Download Now
