Core Benefits – Quick & Clear

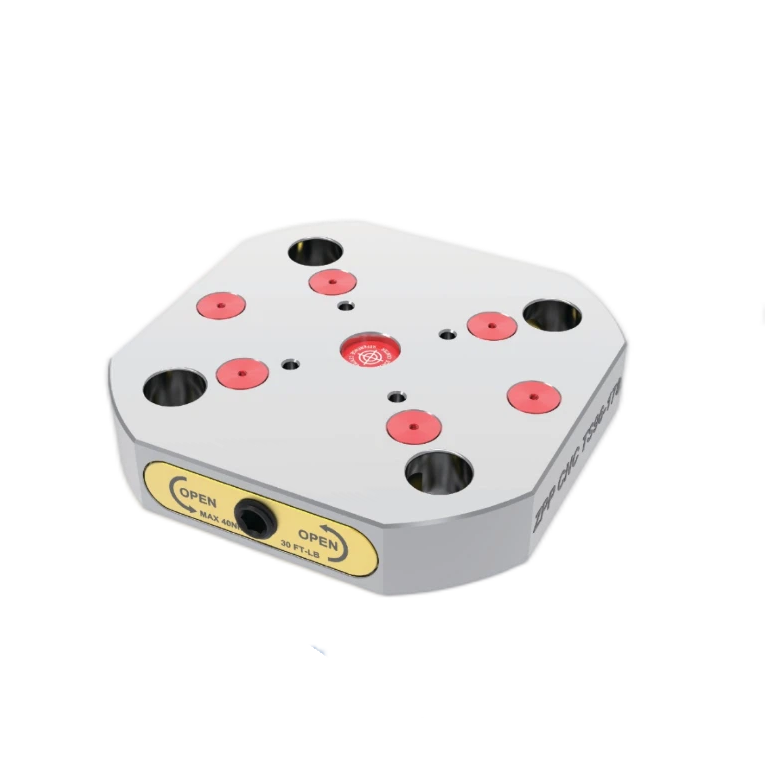

• Manual Zero‑Point Clamping – Precision Type
  Tool‑free operation – place a fixture plate equipped with compatible pull studs onto the unit and lock manually. Achieve sub‑micron repeatable positioning without alignment tools.

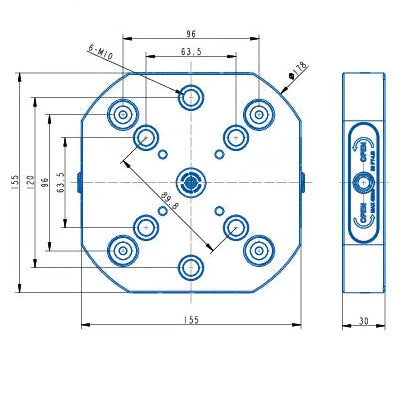

• Octagonal Design for Versatile Mounting
  The eight‑sided footprint (D178 mm) offers more mounting orientation options than a traditional circle or square – ideal for complex fixture layouts and multi‑pallet systems. Provides excellent stability while avoiding corner interference.
• Ultra‑Low Profile – Only 30 mm High
  Maximizes Z‑axis travel on 5‑axis machines, gantries, or low‑clearance rotary tables. Fits easily under pallets or fixtures without raising the workpiece.
• 20 kN Locking Force
  Powerful, repeatable clamping for medium‑to‑large workpieces – holds fixtures rigidly during aggressive milling, drilling, and high‑speed finishing in steel, cast iron, and alloys.
• Hardened Stainless Steel Construction
  Rigid, wear‑resistant, and corrosion‑resistant – eliminates jaw lift and deformation under extreme clamping forces. Ideal for wet machining and long production runs.
• Stable Mounting
  6×M10 mounting holes – provides a secure, vibration‑free platform for pallets, rotary tables, or custom fixture plates. Lightweight at only 4.2 kg.
