TS52-V50 Dovetail Fixture for TS52 Series (74*74*60mm)

Zero‑Point Ready 45° Dovetail Clamping with Hybrid Construction

Combine Five‑Face Access with Quick Changeover

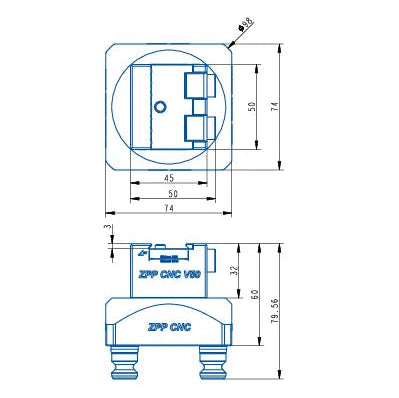

The V50 dovetail fixture is now available with a TS52‑compatible base – the TS52‑V50. This compact 74×74×60 mm unit features a 45° dovetail profile for unobstructed 5‑axis machining, plus a hardened stainless steel dovetail head on an aluminum base. Weighing only 1.0 kg, it delivers 20 kN clamping force and integrates directly with TS52 series zero‑point clamps (pull stud sold separately). Ideal for job shops that need fast swapping of small, complex parts.

Core Benefits – Quick & Clear

•
  20 kN Locking Force
  Powerful clamping for small to medium workpieces – holds securely during high‑speed finishing or heavy cutting.

•
  45° Dovetail Design
  Clamping range 23.5–25 mm. Standard 45° angle provides repeatable part location and five‑face access – mill top, bottom, and three sides without repositioning.

•
  TS52 Zero‑Point Compatible
  Designed to mount on TS52 series clamps (TS52‑108, TS52‑210, etc.). Add a TS52 pull stud (M8) to enable sub‑minute changeovers with <0.005 mm repeatability.

•
  Hybrid Construction
  Hardened stainless steel dovetail head + lightweight aluminum base. Reduces weight to only 1.0 kg – easier handling and less inertia on rotary tables.
