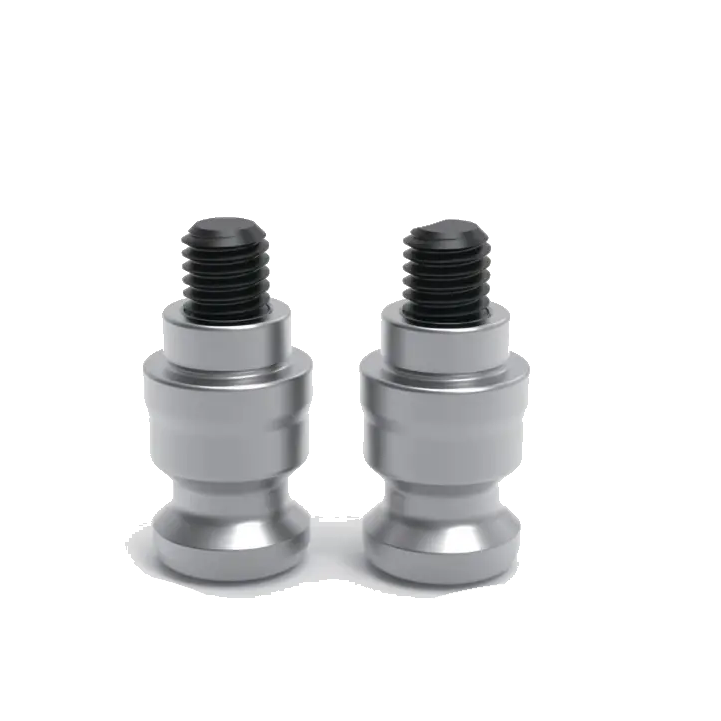

TS52-PullStuds Pull Studs Series – M8 (D16*24.56mm)

Compact Precision Pull Studs for TS52 Zero Point Clamping Systems

Small Component, Big Impact on Changeover Speed

Pull studs are the critical interface that transfers clamping force from the zero‑point unit to your pallet or fixture. The TS52‑PullStuds are precision‑ground from hardened stainless steel – designed specifically for the TS52 series of manual zero‑point clamps. Compact, reliable, and built for thousands of repeatable cycles.

Core Benefits – Quick & Clear

•
  18 kN Holding Capacity
  Matches the full clamping force of all TS52 series units (TS52‑108, TS52‑210, TS52‑210BS, etc.) – no strength loss at the connection point.

•
  Hardened Stainless Steel
  Wear‑resistant and corrosion‑resistant – maintains <0.005 mm repeatable positioning over millions of cycles. Ideal for wet or dry machining environments.

•
  Precision Ground Geometry
  Ensures consistent seating and pull‑down action – eliminates play and maximizes rigidity between the pallet and clamp.

•
  Compact M8 Mounting Thread
  Standard M8 thread for easy installation into small fixture plates, pallets, or custom workholding. Ultra‑lightweight at only 0.03 kg.
