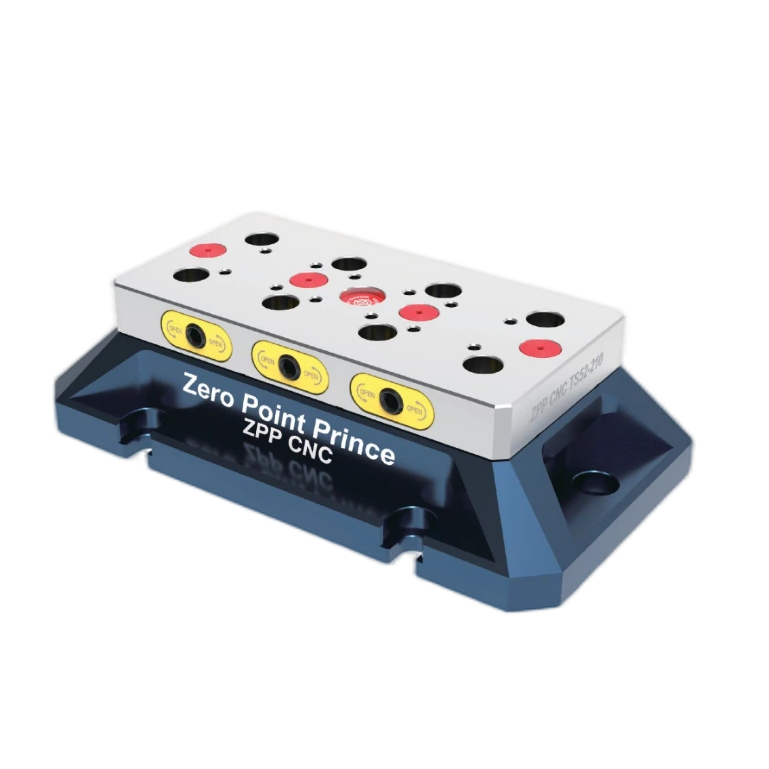

TS52-210BS Zero Point Clamping Element (275*153*75mm)

Hybrid Design – Stainless Steel Locking with Aluminum Lightness

Big Holding Force, Smart Weight Reduction

Need a zero‑point clamp that won’t overload your rotary table or manual handling? The TS52‑210BS combines hardened stainless steel locking components with an aluminum base – delivering the same 18 kN clamping force as all‑steel units, but at only 7.9 kg. Strong, light, and corrosion‑resistant.

Core Benefits – Quick & Clear

•
  18 kN Locking Force
  Reliable, repeatable clamping for pallets, fixtures, or tombstones – holds parts securely during 3‑axis, 4‑axis, or 5‑axis machining.

•
  Hybrid Construction
  Hardened stainless steel wear surfaces + lightweight aluminum base. Saves nearly 40% weight compared to full steel, reducing inertia on rotary tables and making manual fixture changes easier.

•
  Compact & Stable

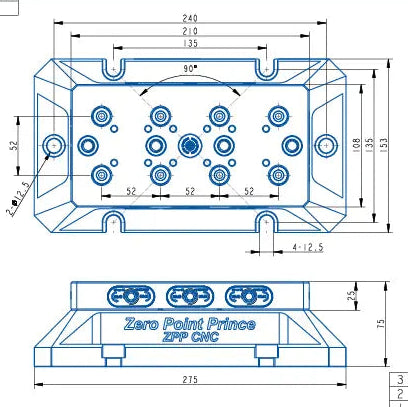

  275×153×75 mm footprint, 4‑M10 mounting holes. Low profile preserves Z‑axis stroke, while the wide base ensures rock‑solid mounting on machine tables or sub‑plates.

•
  Quick‑Change Ready
  Integrates seamlessly into zero‑point pallet systems. Swap fixtures in seconds with <0.005 mm repeatable positioning – slash setup time without sacrificing rigidity.
