Core Benefits – Quick & Clear

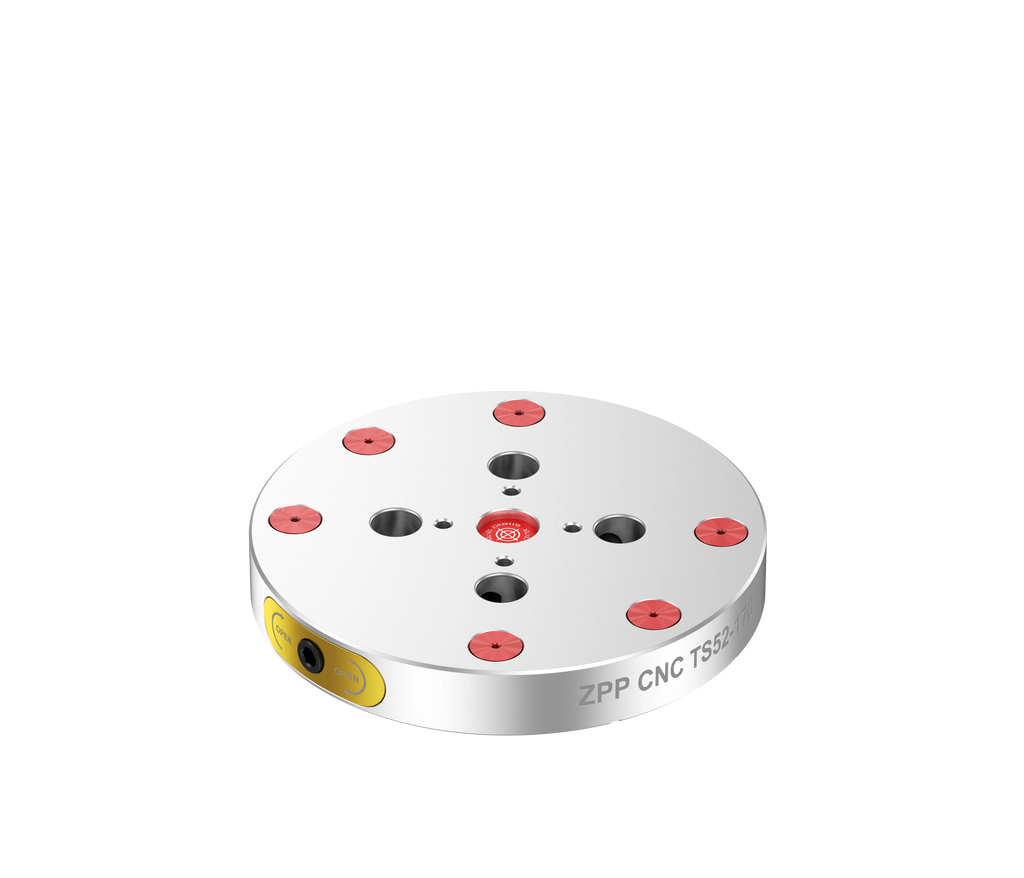

• Manual Zero‑Point Clamping – Precision Type
  Tool‑free operation – place a fixture plate equipped with compatible pull studs onto the unit and lock manually. Achieve sub‑micron repeatable positioning without alignment tools.
• Larger Circular Design for Medium‑to‑Large Parts

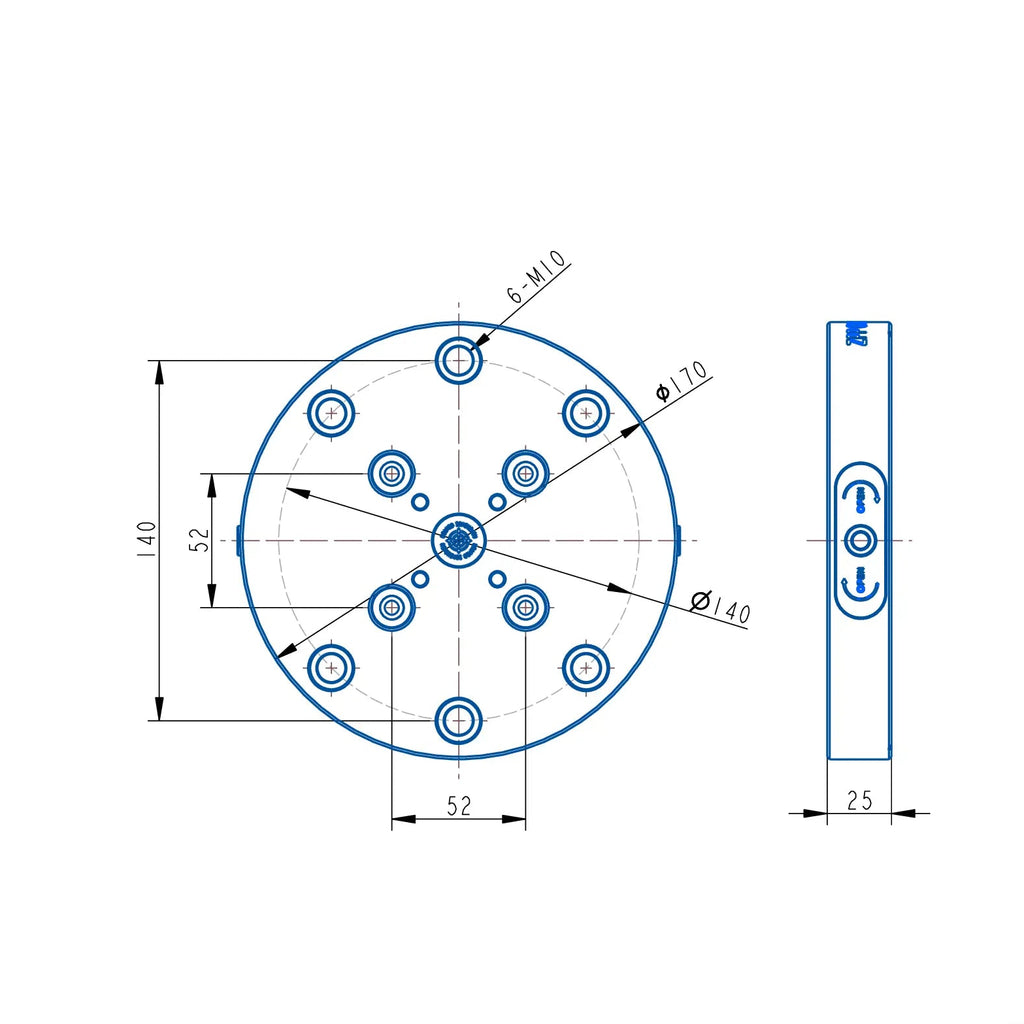

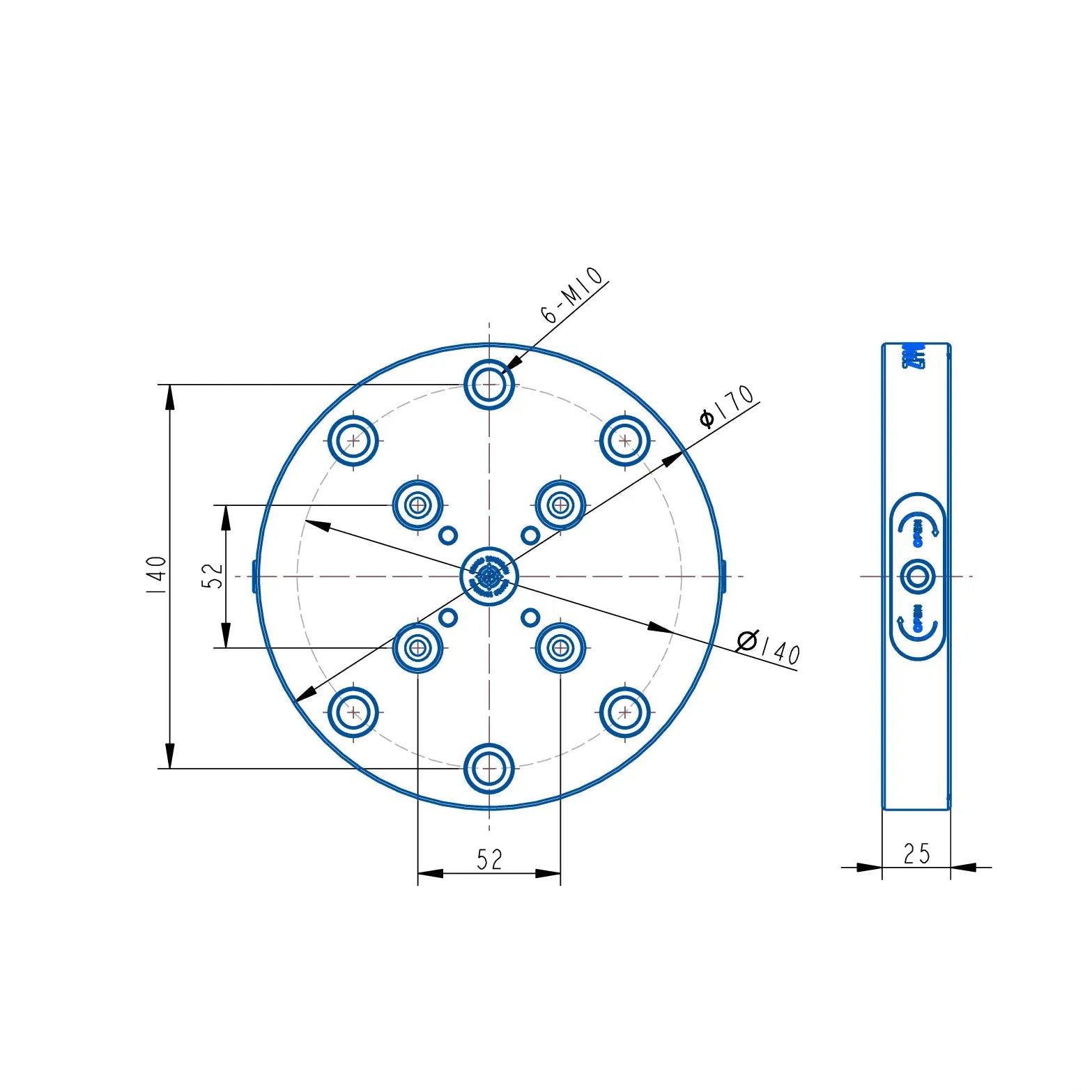

  D170 mm round footprint eliminates corner interference – ideal for rotary tables, 4th/5th axis indexing, and clamping larger housings, flanges, or irregular components. Provides excellent swing clearance.
• Ultra‑Low Profile – Only 25 mm High
  Maximizes Z‑axis travel on 5‑axis machines, gantries, or low‑clearance rotary tables. Fits easily under heavy pallets or rotary fixtures without raising the workpiece.
• 18 kN Locking Force
  Reliable, repeatable clamping for medium‑to‑large workpieces – holds fixtures rigidly during aggressive milling, drilling, and high‑speed finishing in steel, cast iron, and alloys.
• Hardened Stainless Steel Construction
  Rigid, wear‑resistant, and corrosion‑resistant – eliminates jaw lift and deformation under extreme clamping forces. Ideal for wet machining and long production runs.
• Stable Mounting
  6×M10 mounting holes – provides a secure, vibration‑free platform for pallets, rotary tables, or custom fixture plates. Lightweight at only 3.7 kg.
