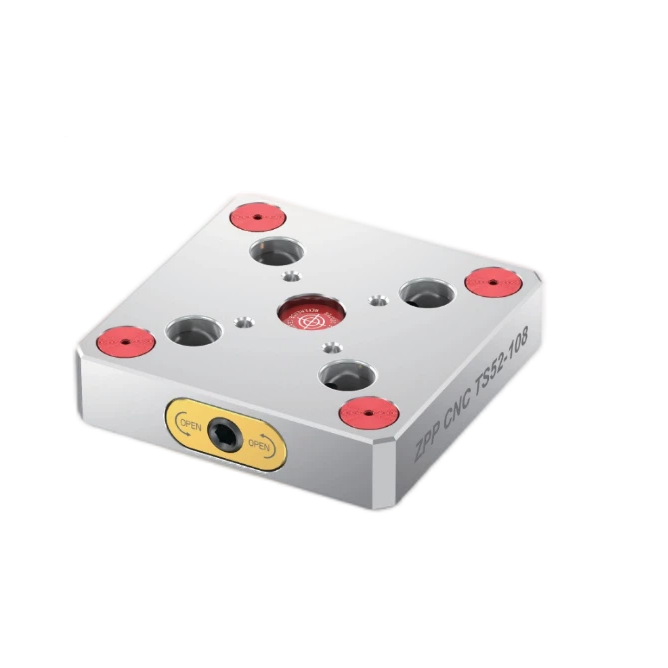

TS52-108 Zero Point Clamping Element (108*108*25mm)

Compact, High‑Force Locking for Modular Workholding

Precision Positioning in a Small Footprint

Need a reliable zero‑point locking unit for your pallet system or fixture plate? The TS52‑108 delivers 18 kN locking force in an ultra‑compact 108×108×25 mm hardened stainless steel body – ideal for tight machine tables, rotary pallet changers, or custom workholding grids.

Core Benefits – Quick & Clear

•
  High Locking Force, Small Size
  18 kN holding capacity from a 1.9 kg unit – keeps pallets and fixtures rigidly clamped even during heavy cutting, without eating up valuable table space.

•
  Hardened Stainless Steel
  Corrosion‑resistant and wear‑resistant – maintains micron‑level repeatability over thousands of clamping cycles. Suitable for wet or dry machining environments.

•
  Easy Integration

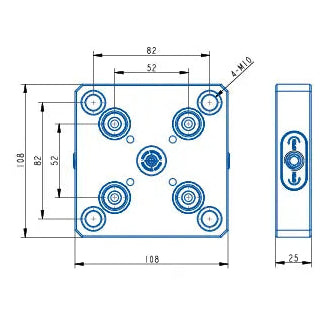

  4‑M10 mounting holes, 108 mm square envelope. Mount directly on machine tables, sub‑plates, or tombstone fixtures. Compatible with most zero‑point systems.

•
  Quick & Repeatable
  Pallets or fixture plates can be swapped in seconds with <0.005 mm repeatable positioning. Reduce setup time by 80% – perfect for high‑mix production.
