TO96-200 Manual Zero Point Clamping (D200*30mm)

TO96-200 Manual Zero Point Clamping (D200*30mm)

$600.00
Skip to product information

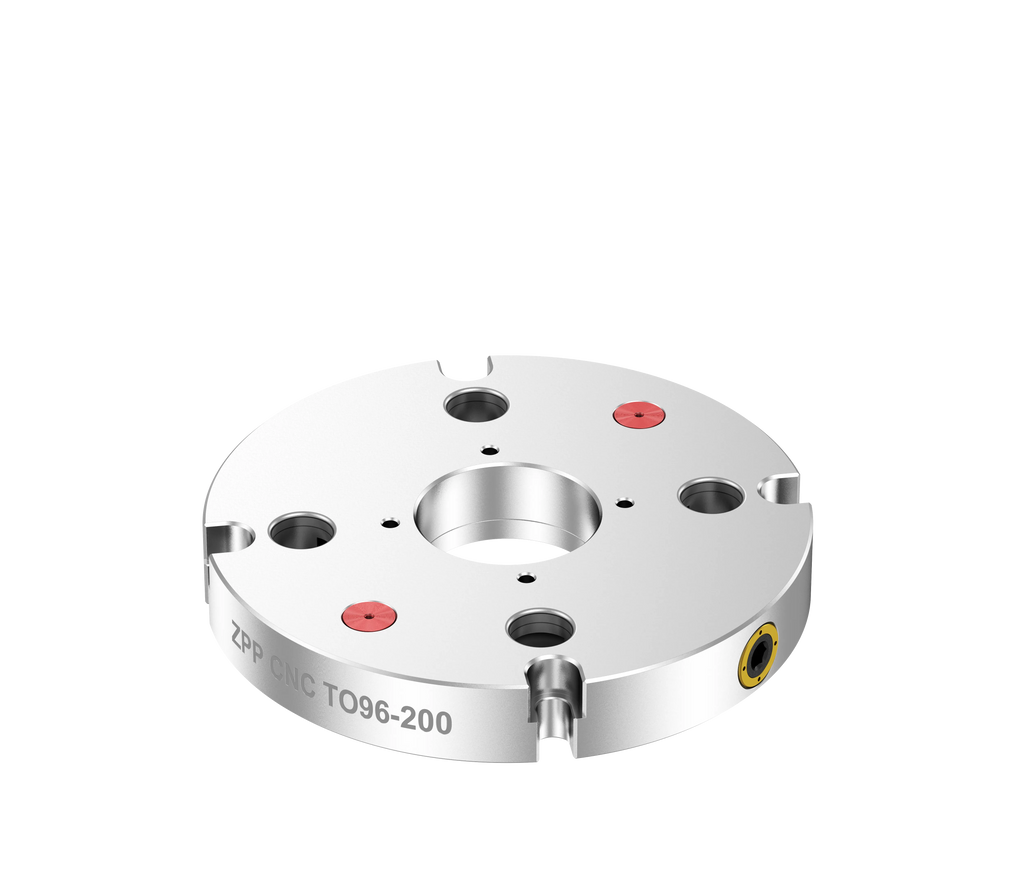

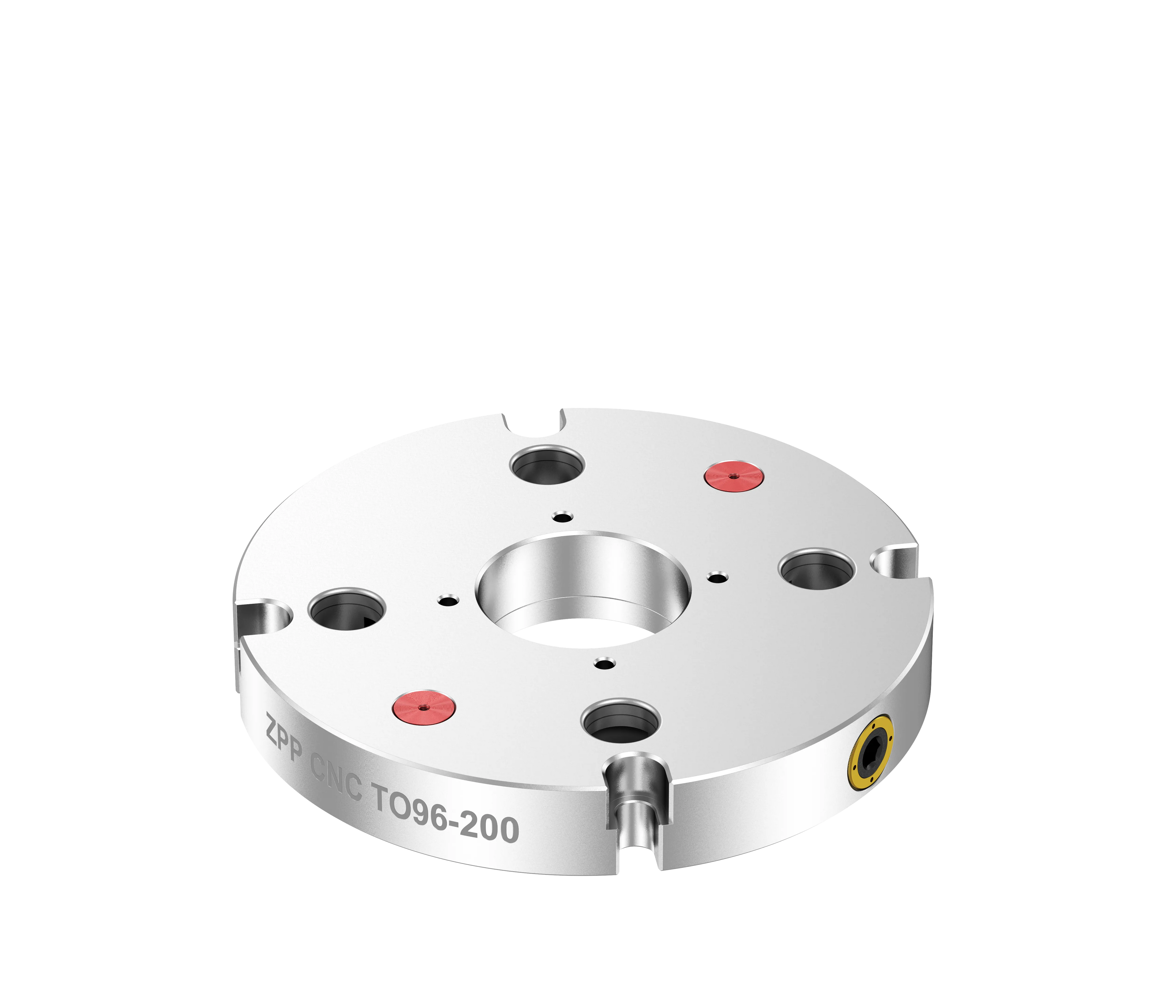

TO96-200 Manual Zero Point Clamping (D200*30mm)
  • TO96-200 Manual Zero Point Clamping (D200*30mm)
  • TO96-200 Manual Zero Point Clamping (D200*30mm)
TO96-200 Manual Zero Point Clamping (D200*30mm)

TO96-200 Manual Zero Point Clamping (D200*30mm)

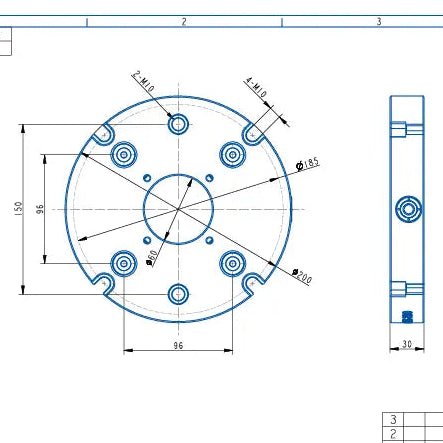

Parameter Detail
Model TO96-200 (Manual Zero Point Clamping, Precision Type)
Dimensions D200 × 30 mm
Material Hardened Stainless Steel
Mounting Holes 6 × M10
Locking Force 20 kN
Weight 6.2 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Manual Zero‑Point Clamping – Precision Type
    Tool‑free operation – place a fixture plate equipped with compatible pull studs onto the unit and lock manually. Achieve sub‑micron repeatable positioning without alignment tools.
  • Circular Design for Rotational Components
    Smooth round footprint (D200 mm) eliminates corner interference – ideal for rotary tables, 4th/5th axis indexing, and clamping irregularly shaped medium‑to‑large parts. No protruding edges to limit swing clearance.
  • Ultra‑Low Profile – Only 30 mm High
    Maximizes Z‑axis travel on 5‑axis machines, gantries, or low‑clearance rotary tables. Fits easily under heavy pallets or rotary fixtures without raising the workpiece.
  • 20 kN Locking Force
    Powerful, repeatable clamping for medium‑to‑large workpieces – holds fixtures rigidly during aggressive milling, drilling, and high‑speed finishing in steel, cast iron, and alloys.
  • Hardened Stainless Steel Construction
    Rigid, wear‑resistant, and corrosion‑resistant – eliminates jaw lift and deformation under extreme clamping forces. Ideal for wet machining and long production runs.
  • Stable Mounting
    6×M10 mounting holes – provides a secure, vibration‑free platform for heavy pallets, rotary tables, or custom fixture plates. Weight: 6.2 kg.
applicable scene

Key Use Cases

  • High‑Mix Automotive & Heavy Machinery – Pre‑fixture rotational parts (housings, flanges, large bushings) on dedicated circular pallets. Change entire jobs in under one minute.
  • Mold Manufacturing – Secure medium‑sized mold inserts, core pins, or electrode pallets on rotary tables – circular profile and sub‑micron repeatability ensure perfect alignment during indexed machining.
  • Palletized Workflows with Rotary Tables – Mount multiple TO96‑200 units on a 5‑axis trunnion to run several pallets – maximize throughput without automation.

Ultra‑Low Profile, Heavy‑Duty Circular Precision

The TO96‑200 combines 20 kN locking force, a 30 mm ultra‑low round profile, and hardened stainless steel durability – faster changeovers, more Z‑axis and swing clearance, and zero compromise on rigidity for rotational and irregular components.
Downloads
File Name Size
3D Model 140.24 kB Download Now
