TA52-108 Manual Zero Point Clamping (108*108*25mm)

TA52-108 Manual Zero Point Clamping (108*108*25mm)

$200.00
Skip to product information

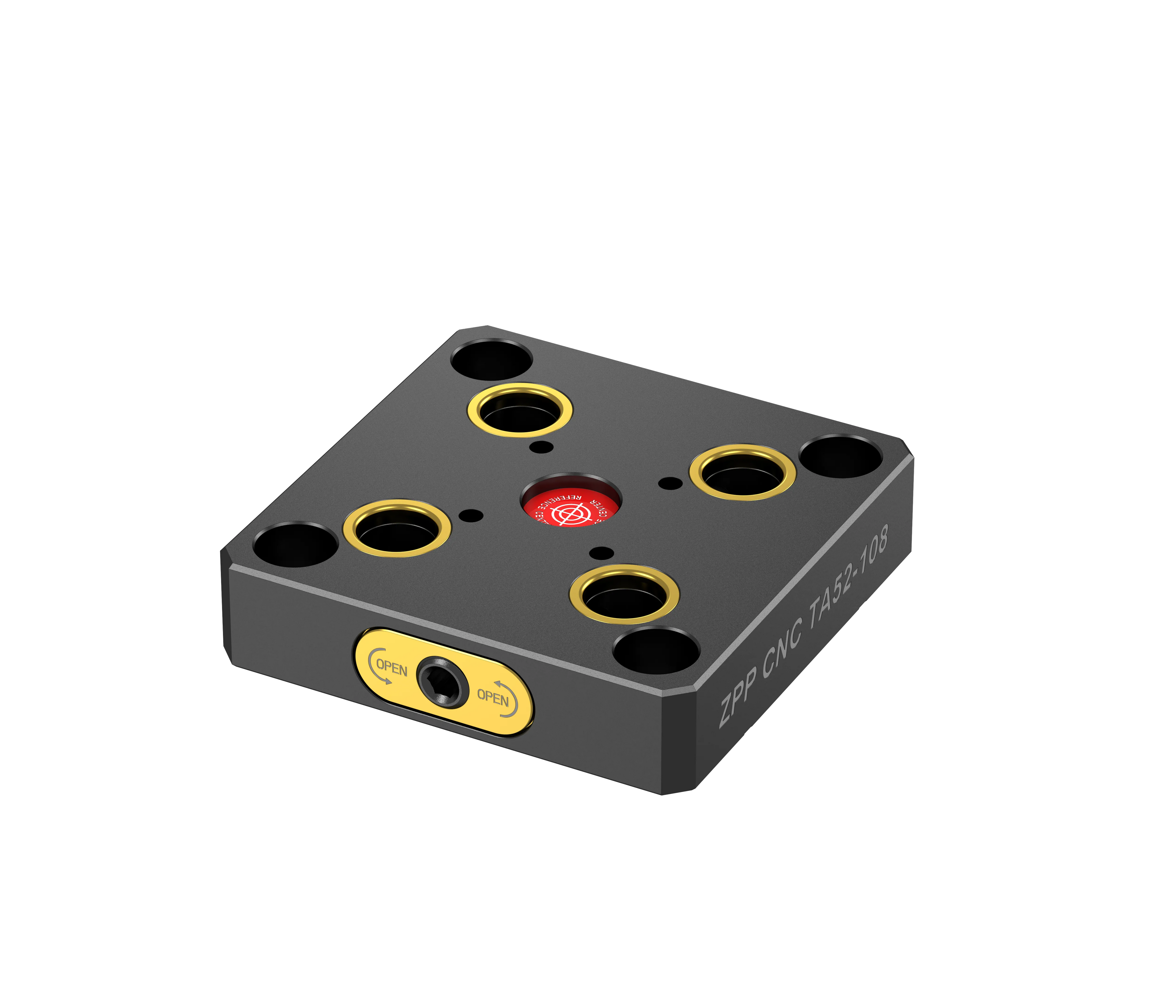

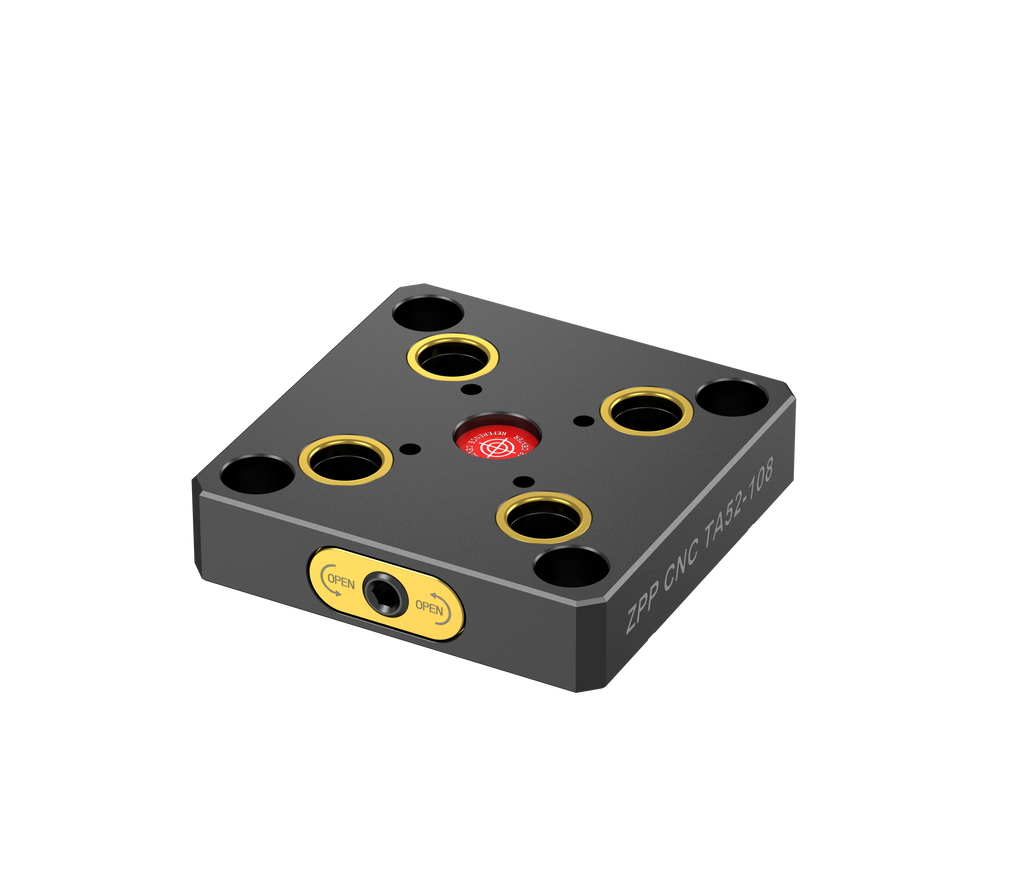

TA52-108 Manual Zero Point Clamping (108*108*25mm)
  • TA52-108 Manual Zero Point Clamping (108*108*25mm)
  • TA52-108 Manual Zero Point Clamping (108*108*25mm)
TA52-108 Manual Zero Point Clamping (108*108*25mm)

TA52-108 Manual Zero Point Clamping (108*108*25mm)

Parameter Detail
Model TA52-108 (Manual Zero Point Clamping, Economy Version)

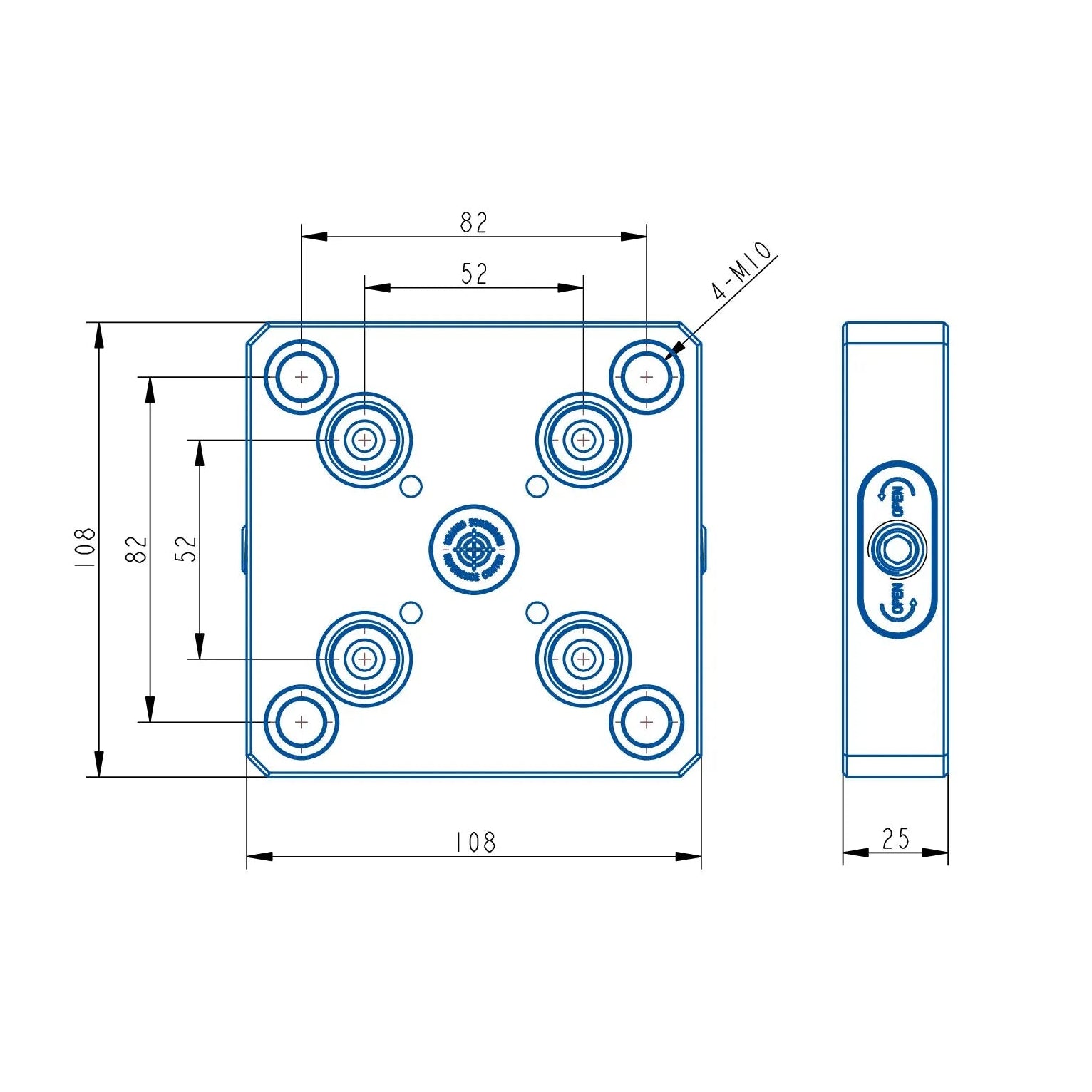

Dimensions 108 × 108 × 25 mm
Material Hardened Aluminum + Steel Ring
Mounting Holes 4 × M10
Locking Force 17 kN
Weight 1.1 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Manual Zero‑Point Clamping – Economy Version
    Tool‑free operation – place a fixture plate equipped with compatible pull studs onto the unit and lock manually. Achieve repeatable positioning without alignment tools at a lower entry cost.
  • Ultra‑Light Aluminum + Steel Ring Construction
    Hardened aluminum body keeps weight extremely low (1.1 kg), while the integrated steel locking ring provides wear‑resistant, reliable clamping. Reduces inertia on rotary tables and makes handling effortless.
  • Ultra‑Low Profile – Only 25 mm High
    Maximizes Z‑axis travel on 5‑axis trunnions, gantries, and low‑clearance setups. Fits easily under small pallets or fixtures.
  • 17 kN Locking Force
    Reliable clamping for small‑to‑medium workpieces – holds fixtures rigidly during milling, drilling, and finishing operations in aluminum, mild steel, and composites.
  • Compact Square Footprint
    108×108 mm mounting area, 4×M10 holes – ideal for high‑density grid layouts, multi‑pallet systems, and tight machine tables.
applicable scene

Key Use Cases

  • High‑Mix Automotive & Heavy Machinery – Pre‑fixture small to medium parts (brackets, levers, small housings) on dedicated pallets. Change jobs in under one minute at a low cost per station.
  • Mold Manufacturing – Secure small electrode pallets or mold inserts where weight and economy are priorities.
  • High‑Density Pallet Workflows – Mount multiple TA52‑108 units on a machine table to run many small pallets – maximize throughput without breaking the budget.

Economy Meets Performance – Ultra‑Light, Compact, Repeatable

The TA52‑108 combines 17 kN locking force, an ultra‑light aluminum‑with‑steel‑ring design, and a 25 mm low profile – faster changeovers, lower cost, and zero compromise on repeatability for small‑to‑medium components.
Downloads
File Name Size
3D Model 125.39 kB Download Now
