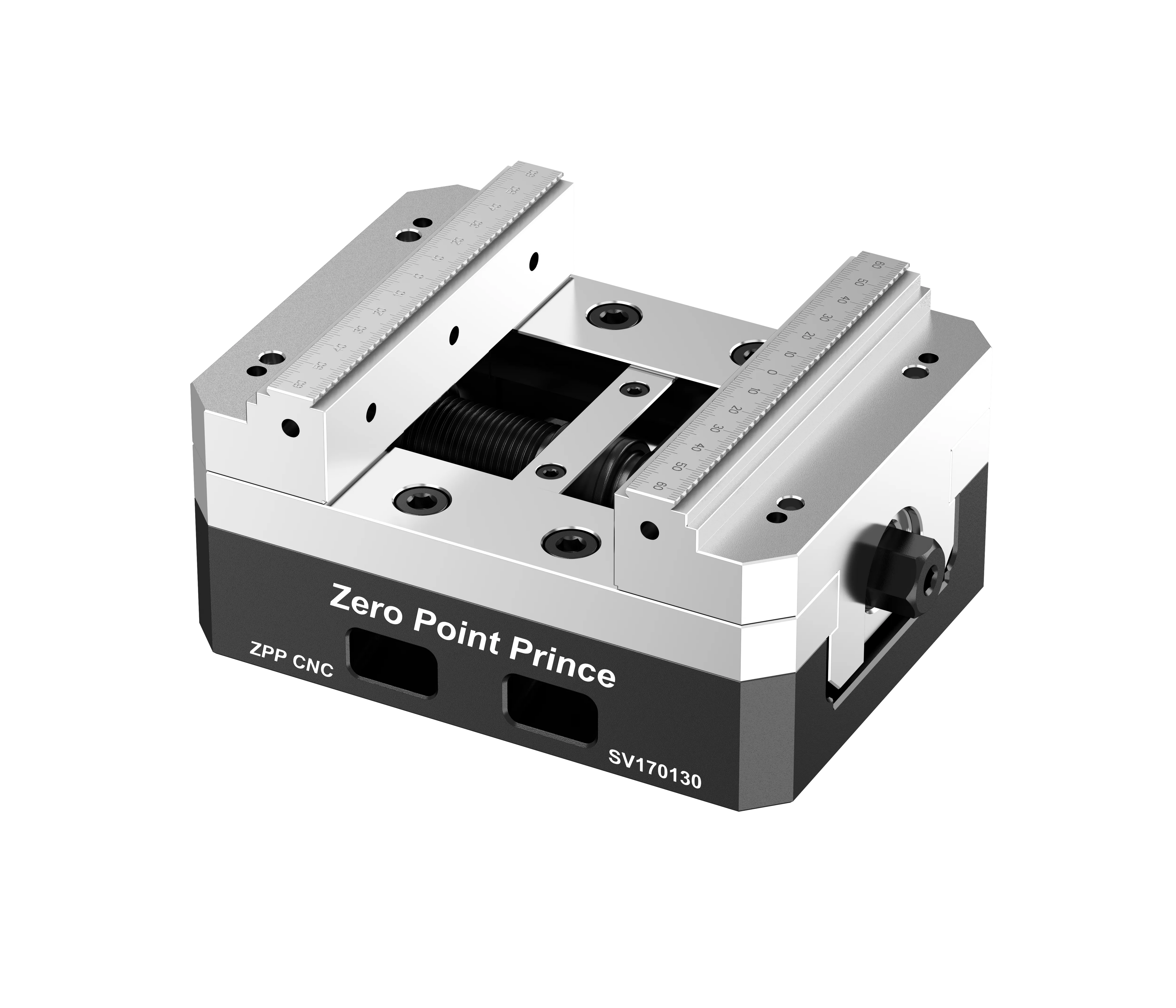

SV170130 Self‑Centering Vise – Economy (170*130*85mm)

Heavy‑Duty Self‑Centering Vise with 25 kN Clamping Force

Center Large Workpieces Fast – Up to 152 mm Capacity

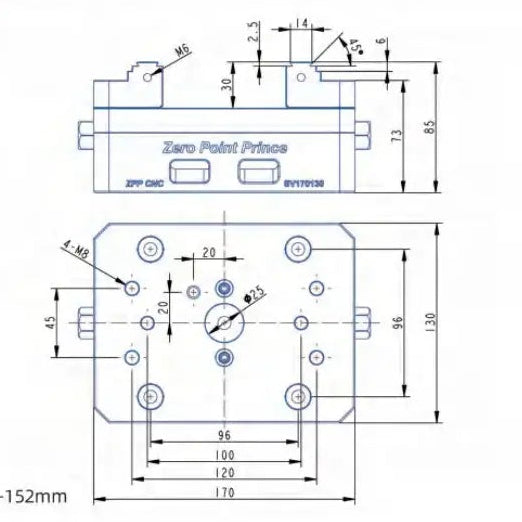

When parts get larger, centering them manually becomes time‑consuming and error‑prone. The SV170130 economy self‑centering vise solves this – a 170×130×85 mm hardened steel vise that automatically centers the workpiece every time. With forward clamping 0‑86 mm and reverse clamping 71‑152 mm, it handles medium‑large blanks, round stock, and blocks up to 152 mm wide. 25 kN clamping force at 80 Nm torque provides secure holding for aggressive machining in steel, cast iron, and other demanding materials.

Core Benefits – Quick & Clear

•
  Self‑Centering Action
  Both jaws move simultaneously toward the center – the workpiece is always positioned exactly on the machine’s centerline. Eliminates edge finding, reduces setup time by up to 70%.

•
  Dual Clamping Ranges
  Forward: 0‑86 mm / Reverse: 71‑152 mm. One vise covers small parts and large workpieces up to 152 mm – no need to swap vises for different widths.

•
  25 kN Clamping Force @ 80 Nm
  Higher clamping force than smaller models – holds large workpieces securely for heavy milling, drilling, and roughing operations in steel, cast iron, and alloys.

•
  Robust & Stable
  170 × 130 mm footprint, 9.3 kg weight. Hardened steel construction ensures long‑term wear resistance, rigidity, and vibration damping. Ideal for CNC mills, VMCs, and heavy‑duty bench work.
