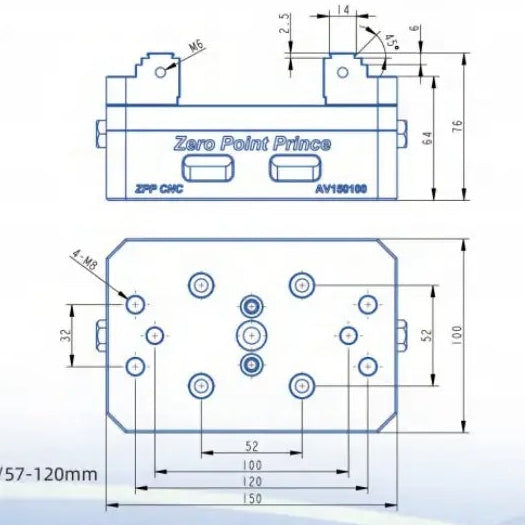

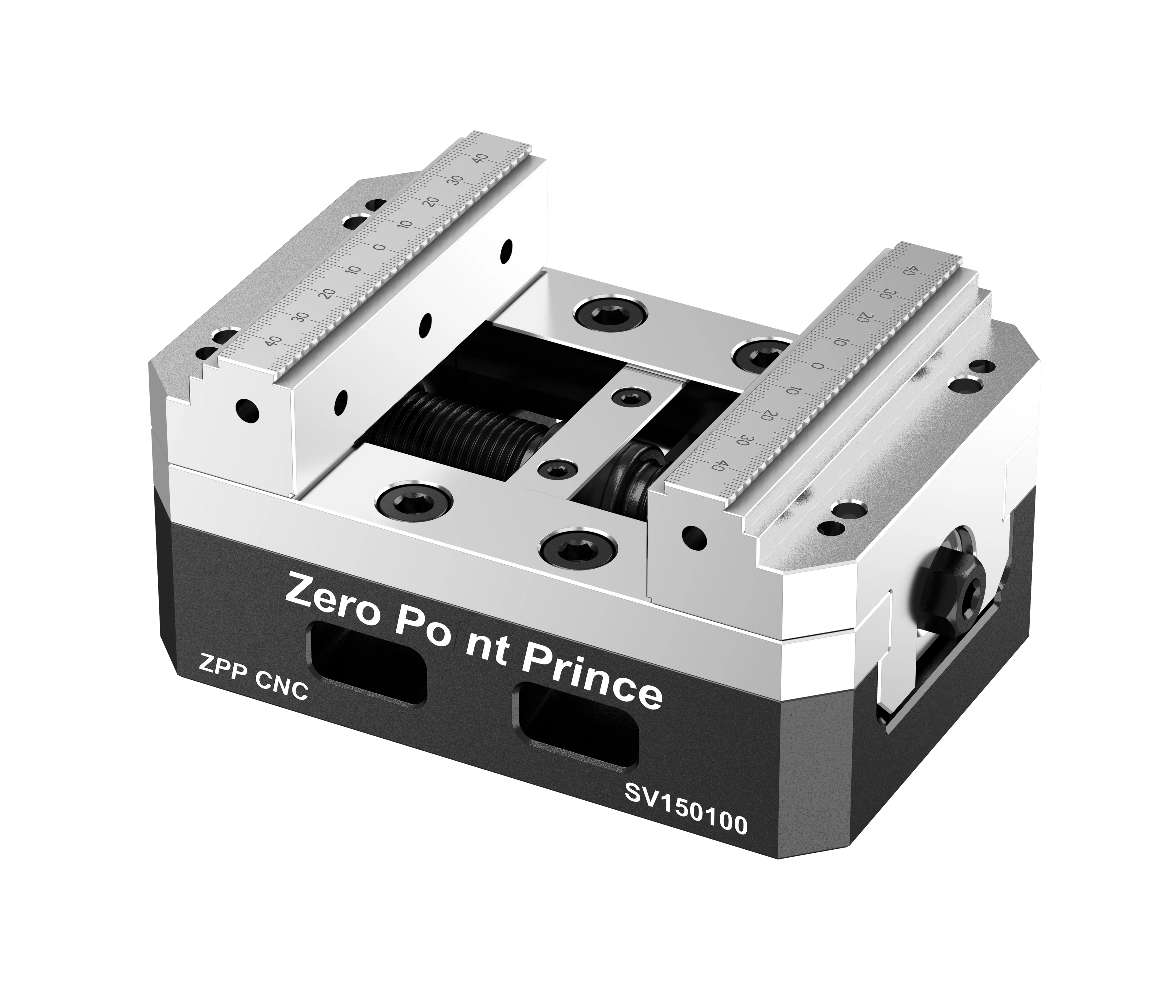

SV150100 Self‑Centering Vise – Economy (150*100*76mm)

Wider Capacity Self‑Centering Vise with 20 kN Clamping Force

Center Any Workpiece Up to 120 mm – Instantly, Repeatably

Standard vises require tedious edge finding and dialing in the center. The SV150100 economy self‑centering vise eliminates that – a 150×100×76 mm hardened steel vise that automatically centers the part regardless of width. With forward clamping 0‑80 mm and reverse clamping 57‑120 mm, it handles medium‑sized blanks, round stock, and blocks up to 120 mm. 20 kN clamping force at 75 Nm torque provides secure holding for more aggressive machining. Ideal for job shops, batch production, and any application where fast, repeatable centering boosts efficiency.

Core Benefits – Quick & Clear

•
  Self‑Centering Action
  Both jaws move simultaneously toward the center – the workpiece is always positioned exactly on the machine’s centerline. Eliminates edge finding and reduces setup time by up to 70%.

•
  Dual Clamping Ranges
  Forward: 0‑80 mm / Reverse: 57‑120 mm. One vise covers small parts and larger workpieces – no need to switch vises for different widths.

•
  20 kN Clamping Force @ 75 Nm
  Higher force than smaller self‑centering vises – holds medium workpieces securely for milling, drilling, and light to medium cutting in steel, aluminum, and cast iron.

•
  Compact & Robust
  150 × 100 mm footprint, only 5.5 kg. Hardened steel construction ensures long‑term wear resistance and rigidity. Fits easily on CNC mills, rotary tables, or bench setups.
