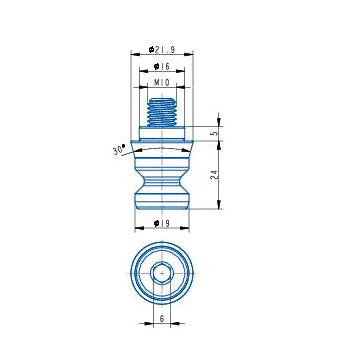

PM96-PullStuds Pull Studs Series – M10 (D21.9*29mm)

Heavy‑Duty Pull Studs for PM96 Zero Point Clamping Systems

Transfer Full 20 kN Clamping Force with Precision Reliability

Pull studs are the critical interface between your zero‑point clamp and the fixture or pallet. The PM96‑PullStuds are precision‑ground from hardened stainless steel – engineered specifically for the PM96 series of manual, pneumatic, and high‑precision zero‑point clamps. Built for heavy loads, sub‑micron repeatability, and thousands of cycles.

Core Benefits – Quick & Clear

•
  20 kN Holding Capacity
  Matches the full clamping force of all PM96 series units (TS96, PM96, AP96) – no strength loss at the connection point, even under aggressive cutting.

•
  Hardened Stainless Steel
  Wear‑resistant and corrosion‑resistant – maintains <0.005 mm repeatable positioning over millions of cycles. Ideal for wet or dry, high‑duty machining environments.

•
  Precision Ground Geometry
  Ensures consistent seating, pull‑down action, and zero play – maximizes rigidity between the pallet and clamp for vibration‑free cutting.

•
  M10 Mounting Thread
  Standard M10 thread for secure installation into larger fixture plates, heavy pallets, or tombstone fixtures. Lightweight at only 0.05 kg.
