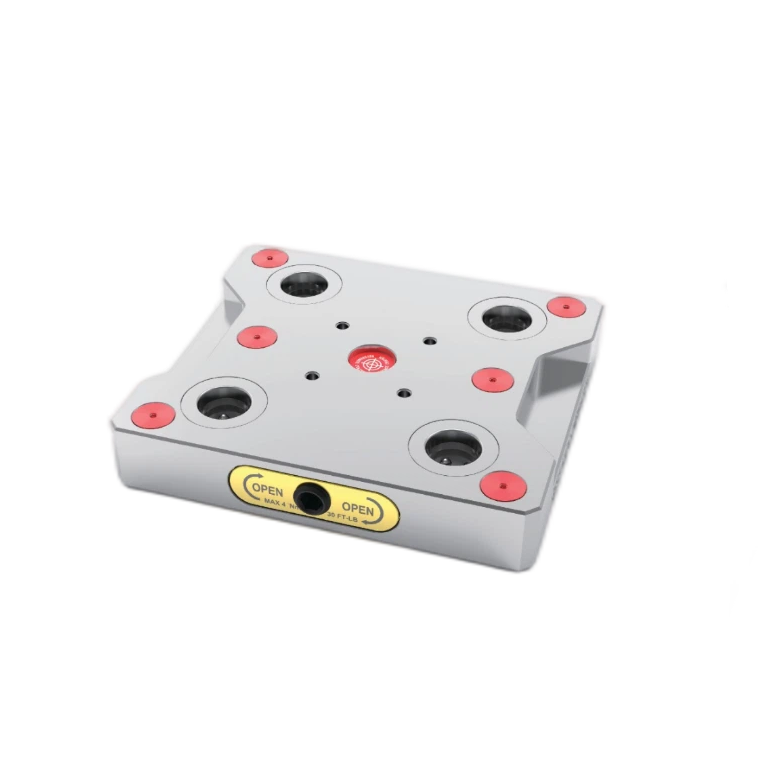

PM96-175 Zero Point Clamping Element (175*155*30mm)

Ultra‑Low Profile, Full 20 kN Locking Force

Maximum Rigidity in Minimal Height

Need a zero‑point clamp that fits into the tightest Z‑axis clearances? The PM96‑175 delivers 20 kN locking force in an ultra‑compact 175×155×30 mm hardened stainless steel body – only 30 mm high, yet strong enough for heavy pallets and fixture plates. Perfect for machines with limited vertical stroke or low‑profile rotary tables.

Core Benefits – Quick & Clear

•
  20 kN Locking Force
  Same powerful clamping as larger PM96 series units – holds pallets and fixtures rigidly under aggressive cutting conditions. Repeatable positioning <0.005 mm.

•
  Ultra‑Low Profile
  Just 30 mm tall – preserves every millimeter of Z‑axis travel. Ideal for 5‑axis machines, gantry mills, or any setup where vertical clearance is critical.

•
  Dense Mounting Pattern

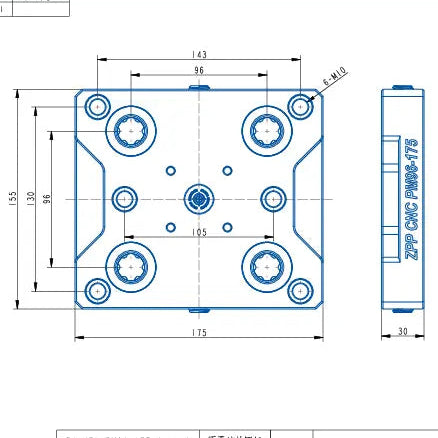

  6×M10 mounting holes (175×155 mm footprint). Provides secure, vibration‑free attachment to machine tables, sub‑plates, or custom risers.

•
  Hardened Stainless Steel
  Corrosion‑resistant and wear‑resistant – maintains sub‑micron repeatability over thousands of cycles. Suitable for wet or dry machining.
