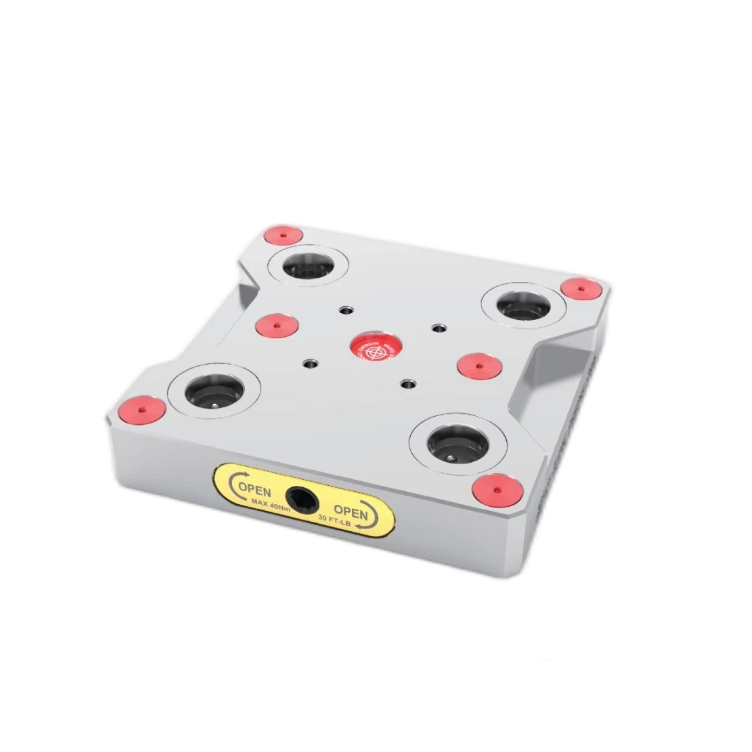

PM96-160 Manual Zero Point Clamping Unit – High Precision (160*160*30mm)

Square Ultra‑Low Profile, Full 20 kN Locking Force

Maximum Density, Minimum Height

Need a zero‑point clamp that fits a tight grid pattern and leaves Z‑axis clearance? The PM96‑160 delivers 20 kN locking force in a compact 160×160×30 mm hardened stainless steel body – only 30 mm high, with a true square footprint for modular pallet systems.

Core Benefits – Quick & Clear

•
  20 kN Locking Force
  High‑precision clamping for medium‑large pallets and fixtures – holds rigidly under heavy milling or high‑speed cutting. Repeatable positioning <0.005 mm.

•
  Ultra‑Low Profile
  Just 30 mm tall – maximizes Z‑axis travel on 5‑axis machines, gantries, or low‑clearance setups. No wasted vertical space.

•

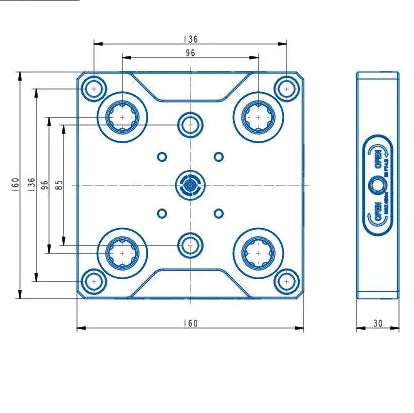

  Square 160×160 mm Footprint
  Perfect for grid‑based workholding. Mount multiple PM96‑160 units in rows and columns for a modular pallet pool – simplifies fixture design and alignment.

•
  Hardened Stainless Steel
  Corrosion‑resistant, wear‑resistant, and extremely rigid. Maintains sub‑micron repeatability over thousands of cycles – ideal for wet or dry machining.
