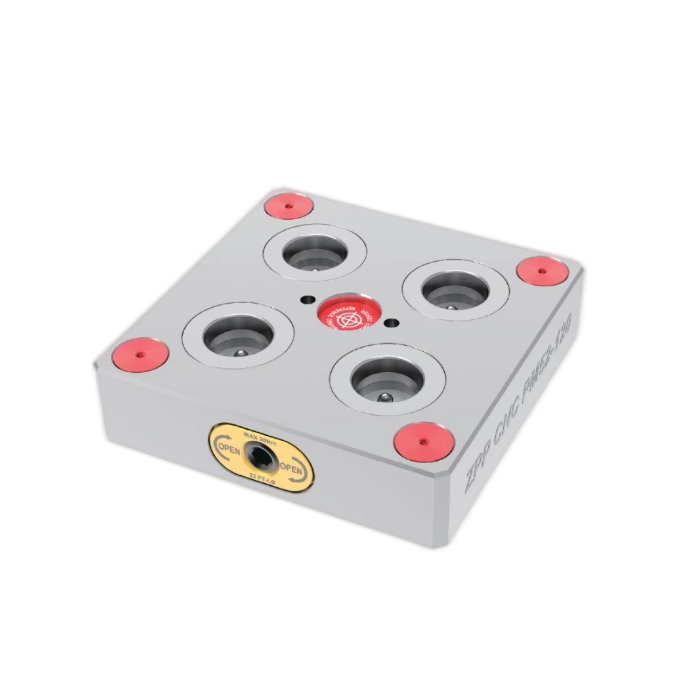

PM52-120 Zero Point Clamping Element (120*120*30mm)

Compact Square Footprint, Full 18 kN Locking Force

High‑Density Clamping for Tight Grids

Need a zero‑point clamp that fits perfectly into a 120 mm grid pattern? The PM52‑120 packs 18 kN locking force into a compact 120×120×30 mm hardened stainless steel body – ideal for pallet systems, fixture plates, or machine tables where space is at a premium but holding power cannot be compromised.

Core Benefits – Quick & Clear

•
  18 kN Locking Force
  Proven, repeatable clamping performance – holds pallets and fixtures rigidly under heavy machining loads. Same reliable force as the TS52 series in a square package.

•
  True Square Footprint

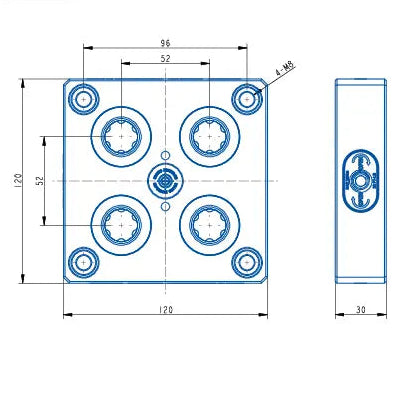

  120 × 120 mm mounting interface, 4‑M10 holes. Perfect for grid‑based workholding systems where equal spacing in X and Y directions simplifies pallet design.

•
  Low Profile & Hardened Stainless Steel
  Only 30 mm high – preserves Z‑axis travel. Corrosion‑resistant and wear‑resistant, maintaining <0.005 mm repeatable positioning over thousands of cycles.

•
  Quick‑Change Ready
  Integrates seamlessly into manual or semi‑automated zero‑point systems. Swap fixtures in seconds – reduce setup time by up to 80%.
