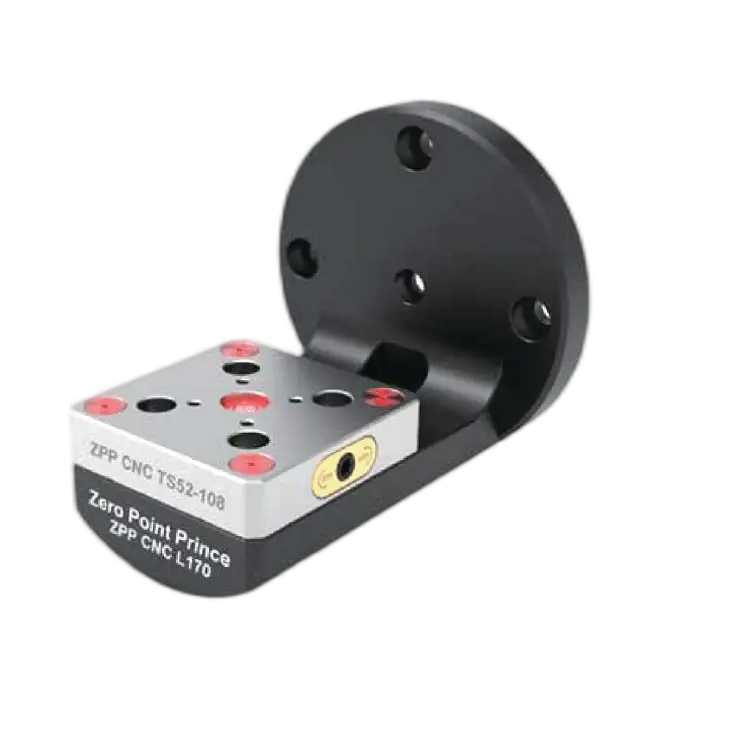

L170 (L Plate) Zero Point Fixture(D168*190mm)
  • L170 (L Plate) Zero Point Fixture(D168*190mm)
  • L170 (L Plate) Zero Point Fixture(D168*190mm)
L170 (L Plate) Zero Point Fixture(D168*190mm)

L170 (L Plate) Zero Point Fixture(D168*190mm)

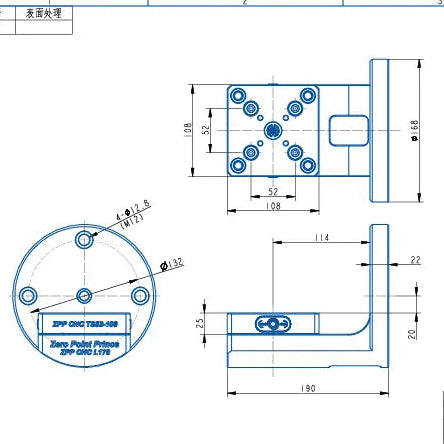

Parameter Detail
Model L170 (L Plate)
Dimensions D168 × 190 mm
Material Hardened Steel
Locking Force – (depends on zero‑point clamp used)
Locking Method – (via ZPPCNC pull studs)
Weight 10.2 kg
Application Range For ZPPCNC

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • L‑Shape for Vertical Machining
    Creates a true 90° vertical mounting face (190 mm height). Mount vises, dedicated fixtures, or tombstones on the vertical side – machine part ends, sides, or undercuts without re‑fixturing.
  • ZPPCNC Zero‑Point Compatible
    Designed specifically for ZPPCNC systems. Add pull studs to the base (sold separately) for sub‑minute changeovers with <0.005 mm repeatability – swap the entire L‑plate and attached workholding as one unit.
  • Rigid Hardened Steel Construction
    One‑piece hardened steel – eliminates flex and vibration under heavy cutting loads. 10.2 kg mass dampens harmonics for better surface finish.
  • Interference‑Free Geometry
    Well‑designed structure avoids machining interference – tools can reach the workpiece from multiple angles without colliding with the L‑plate or adjacent fixtures.
applicable scene

Key Use Cases

  • Automotive & Heavy Machinery – Mount a vise on the vertical face to machine the ends of long brackets, housings, or hydraulic components.
  • Mold Manufacturing – Secure mold inserts or core pins vertically for side‑machining operations – no need for a dedicated right‑angle head.
  • High‑Mix Production Cells – Keep multiple L‑plates pre‑fixtured with different part families – swap them via zero‑point in seconds.

Add Vertical Flexibility to Your Zero‑Point System Today

The ZPP L170 L‑plate brings hardened steel rigidity, a precise 90° angle, and ZPPCNC zero‑point compatibility together – faster changeovers, more machining options, and one less dedicated fixture to build.
Downloads
File Name Size
3D Model 780.39 kB Download Now
