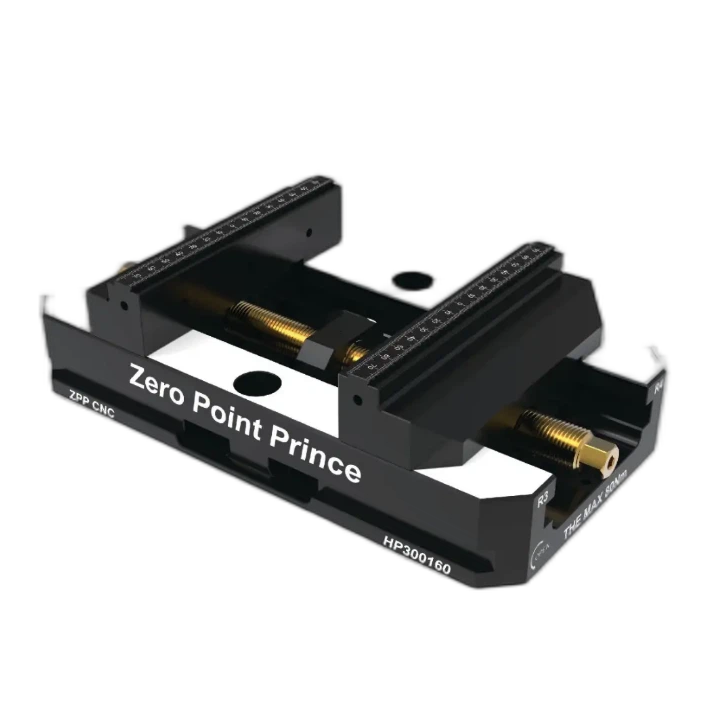

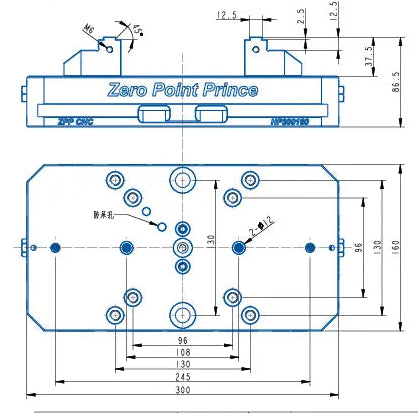

HP300160 Manual Quick-Release Series – Steel Jaw (300*160*86.5mm)

Lightened Hardened‑Steel Performance for Medium‑Large Workpieces

Balance Between Mass & Rigidity

Need the durability of hardened steel but want to reduce table load? The HP300160 Steel Jaw version sheds weight (15.7 kg vs. 23.8 kg of the base series) while maintaining the same 22 kN clamping force – giving you easier handling and faster axis acceleration without sacrificing holding power.

Core Benefits – Quick & Clear

•
  Lighter All‑Steel Construction
  At just 15.7 kg, this hardened steel jaw fixture reduces rotational inertia by ~35% compared to the full‑size base model. Ideal for rotary tables and indexers where weight matters.

•
  Full 22 kN Clamping Force
  Same powerful clamping as the larger HP300160 base series: 22 kN @ 80 Nm torque. Holds medium‑large workpieces (shafts up to 200 mm, housings up to 220 mm) with zero deflection.

•
  Wide & Flexible Clamping Range
  Forward 0–209 mm / Reverse 76–225 mm – accommodates both narrow parts and wider components. Reverse clamping profile adapts to irregular shapes.

•
  Quick‑Release, Tool‑Free Changeover
  Manual swap in <60 seconds – reduces downtime by 50% versus bolted jaws. Perfect for batch production with frequent part changes.
