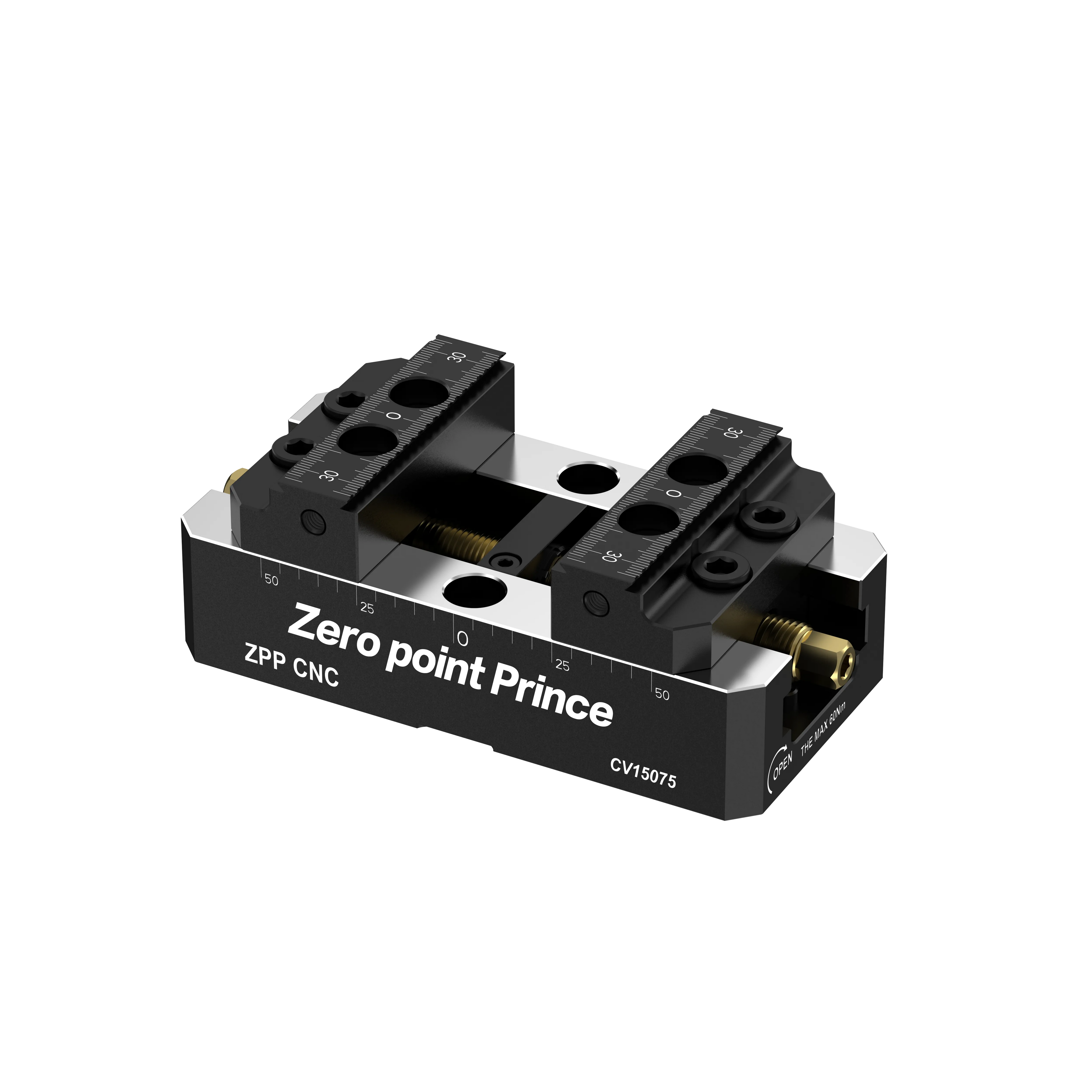

CV15075 Self-Centering Vise(150*75*56mm)

CV15075 Self-Centering Vise(150*75*56mm)

$510.00
Skip to product information
CV15075 Self-Centering Vise(150*75*56mm)
  • CV15075 Self-Centering Vise(150*75*56mm)
  • CV15075 Self-Centering Vise(150*75*56mm)
CV15075 Self-Centering Vise(150*75*56mm)

CV15075 Self-Centering Vise(150*75*56mm)

Parameter Detail
Model CV15075 (Steel Jaw)
Dimensions 150 × 75 × 56 mm
Material Hardened Steel
Forward Clamping Range 0 – 90 mm
Reverse Clamping Range 41 – 126 mm
Clamping Force 14 kN @ 60 Nm
Maximum Torque 60 Nm
Weight 3 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Self‑Centering Action
    Both jaws move simultaneously toward the center – the workpiece is always positioned exactly on the machine’s centerline. Eliminates edge finding and reduces setup time by up to 70%.
  • Extended Clamping Range
    Forward: 0‑90 mm / Reverse: 41‑126 mm. One vise covers small parts and larger workpieces up to 126 mm – no need to swap vises for different widths.
  • 14 kN Clamping Force @ 60 Nm
    Reliable, repeatable clamping for medium‑to‑large workpieces – holds parts securely during milling, drilling, and finishing in aluminum, composites, and mild steel.
  • Compact & Interference‑Free
    150×75 mm footprint, only 56 mm high – fits easily on 5‑axis trunnions, rotary tables, or pallet pools. Well‑designed structure avoids machining interference during complex multi‑axis contouring.
  • Hardened Steel Construction
    Rigid, wear‑resistant, and durable – eliminates jaw lift and deformation under normal loads. Built for long production runs and versatile shop floor use.
applicable scene

Key Use Cases

  • Aerospace & Medical – Clamp medium‑large brackets, housings, or implants up to 126 mm wide – self‑centering ensures perfect alignment on 5‑axis trunnions.
  • Precision Engineering – Secure a variety of components from 20 mm to 120 mm – one vise covers many part families without jaw changes.
  • Palletized Workflows – Mount on zero‑point pallets (pull studs – sold separately) for sub‑minute changeover of the entire vise – ideal for high‑mix, high‑precision production.

Center Instantly, Machine Confidently – Extended Range, Compact Size

The CV15075 self‑centering vise combines a versatile 0‑126 mm clamping range, 14 kN holding force, and hardened steel durability – faster setups, perfect centerline repeatability, and zero compromise on rigidity for medium‑to‑large components.
Downloads
File Name Size
3D Model 646.16 kB Download Now
