Introduction: Why Zero-Point Plates Matter in CNC Machining
In modern manufacturing, reducing CNC setup time and improving workholding accuracy are essential.
A Zero-point plate is a high-efficiency solution that enables fast fixture positioning and repeatable accuracy, making it a key component in advanced CNC workholding systems.

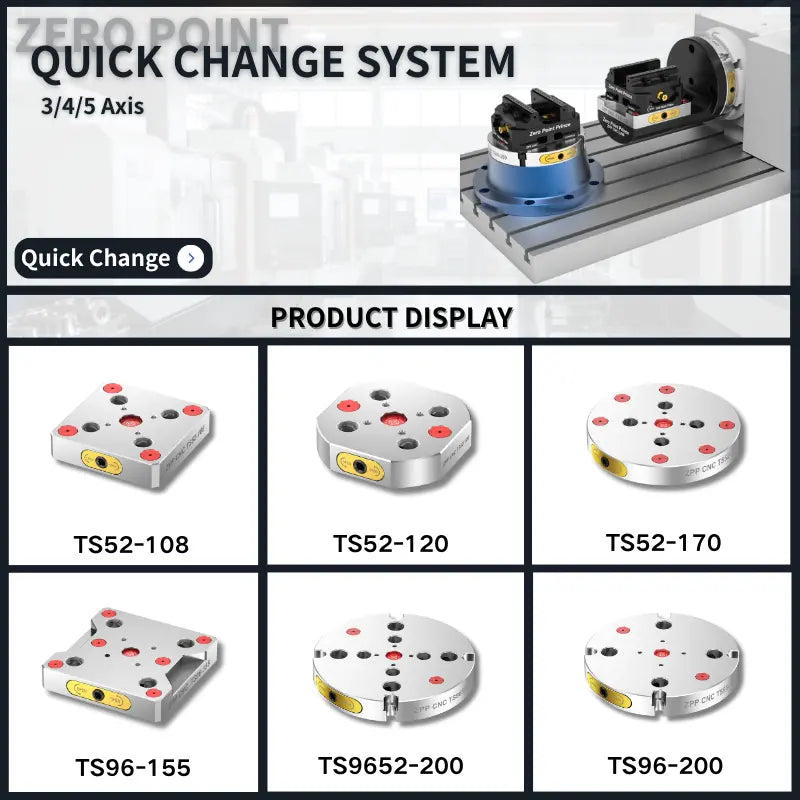

What Is a Zero-Point Plate?
A Zero-point plate for CNC machining is a precision base plate installed on the machine table. It provides a fixed reference point that allows fixtures to be mounted and removed within seconds.
Key Benefits:
- Fast changeover
- Repeatability up to 0.005 mm
- Reduced downtime
- Higher productivity
Types of Zero-Point Plates：
Manual Zero-Point Plate
A manual Zero-point plate uses mechanical locking (such as screws or levers) to clamp fixtures. It is a cost-effective CNC fixture plate solution.
Advantages:
- Lower cost
- Easy maintenance
- No air supply required
Disadvantages:
- Slower operation
- Operator-dependent
Pneumatic Zero-Point Plate：
A pneumatic Zero-point plate uses compressed air for automatic clamping and release. It is widely used in automated CNC machining and 5-axis applications.
Advantages:
- Fast clamping
- Consistent force
- Automation-ready
Disadvantages:
- Higher cost
- Requires air system
Manual vs Pneumatic Zero-Point Plate Comparison
| Feature | Manual Zero-Point Plate | Pneumatic Zero-Point Plate |
|---|---|---|
| Speed | Medium | Very Fast |
| Cost | Lower | Higher |
| Automation | Low | High |
| Application | Small batch |
Mass production |
How to Choose the Best Zero-Point Plate
Choose a manual Zero-point plate for cost-sensitive operations.
Choose a pneumatic Zero-point plate for high-efficiency and automation.
FAQ
Q1: What is a Zero-point plate?
A Zero-point plate is a quick-change CNC fixture base that improves setup speed and positioning accuracy.
Q2: Is a Zero-point plate worth it?
Yes, it reduces setup time and increases machine utilization.
Q3: Manual vs pneumatic Zero-point plate?
Manual is economical; pneumatic is faster and automation-friendly.
Conclusion
A Zero-point plate is essential for improving CNC efficiency, reducing setup time, and achieving consistent machining results.
