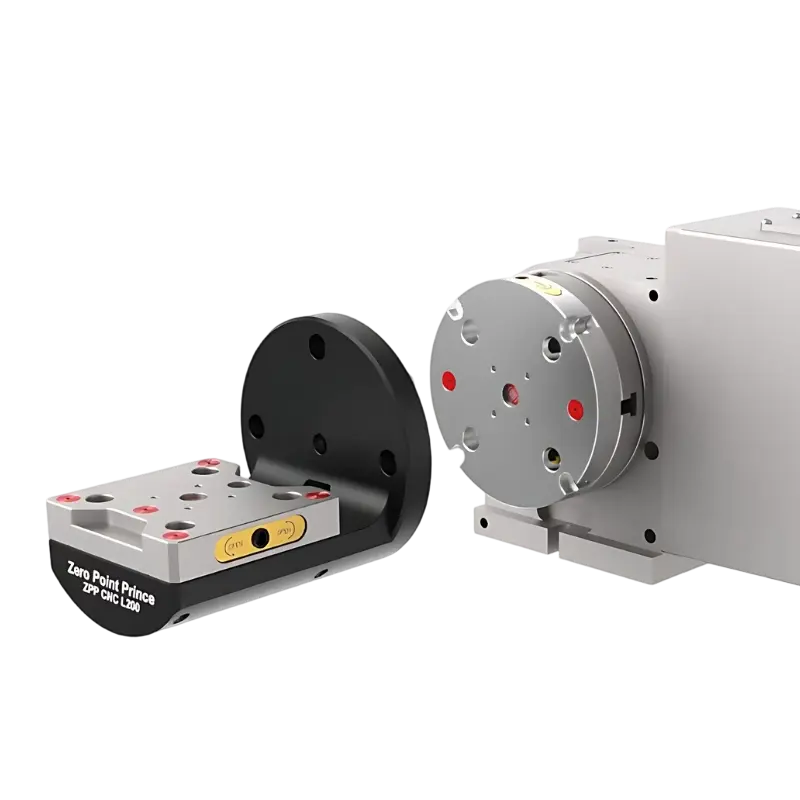

4-Axis Machining Workholding: Why L-Plates Improve Precision and Efficiency

In many 4-axis machining operations, shops invest heavily in advanced machine tools but overlook a critical factor: workholding.

In reality, machining accuracy, stability, and overall efficiency are often determined not by the machine itself, but by how securely and precisely the workpiece is held. Poor fixture design leads to vibration, inconsistent tolerances, and wasted spindle time.

Among modern workholding solutions, L-plates have become a key component in improving both precision and productivity in 4-axis machining.

1. Geometric Access vs. Rigidity: The Core Balance in 4-Axis Machining

The advantage of 4-axis machining lies in its ability to perform multi-side operations through rotary motion, significantly reducing setup changes.

However, this introduces a fundamental challenge:

👉 Maximizing machining access while maintaining clamping rigidity

Different workholding methods perform very differently in this balance:

• 3-jaw chucks
  Suitable for cylindrical parts, but often create long overhangs in multi-side machining, reducing rigidity and increasing vibration.
• Split-type L-plates
  Modular structures introduce multiple interfaces, which can lead to micro-deformation and reduced repeatability over time.
• One-piece L-plates (Recommended)
  • Integrated vertical-horizontal structure improves bending rigidity
  • Fewer interfaces reduce tolerance stack-up
  • Open design improves tool accessibility and reduces interference

👉 Result: Better surface finish, improved tool life, and more stable machining.

2. Repeatability Matters: Why ~0.01 mm Makes a Difference

In precision machining, repeatability directly determines process stability and final part quality.

A typical comparison:

• Split fixtures: ±0.02 mm (or worse over time)
• One-piece L-plates: ~0.01 mm repeatability

This difference becomes critical in:

• Multi-angle machining
• Batch production
• Tight tolerance components

Key factors influencing repeatability:

• Material stiffness and elasticity
• Contact surface flatness and machining accuracy
• Structural load distribution

👉 Improved repeatability means fewer rejected parts and more consistent quality.

3. Structural Design: Maximizing Accessibility Without Sacrificing Stability

Traditional fixtures often struggle with:

• Tool interference
• Limited machining angles
• Reduced rigidity due to bulky structures

Optimized L-plate design solves these issues by:

• Reducing base footprint → More machining space
• Improving tool access angles → Less repositioning
• Enhancing rigidity → Better performance under heavy cutting

👉 This allows complex geometries to be machined more efficiently in fewer setups.

4. Material & Manufacturing: Why Process Determines Performance

Even the best design cannot perform without the right material and manufacturing process.

High-performance L-plates typically feature:

• Forged structure → Aligns grain flow for higher strength
• Heat treatment → Improves hardness and reduces residual stress
• Integrated construction → Eliminates weak points such as joints or welds

Compared to assembled structures, these features provide:

• Higher rigidity under load
• Reduced vibration
• Long-term dimensional stability

5. ROI and Efficiency: Reducing Setup Time with Zero Point Systems

In many shops, setup time is a hidden bottleneck.

If operators spend excessive time aligning fixtures, even the most advanced 4-axis machine cannot reach its full productivity.

By integrating a Zero Point System, L-plates can enable:

• Fast and repeatable positioning (within seconds)
• Consistent reference alignment
• Reduced setup errors across multiple operations

👉 The result:

• Increased spindle utilization
• Shorter production cycles
• Higher return on investment (ROI）

  ---

  Conclusion

  In 4-axis machining, L-plates are more than simple fixtures—they are a critical factor in achieving precision, repeatability, and efficiency.

  A well-designed L-plate system can:

  • Maintain repeatability around ~0.01 mm
  • Improve rigidity and reduce vibration
  • Maximize machining accessibility
  • Significantly reduce setup time

  👉 Ultimately, selecting the right workholding solution is essential for stable, efficient, and high-quality machining in complex multi-angle applications.
