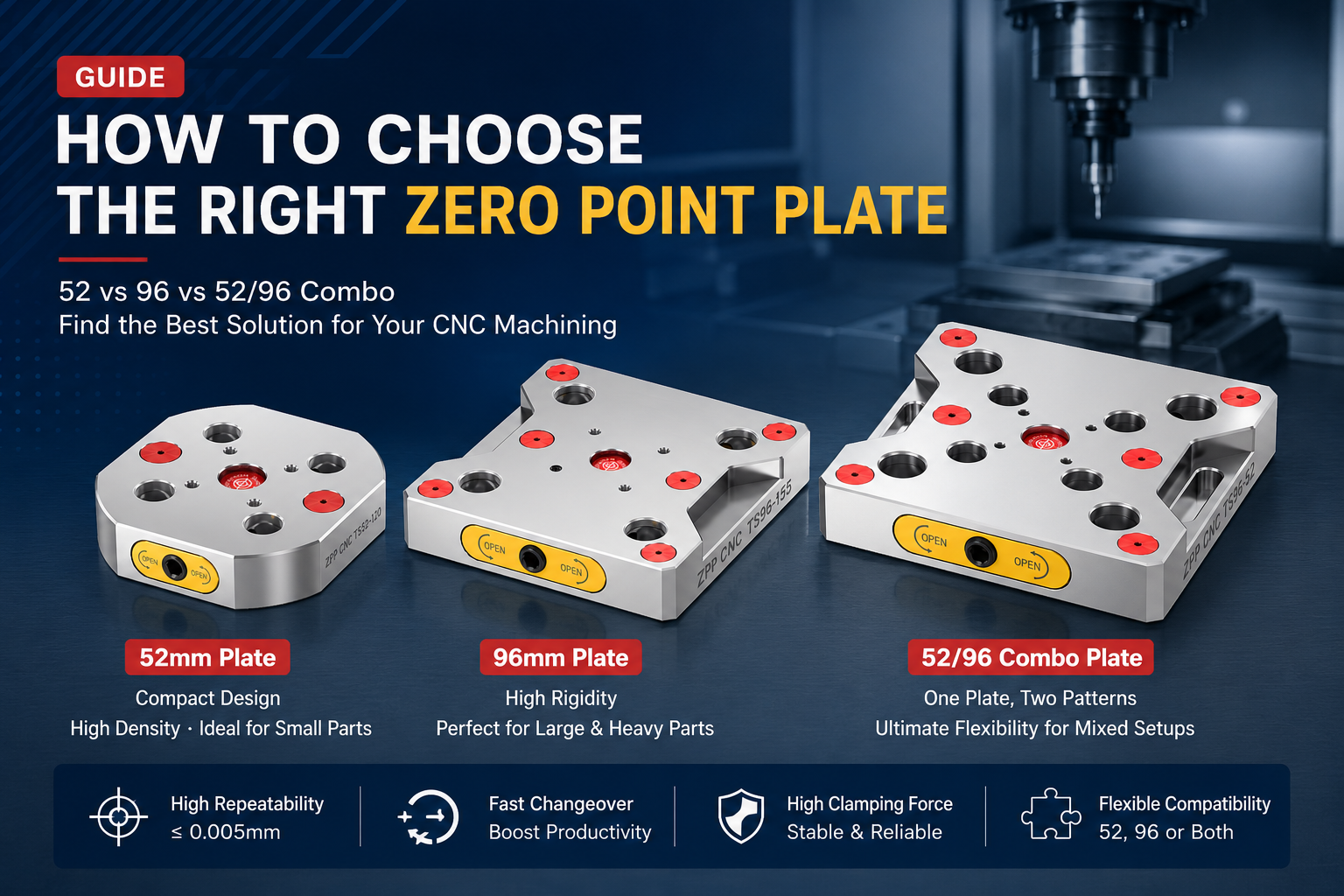

🔧 How to Choose the Right Zero Point Plate: 52 vs 96 vs 5296 Combo

📌 Introduction

When selecting a zero point clamping system, most users focus on clamping force or automation.
However, the most critical decision actually comes first:

👉 Choosing the correct plate size — 52 mm or 96 mm

This decision directly affects your machine utilization, fixture flexibility, and overall productivity.

📌 What Does 52 and 96 Mean?

The numbers 52 and 96 refer to the center distance (in mm) between pull studs.

They are the two most widely used standards in zero point workholding systems.

Both systems provide:

• Repeatability up to ±0.005 mm

• Fast changeover capability

• Compatibility with CNC automation

🧩 1. 52 mm Zero Point Plate

✅ Best for

• Small to medium workpieces

• 5-axis machining centers

• Multi-vise setups

• High-density fixture layouts

💡 Key Advantages

• Compact size → maximizes machine space

• Allows more fixtures per setup

• Ideal for precision machining

• Typical clamping force around 20kN

🧠 Summary

👉 Choose 52 if your priority is density and flexibility

🧩 2. 96 mm Zero Point Plate

✅ Best for

• Large workpieces

• Heavy-duty machining

• High rigidity requirements

• Tombstone fixtures (HMC)

💡 Key Advantages

• Larger spacing → higher stability

• Better vibration resistance

• Stronger clamping performance

• Ideal for roughing operations

🧠 Summary

👉 Choose 96 if your priority is stability and rigidity

⚖️ 3. 52 vs 96 – Key Differences

🚀 4. What If You Need Both?

This is a common situation for many manufacturers:

• You machine both small and large parts

• You use different sizes of vises

• Your production changes frequently

📌 Solution: 52/96 Combo Zero Point Plate

A combo plate integrates both 52 mm and 96 mm patterns into one single plate.

This allows:

• Mixing different fixture sizes

• Eliminating plate replacement

• Increasing machine uptime

💡 Why Combo Plate Matters

• One plate for all setups

• Maximum flexibility

• Reduced setup time

• Ideal for high-mix production

🧠 Summary

👉 If you are unsure or run mixed production → Choose Combo

🧠 Final Selection Guide

• Small parts → 52

• Large parts → 96

• Mixed production → ⭐ 52/96 Combo
