🔩 How to Choose the Right Zero Point Clamping Method (TS vs PM vs AP) – ZPPCNC Guide

When selecting a zero point clamping system, most users focus on plate size (52 vs 96).

But in real CNC machining applications, the locking mechanism is the true performance differentiator.

At zppcnc, we’ve seen that choosing the wrong locking method can limit efficiency, accuracy, and automation potential.

This guide will help you clearly understand the differences between TS, PM, and AP systems, so you can choose the best solution for your machining workflow.

📌 1. TS System – Side Screw Locking (Entry-Level Choice)

🔧 Structure Features:

• Single screw drive

• Side pushing locking mechanism

• Simple mechanical structure

✅ Advantages:

• Lower cost, ideal for budget-conscious users

• Easy maintenance with minimal components

• No need for air supply

❌ Limitations:

• Limited automation capability

• Strong dependence on manual operation

• Lower efficiency in batch production

👉 Best for:

• Entry-level users

• Manual fixture change scenarios

• Small workshops or low-volume production

📌 2. PM System – Ball Locking (High Precision Core System)

🔧 Structure Features:

• Multiple steel balls evenly distributed

• 360° circumferential clamping

• Self-centering locking design

✅ Advantages:

• Uniform clamping force distribution

• High repeatability (micron-level positioning)

• Excellent stability during machining

👉 Core Principle of Zero Point System:
The pull stud is drawn in and locked by multiple steel balls, ensuring ultra-high positioning accuracy and repeatability.

❌ Limitations:

• Higher cost than TS systems

• More complex internal structure

👉 Best for:

• High-precision CNC machining

• Batch production environments

• 3-axis and 5-axis applications requiring repeatability

📌 3. AP System – Pneumatic Locking (Automation Solution)

🔧 Structure Features:

• Pneumatic-driven locking

• Can be controlled via M-code

• Fully compatible with automation systems

✅ Advantages:

• Fixture change in seconds

• Supports robotic automation (APC / robot loading)

• Minimizes human error

• Maximizes machine uptime

❌ Limitations:

• Requires compressed air system

• Higher initial investment

👉 Best for:

• Automated production lines

• High-volume manufacturing

• Lights-out (unmanned) machining environments

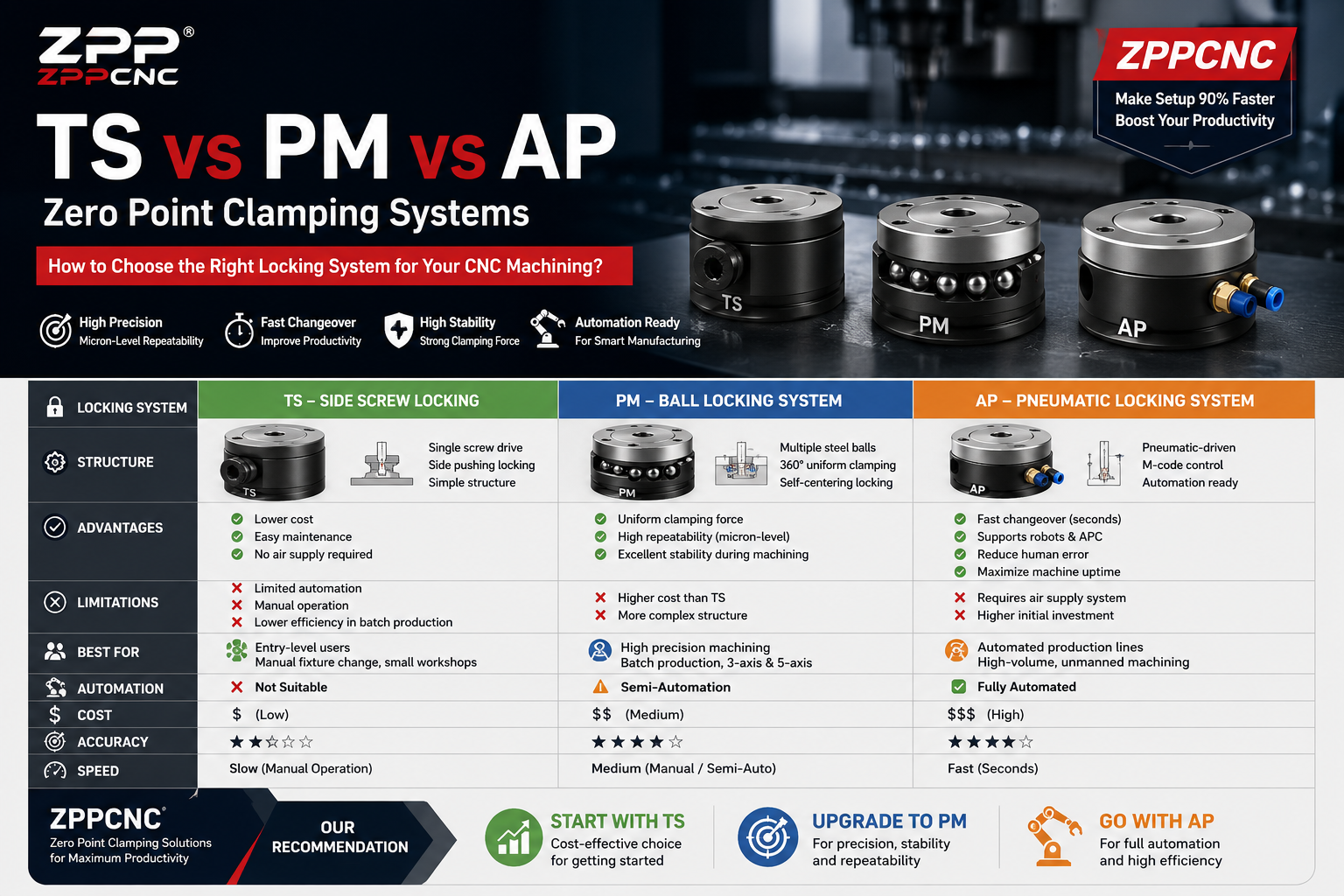

🚀 TS vs PM vs AP – Quick Comparison

🔥 ZPPCNC Recommendation

At zppcnc, we recommend:

• Start with TS if you're new or cost-sensitive

• Upgrade to PM for precision and repeatability

• Go with AP if you're scaling into automation

👉 Many of our customers combine systems to match different production needs.

💡 Final Thoughts

Choosing the right locking system is not just about price — it's about:

• Reducing setup time

• Improving machining accuracy

• Enabling automation scalability

If your goal is to reduce CNC setup time by 90% and improve repeatability, selecting the correct system is critical.

📩 Need Help Choosing?

Not sure which system fits your application?

👉 Comment or message zppcnc to get a tailored solution for your machining setup.
