CNC Side Clamp Vise: The Complete Guide to Side Clamping for CNC Milling

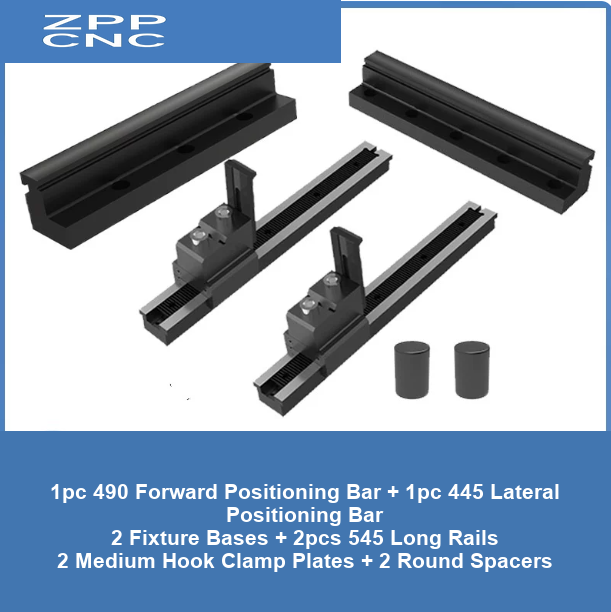

ZPP ZP405S CNC side clamp vise with 450 mm T-slot slide track

Workholding is one of the most important decisions in CNC milling. A vise, strap clamp, fixture plate, or zero point system can all be effective, but the right solution depends on the workpiece, machining operation, required tool access, and production volume. When conventional top clamping becomes a limitation, a CNC side clamp can provide another practical approach.

Side clamping secures a workpiece from its edge or side while keeping more of the top surface available for machining. This can be useful for plates, rectangular components, irregular parts, prototypes, small-batch production, and setups where tool clearance is a priority.

This guide explains what a CNC side clamp is, how it works, how its components work together, how it compares with traditional CNC vises and strap clamps, and how to choose and set up a side-clamping system. It also looks at the ZPP ZP405S Side Clamp Vise as a modular example.

Key Takeaways

  • A CNC side clamp secures a workpiece from the side or edge while preserving access to the top machining surface.
  • Side clamping can be useful for plates, rectangular parts, irregular workpieces, prototypes, and small-batch CNC machining.
  • The ZPP ZP405S uses a 450 mm T-slot slide track for adjustable clamping positions.
  • The modular system combines a fixture base, T-slot slide track, positive positioning bar, hook-type pressure plate, and cylindrical spacers.
  • Side clamps can complement broader CNC workholding strategies, including zero point and 5-axis setups.

What Is a CNC Side Clamp Vise?

A CNC side clamp vise is a workholding device designed to locate and secure a workpiece from the side rather than relying only on conventional jaw or top-down clamping. The clamping components are mounted to a fixture base or machine-table T-slot system, allowing the operator to position the workpiece and apply pressure at an appropriate edge or side.

The main advantage is not that a side clamp replaces every other type of workholding. Instead, it provides another configuration when conventional clamping restricts access, does not suit the workpiece geometry, or requires a dedicated fixture.

For CNC milling, the useful combination is positioning + adjustable clamping + tool access. The exact setup should always be selected according to the workpiece geometry, machine table, cutting forces, and machining operation.

Why Traditional CNC Workholding Can Become a Limitation

Traditional CNC vises are highly useful for many prismatic parts, but some jobs create different requirements. A wide plate may need support over a large area. An irregular component may not present parallel surfaces for standard vise jaws. A deep pocketing operation may also require more unobstructed access around the top and sides of the workpiece.

Strap clamps can provide flexible positioning, but they may occupy space above the workpiece. A dedicated fixture can solve a specific production problem but may be less flexible when part dimensions or designs change.

These situations are where a modular side clamping approach can become useful.

How Does a CNC Side Clamp Work?

Step 1: Position the Workpiece

The workpiece is located against a suitable datum or positive positioning element. Proper positioning establishes where the part sits relative to the machine coordinate system and the intended machining features.

Step 2: Adjust the Clamping Location

A T-slot slide track allows the clamping components to be moved to a suitable location for the workpiece. The goal is to keep the clamp close enough to provide stable support while maintaining the required machining clearance.

Step 3: Apply Clamping Pressure

A hook-type pressure plate or comparable clamping element contacts the workpiece at the selected edge or surface. The pressure should be sufficient for the operation without deforming or damaging the component.

Step 4: Verify Clearance and Stability

Before machining, verify that the workpiece is fully supported, the clamping elements are secure, and the toolpath has sufficient clearance from the workholding system.

Key Components of a CNC Side Clamp

1. Fixture Base

The fixture base provides the foundation for the side-clamping arrangement and connects the system to the machine-table setup.

2. 450 mm T-Slot Slide Track

The extended T-slot slide track provides an adjustable path for positioning the clamping components. This modular approach makes the setup adaptable to different workpiece sizes and clamping locations.

3. Positive Positioning Bar

The positive positioning bar helps establish a repeatable reference for the workpiece. Positioning should be treated separately from clamping: the clamp holds the part, while the locating system establishes where the part is.

4. Hook-Type Pressure Plate

The hook-type pressure plate provides the clamping interface. Its geometry allows the operator to apply pressure at the edge or side of a suitable workpiece.

5. Cylindrical Spacers

The cylindrical spacers provide additional setup flexibility when adapting the clamping arrangement to different part dimensions and heights.

CNC Side Clamp Features and Performance

Feature ZP405S Configuration Workholding Benefit
Slide track 450 mm T-slot rail Adjustable clamping position
Design Modular Flexible fixture configuration
Positioning Positive positioning bar Defined workpiece location
Clamping Hook-type pressure plate Edge/side clamping capability
Construction High-strength steel Durable shop-floor use
Setup Adjustable T-slot system Adaptable to different jobs

CNC Side Clamp vs. Traditional CNC Vise

Factor CNC Side Clamp Traditional CNC Vise
Clamping approach Side/edge clamping Jaw clamping
Top-surface access Can leave more top area accessible May be limited by jaws and part geometry
Irregular parts Flexible when suitable clamping surfaces exist May require custom jaws or additional support
Large plates Useful for flexible positioning May require special jaws or fixture support
Fixture flexibility High with modular components Usually centered around a fixed jaw configuration
Best use Flexible, varied workholding requirements General-purpose prismatic-part machining

The comparison is not about choosing one system for every application. A CNC vise remains an excellent solution for many parts, while a side clamp can be useful when edge access, part size, or fixture flexibility becomes more important.

When Should You Use a CNC Side Clamp?

Large Plates

Large or thin plates can be difficult to hold with conventional jaw configurations. A side-clamping arrangement can provide flexible positioning while leaving more of the machining surface accessible.

Rectangular Workpieces

Rectangular components with suitable side surfaces can be located and clamped without relying entirely on a conventional vise.

Irregular Parts

Irregular components may not provide two parallel faces for standard jaws. A modular side-clamping setup can sometimes provide a more practical contact arrangement, provided the workpiece is properly supported.

Prototype and Small-Batch Machining

When part dimensions or designs change frequently, a modular fixture can reduce the need to manufacture a new dedicated fixture for every job.

Operations Requiring Better Tool Access

When a machining operation requires access across a large portion of the top surface, moving the clamping point toward the side or edge can help create a more open machining area.

CNC Side Clamping for 3-Axis and 5-Axis Machining

3-Axis CNC Milling

On a 3-axis milling machine, a T-slot side-clamping arrangement can be useful for plates, blocks, and parts that benefit from open top access. The operator should verify that the clamp remains outside the intended toolpath and that the workpiece has sufficient support.

4-Axis Machining

Rotary machining introduces additional considerations for clearance and fixture envelope. Side clamping can be useful when the fixture needs to provide support without unnecessarily increasing obstruction around the workpiece.

5-Axis Machining

5-axis machining places greater emphasis on fixture height, collision avoidance, and tool access. A compact and configurable workholding arrangement can help designers plan the fixture envelope around multiple tool orientations.

For broader fixture strategies, see our Zero Point Clamping System Complete Guide and related ZPP CNC workholding resources.

CNC Side Clamp vs. Strap Clamp

Factor Side Clamp Strap Clamp
Position adjustment Integrated sliding adjustment Manual placement
Top access Can preserve more top access May occupy space above the part
Workpiece flexibility Useful for varied geometries Depends strongly on available contact surfaces
Repeatable positioning Can use a positioning bar Often depends more on setup method
Fixture flexibility Modular Flexible but typically more component-dependent

How to Set Up a CNC Side Clamp

Step 1: Mount the Fixture Base

Secure the fixture base to a suitable machine-table or fixture mounting position.

Step 2: Install the T-Slot Slide Track

Install and align the slide track so that the available adjustment range covers the intended workpiece position.

Step 3: Establish the Datum

Use the positive positioning bar or another appropriate locating feature to establish the workpiece reference.

Step 4: Position the Workpiece

Place the workpiece against the locating surfaces and confirm that the supported areas are stable.

Step 5: Adjust the Pressure Plate

Move the hook-type pressure plate to a suitable clamping location and apply controlled pressure.

Step 6: Check Tool Clearance

Review the programmed toolpath or simulate the operation to confirm that the tool, holder, spindle, and workpiece can move without contacting the workholding components.

Step 7: Verify Stability

Confirm that the workpiece cannot shift under the expected cutting forces before beginning production machining.

Important: The correct clamping configuration depends on the workpiece material, geometry, cutting forces, machine setup, and machining operation. Always verify the setup before cutting.

How to Choose a CNC Side Clamp

1. Workpiece Size

Determine the overall dimensions and identify where a side clamp can make reliable contact.

2. Workpiece Shape

Check whether the part has suitable edges, faces, or reference surfaces for side clamping and positioning.

3. Required Tool Access

Consider which surfaces need to be machined and whether the workholding system will obstruct the cutter or holder.

4. T-Slot Table Configuration

Make sure the fixture mounting arrangement is compatible with the machine table and available T-slots.

5. Cutting Forces

The clamping arrangement must be appropriate for the direction and magnitude of the forces generated during the operation.

6. Production Volume

For high-volume production of one dedicated part, a dedicated fixture may be justified. For varied jobs, prototypes, and small batches, modular workholding can provide more flexibility.

ZPP ZP405S Side Clamp Vise

The ZPP ZP405S Side Clamp Vise is a modular CNC workholding solution designed for flexible positioning and secure clamping on CNC milling setups.

Its configuration includes a durable fixture base, a 450 mm T-slot slide track, a positive positioning bar, a hook-type pressure plate, and two cylindrical spacers. The combination is intended to give the operator a configurable way to position and clamp different workpieces without relying on a single fixed fixture geometry.

What Is Included?

  • 1 × Fixture Base
  • 1 × T-Slot Slide Track
  • 1 × Positive Positioning Bar
  • 1 × Hook-Type Pressure Plate
  • 2 × Cylindrical Spacers

ZP405S vs. a Dedicated CNC Fixture

Factor ZP405S Modular Side Clamp Dedicated Fixture
Flexibility High Usually lower
Part variety Suitable for varied jobs Usually optimized for specific parts
Reconfiguration Adjustable Often requires redesign or replacement
Development effort Lower for changing jobs Can be higher for custom designs
Best fit Prototype, small-batch, varied production Repeat production of defined parts

Common CNC Side Clamping Mistakes

Mistake 1: Poor Workpiece Support

Clamping force cannot compensate for inadequate support. The workpiece should have a stable support arrangement appropriate for the machining operation.

Mistake 2: Incorrect Clamping Location

Placing the clamp too far from the supported area can increase deflection. Clamping should be planned together with the workpiece support and cutting direction.

Mistake 3: Ignoring Cutting Forces

A setup that works for a light finishing pass may not be appropriate for aggressive roughing. Review the actual machining conditions.

Mistake 4: Blocking Tool Access

Always check the complete tool and holder envelope, not only the cutter tip.

Mistake 5: Skipping the Positioning Step

Clamping and locating are different functions. Establish the workpiece position first, then apply clamping force.

Mistake 6: Not Checking T-Slot Clearance

Confirm that mounting hardware and sliding components are properly seated and do not interfere with the machine table or other fixture components.

CNC Side Clamp Maintenance

Like other CNC workholding equipment, a side clamp should be kept clean and inspected regularly. Remove chips from T-slots and sliding surfaces, inspect the pressure plate and threads, check positioning surfaces for damage, and keep moving components clean and appropriately lubricated according to the manufacturer's recommendations.

Frequently Asked Questions

What is a CNC side clamp?

A CNC side clamp is a workholding device that secures a workpiece from its side or edge, often using a modular T-slot mounting arrangement.

What is a side clamp used for in CNC machining?

It can be used for plates, rectangular parts, irregular workpieces, prototypes, and applications where conventional top or jaw clamping limits access or flexibility.

Is a CNC side clamp better than a vise?

Neither is universally better. A traditional CNC vise is often ideal for prismatic parts, while a side clamp can be advantageous when edge clamping, open top access, or flexible positioning is required.

Can a side clamp hold irregular parts?

It can be suitable when the part provides an appropriate contact and support arrangement. The workpiece must be properly supported and the clamping configuration must match the machining forces.

Can I use a side clamp on a 5-axis CNC machine?

A side clamp can be incorporated into some 5-axis setups, but the fixture envelope, clamp height, machine travel, rotary axis movement, and collision clearance must be checked for the specific machine and operation.

What is the advantage of a T-slot side clamp?

A T-slot system allows the clamping components to be positioned along the available track, making the fixture adaptable to different workpiece sizes and clamping locations.

How do I choose a CNC side clamp?

Start with workpiece geometry, size, support requirements, cutting forces, machine-table configuration, tool clearance, and production volume. Then select a system that provides the required positioning and adjustment range.

What is the ZPP ZP405S?

The ZP405S is a modular side clamp vise from ZPP with a 450 mm T-slot slide track, positive positioning bar, hook-type pressure plate, fixture base, and cylindrical spacers.

Recommended CNC Workholding Resources

For a broader workholding strategy, explore these ZPP resources:

Conclusion

A CNC side clamp is not intended to replace every vise, strap clamp, or dedicated fixture. Its value is flexibility: it provides another way to locate and secure a workpiece while preserving access to important machining surfaces.

For shops handling varied workpieces, plates, prototypes, and small-batch CNC machining, a modular T-slot side-clamping system can be a useful part of a broader workholding strategy. The ZPP ZP405S combines adjustable T-slot positioning with positive workpiece location and a hook-type pressure plate to support this type of flexible setup.

Ready to explore the ZP405S? View the ZPP ZP405S Side Clamp Vise.
