Many manufacturers invest heavily in 5-axis CNC machines but still struggle to achieve expected productivity. The machine may be capable of complex multi-face machining, yet slow and inconsistent setup processes can become the real bottleneck.

For the complete 5-axis workholding framework, read our 5-Axis Workholding: Complete CNC Workholding Guide.

Why Traditional Clamping Limits CNC Performance

Traditional setups commonly rely on manual alignment, repeated probing, and operator experience. This creates long setup cycles, inconsistent positioning, and low spindle utilization.

The Shift to Zero Point Workholding Systems

Modern shops are moving toward zero point systems because they standardize the reference between the machine and fixture. Instead of re-aligning every job, operators can use a fixed locating interface and change fixtures quickly.

Explore Zero Point Clamping Systems

For the complete system architecture and selection framework, see our Zero Point Clamping System Complete Guide.

  • Fast fixture positioning
  • Repeatable locating
  • Quick-change workholding
  • Compatibility with CNC vises and modular fixtures

Traditional vs Optimized Setup Workflow

Traditional Workflow

  1. Install vise or fixture
  2. Align manually
  3. Probe multiple times
  4. Adjust
  5. Start machining

Zero Point Workflow

  1. Prepare and preset the fixture offline
  2. Position through the zero point interface
  3. Lock and verify the setup
  4. Start machining

Actual time savings depend on the machine, fixture, part, and process, but eliminating repeated indicating can substantially reduce non-cutting time.

Why Zero Point Is Not a Product — It’s a System

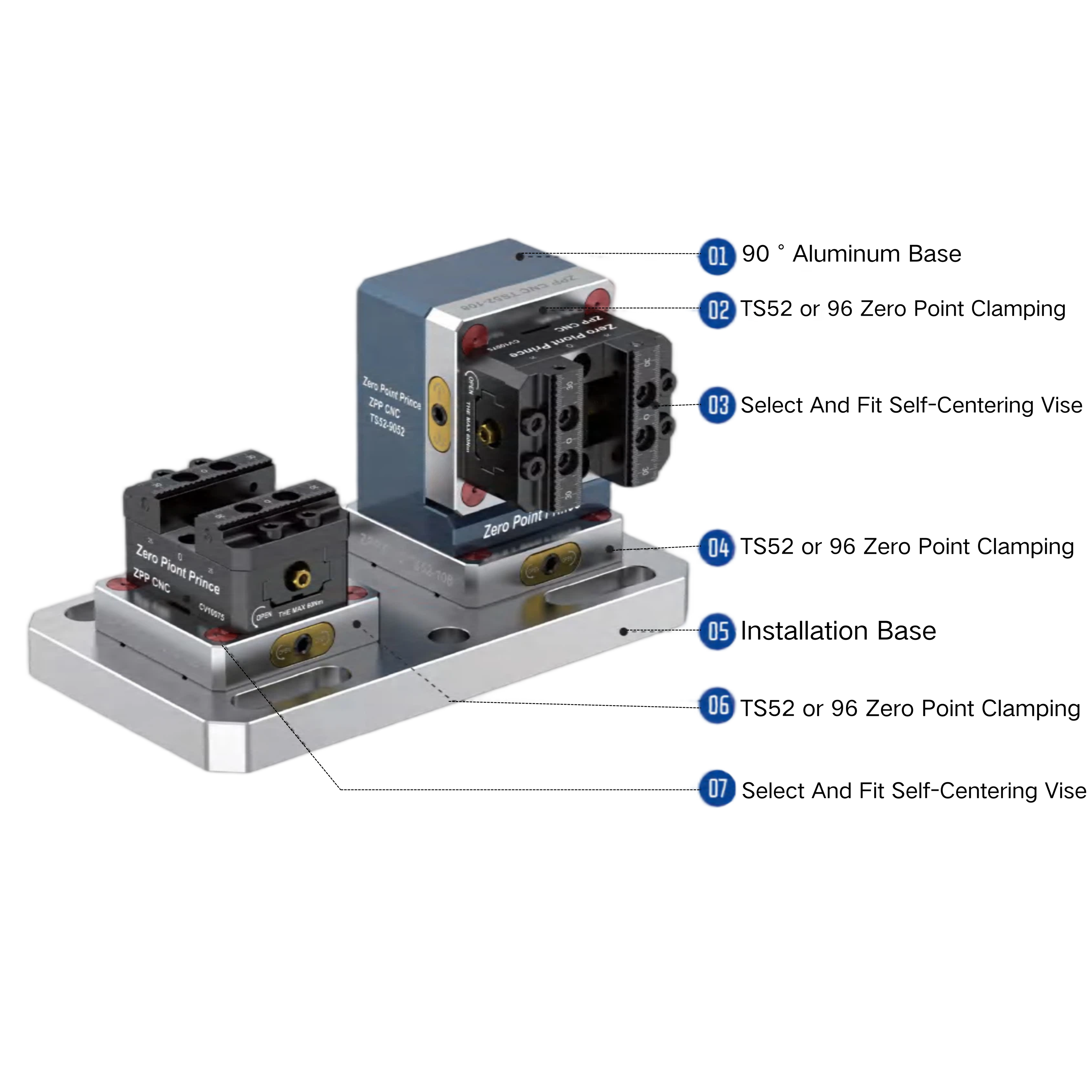

A high-efficiency setup normally includes a reference base, clamping modules, a CNC vise or fixture, and modular extensions. These components should be designed as one workholding architecture.

For 5-axis machining, this architecture should also prioritize tool clearance, rigidity, compact clamping, and repeatable locating.

Best Use Cases for Zero Point Systems

1. 5-Axis Machining

  • Maximize tool access
  • Reduce fixture interference
  • Support multi-face machining

2. Small-Batch Production

  • Frequent changeovers
  • High-mix, low-volume work

3. High-Precision Manufacturing

  • Aerospace
  • Medical
  • Mold and precision components

The Role of 5-Axis Workholding

Zero point positioning solves the machine-to-fixture interface, but a complete 5-axis setup also needs the right clamping geometry. Compact vises, side clamps, dovetail workholding, and pyramid fixtures can expose more of the workpiece while maintaining rigidity.

Use our 5-Axis Workholding pillar guide to compare these approaches and build a system around your part geometry.

Build a Complete CNC Workholding System with ZPP

At ZPP CNC, the goal is not simply to sell individual components. The goal is to help manufacturers create a repeatable workholding workflow.

Related 5-Axis Workholding Resources

FAQ: CNC Setup Optimization

What is the fastest way to reduce CNC setup time?

Standardize the fixture reference, preset workholding offline, and use quick-change locating and clamping where appropriate.

Can zero point systems improve 5-axis machining?

Yes. They can make fixture changes more repeatable while the rest of the workholding system provides access and rigidity.

Do I need a full workholding system?

Not always. The right configuration depends on your machine, part geometry, production mix, and changeover frequency.

Final Takeaway

Efficient CNC production is not only about cutting speed. It is also about how quickly and consistently you can establish the next machining setup.

Start with the 5-Axis Workholding Guide, then select the zero point, vise, and fixture components that match your workflow.
