CNC Self-Centering Vise vs Traditional Vise: Structure, Accuracy, and Application Analysis
Introduction
In modern CNC machining, workholding systems directly determine machining accuracy, efficiency, and production stability.
As manufacturing moves toward higher precision and multi-axis machining (3-axis to 5-axis), the difference between a traditional CNC vise and a self-centering CNC vise is no longer just structural—it represents two fundamentally different machining philosophies.
- Traditional vise: relies on manual alignment and operator experience
- Self-centering vise: relies on mechanical symmetry and automated positioning
This article provides a technical comparison from the perspective of mechanical structure, force distribution, accuracy behavior, and industrial application scenarios.
⚙️1. What Is a Traditional CNC Vise?
A traditional CNC vise is a single-moving jaw clamping system widely used in conventional machining setups.
1.1 Structural Composition
A standard traditional vise consists of:
- Fixed jaw
- Movable jaw
- Lead screw drive system
- Base and guide rails
1.2 Working Principle
The vise operates by rotating a lead screw that drives one jaw toward a fixed jaw, clamping the workpiece from one side.
This creates a single-direction clamping force system:
- One jaw is static
- One jaw applies all clamping force
1.3 Error Sources
Typical sources of inaccuracy include:
- Manual alignment deviation
- Jaw wear inconsistency
- Uneven clamping force distribution
- Operator-dependent setup variation

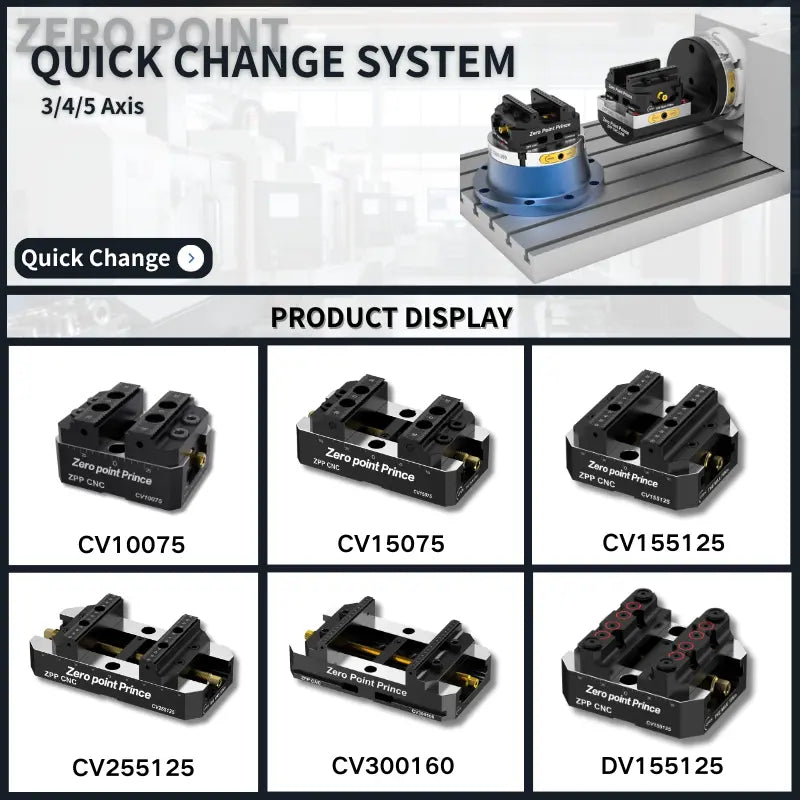

🎯 2. What Is a Self-Centering CNC Vise?
A self-centering CNC vise uses a synchronized dual-jaw mechanism, where both jaws move simultaneously toward the center.
2.1 Structural Composition
- Dual movable jaws
- Synchronized drive mechanism (gear or screw system)
- Central positioning system
- Precision guide rails
2.2 Mechanical Advantages
Compared to traditional systems, self-centering vises provide:
- Symmetrical clamping force
- Balanced stress distribution
- Reduced deformation risk
- Higher repeatability
2.3 Error Reduction Mechanism
Accuracy improvement is achieved through:
- Mechanical synchronization (not operator-dependent)
- Symmetric force application
- Centralized positioning geometry
📊 3. Technical Comparison
3.1 Positioning Method
| Feature | Traditional Vise | Self-Centering Vise |
|---|---|---|
| Alignment | Manual | Automatic |
| Dependency | Operator skill | Mechanical system |
3.2 Repeatability Accuracy
- Traditional vise: ±0.02 to ±0.05 mm (operator dependent)
- Self-centering vise: ±0.005 to ±0.01 mm (mechanically controlled)
👉 Key difference: human variability vs mechanical constraint
3.3 Force Distribution
Traditional vise:
- Single-side force application
- Higher risk of angular deformation
Self-centering vise:
- Symmetrical dual-side force
- Balanced stress distribution
3.4 Setup Efficiency
| Metric | Traditional Vise | Self-Centering Vise |
|---|---|---|
| Setup time | Longer | Shorter |
| Alignment process | Manual | Automatic |
| Batch production efficiency | Moderate | High |
⚡ 4. Industry Trend Analysis
Modern CNC manufacturing is evolving toward:
1. Automation-driven workholding
Reduction of manual setup errors
2. High repeatability production
Consistency across batches
3. Multi-axis machining adoption
Greater geometric complexity and tool accessibility requirements
👉 As a result, self-centering vises are increasingly becoming the standard solution in high-end CNC manufacturing environments.
📉 5. Real Production Impact
In real manufacturing environments, the differences are significant:
Traditional vise systems:
- Longer setup time
- Operator-dependent accuracy
- Inconsistent batch repeatability
Self-centering vise systems:
- Reduced setup time (up to 60–90%)
- Improved consistency
- Better suitability for automation workflows
👉 In high-volume production, this translates directly into:
lower cost per part + higher throughput efficiency
❓ 6. FAQ
Q1: Is a self-centering vise always better than a traditional vise?
Not always. It depends on precision requirements, machining complexity, and budget.
Q2: Why are traditional vises still widely used?
Because they are cost-effective, simple to maintain, and suitable for general machining tasks.
Q3: Is a self-centering vise necessary for 5-axis machining?
Not mandatory, but highly recommended due to improved accessibility and positioning stability.
🟩 Conclusion
The fundamental difference between traditional and self-centering CNC vises lies in their approach:
- Traditional vise → operator-dependent positioning
- Self-centering vise → mechanically controlled symmetry
In modern precision manufacturing, especially in multi-axis and automated production environments, self-centering vises are becoming the preferred solution due to their superior accuracy, efficiency, and repeatability.
