CNC machining depends on consistent material handling. Operators must load raw workpieces, start the machining cycle, remove finished parts, and prepare the next cycle. When this process is repeated across many cycles, manual loading and unloading can become a major part of production time.
CNC machine tending robots automate these repetitive handling tasks. A robot loads the workpiece into the CNC machine, waits for the machining cycle, removes the finished part, and prepares the machine for the next cycle.
CNC machine tending robots automate loading and unloading while the CNC machine performs machining. Reliable automation also depends on stable gripping, repeatable workholding, machine-to-robot communication, and a clear production workflow.
What Are CNC Machine Tending Robots?
CNC machine tending robots are robotic systems designed to handle workpieces before and after CNC machining. Their main job is not to perform the cutting process. Instead, they manage material handling around the machine.
A typical system connects a robot with a CNC machine, gripper, workholding system, sensors, and control signals. The robot receives a workpiece, loads it into the machine, removes the completed part, and repeats the sequence.
This approach is useful when the same handling steps are repeated many times. It can also help manufacturers build more consistent production workflows.
How Do Robots Load and Unload CNC Machines?
Automated CNC loading and unloading normally follows a defined sequence.
- Prepare the workpiece. Raw material is positioned where the robot can access it.
- Pick the workpiece. A robot gripper securely holds the part.
- Load the CNC machine. The robot moves the workpiece into the machining area.
- Confirm machine status. The robot and CNC controller exchange signals before machining begins.
- Run the machining cycle. The CNC machine performs the programmed operation.
- Unload the finished part. The robot removes the machined workpiece.
- Place the finished part. The part is transferred to a defined output location.
The exact sequence depends on the machine, robot, gripper, workholding, and automation controls. The important point is that each step must be repeatable and coordinated.
Typical CNC Machine Tending Workflow
A simple automated workflow can be represented as:
Raw Workpiece → Robot Gripper → CNC Machine → Workholding → Machining → Robot Unloading → Finished Part
Before the robot enters the machine, the CNC controller must indicate that the machine is ready. After loading, the system confirms that the workpiece is correctly positioned and secured. Once machining is complete, the CNC machine signals that unloading can begin.
This communication prevents the robot and machine from operating at the wrong time. It is an important part of reliable CNC machine automation.
Robot Grippers and Workpiece Handling
The gripper is the interface between the robot and the workpiece. Its design depends on part size, geometry, material, weight, surface condition, and production requirements.
A suitable gripper should hold the workpiece securely during movement while allowing fast loading and unloading. The robot path must also provide enough clearance around the CNC machine, fixture, chuck, vise, and other components.
For automated production, handling repeatability is important. A small change in workpiece position can affect how reliably the part enters the workholding system.
CNC Workholding During Automated Machining
Robotic loading does not replace the need for accurate workholding. The workholding system must locate and secure the workpiece consistently after every robot loading cycle.
For CNC automation, a CNC vise can provide repeatable clamping for compatible parts. A zero point clamping system can also support fast and repeatable fixture positioning.
For multi-sided machining, manufacturers can combine automation with 5-axis CNC workholding. The goal is to create a complete workflow in which the robot handles the part and the workholding system maintains its position during machining.

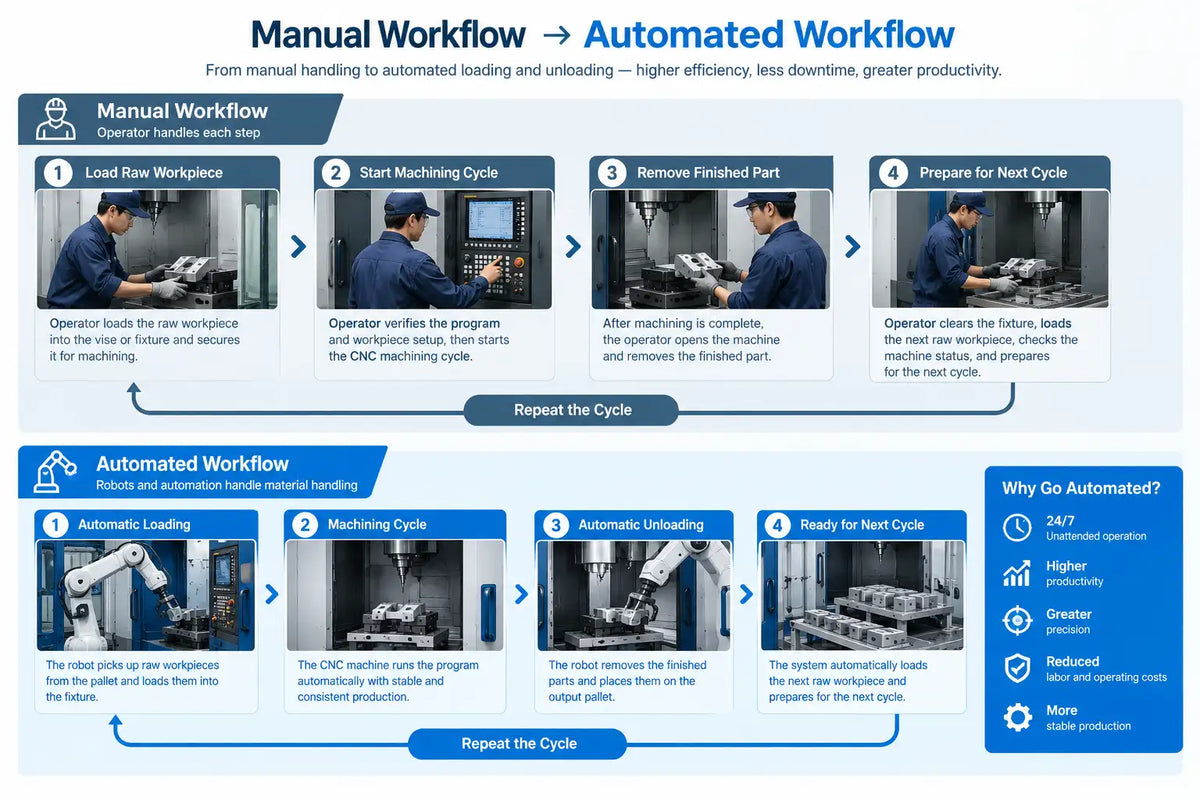

Manual Loading vs. Robotic Loading
| Factor | Manual Loading | Robotic Loading |
|---|---|---|
| Material handling | Operator performs repeated loading and unloading | Robot performs programmed handling cycles |
| Cycle consistency | Can vary between operators and cycles | Designed for repeatable motion |
| Operator involvement | Higher during repetitive production | Reduced for repetitive handling tasks |
| Production scaling | Often depends on available labor | Can support extended automated operation |
Robotic loading is not suitable for every CNC process. The best applications are usually repetitive, structured, and stable enough to define a reliable loading and unloading sequence.
Key Factors When Planning CNC Robot Automation
1. Workpiece Geometry
Part dimensions and geometry determine the required gripper, robot reach, and loading path.
2. Robot Payload and Reach
The robot must handle the workpiece and gripper within its rated payload while reaching all required positions safely.
3. CNC Machine Interface
The robot needs a reliable method to receive machine-ready signals and return cycle-status signals. The interface should be designed around the actual CNC controller and automation requirements.
4. Workholding Repeatability
The workpiece must be located consistently after every loading cycle. Stable workholding helps reduce positioning variation.
5. Part Presentation
Raw parts need a predictable presentation method. Bins, trays, pallets, racks, or automated storage can be used depending on the production workflow.
6. Production Cycle Time
Robot movement should be coordinated with machining time. Excessive handling time can reduce the benefit of automation, while very short machining cycles may require optimized robot motion.
Common CNC Machine Tending Applications
CNC machine tending robots can support many repetitive machining applications, including:
- CNC milling
- CNC turning
- Automated loading and unloading of machining centers
- High-volume production of repeat parts
- Long-cycle machining operations
- Production workflows that require consistent material handling
They can also be integrated into broader CNC automation systems where machining, workholding, material storage, inspection, and part handling are connected.
CNC Machine Tending and Lights-Out Production
One reason manufacturers consider robotic machine tending is the potential to extend production beyond normal operator hours. Once loading, machining, unloading, and part presentation are properly coordinated, a CNC cell can support longer periods of unattended or reduced-attendance operation.
However, lights-out machining requires more than a robot. The complete system should account for workpiece supply, tool life, chip management, workholding reliability, machine alarms, part detection, and recovery procedures.
How CNC Machine Tending Connects With ZPP Workholding
Automation works best when material handling and workholding are designed as one workflow. The robot needs a predictable target. The workholding system needs a predictable workpiece position.
This creates a simple relationship:
Robot → Loads Workpiece → Workholding Locates and Secures Part → CNC Machines Part → Robot Unloads Part
For manufacturers developing automated CNC cells, this connection between robot handling and precision workholding is especially important. Our complete guide to robotic machine tending provides broader background on CNC automation and machine tending.
Frequently Asked Questions
What is a CNC machine tending robot?
A CNC machine tending robot is a robotic system that automates repetitive loading and unloading tasks around a CNC machine.
Can a robot load and unload a CNC machine automatically?
Yes. With the correct gripper, machine interface, workholding, safety system, and control sequence, a robot can load raw parts and unload finished parts automatically.
Why is workholding important for robotic CNC loading?
Workholding must locate and secure each workpiece consistently. Repeatable positioning helps the robot and CNC process operate reliably from cycle to cycle.
Can CNC machine tending support lights-out machining?
It can support extended automated operation when the complete cell is designed for reliable material supply, machining, workholding, monitoring, and fault recovery.
Conclusion
CNC machine tending robots automate one of the most repetitive tasks in CNC production: loading and unloading workpieces. The robot handles material movement while the CNC machine performs the machining process.
A reliable system requires more than a robot arm. Grippers, machine communication, workpiece presentation, and repeatable workholding all need to work together. When these elements are properly integrated, robotic CNC loading can create a more consistent and scalable production workflow.
