BT30 vs BT40 Runout Tester: How to Choose the Right Tool for Your CNC Spindle

BT30 and BT40 tool holders power most CNC milling spindles in job shops, aerospace shops, and medical-device manufacturing. Most machinists first notice runout when a tool chatters, surface finish turns rough, or a cutter dies early. A dedicated BT30/BT40 runout tester finds the problem before the tool reaches the spindle.

Below is a practical breakdown of the BT30 and BT40 tapers, why runout matters for each, and how to pick between a manual hand-crank runout tester and an automatic tool runout tester.

What Is a BT30/BT40 Runout Tester?

A BT30/BT40 runout tester is a benchtop instrument that measures radial runout, the side-to-side deviation of a tool or tool holder as it rotates. It seats the holder on a precision spindle or sleeve that matches the taper, rotates the assembly, and reads deviation with a dial indicator or digital probe.

The tester does not measure the machine spindle itself. It checks the assembled tool-holder combination offline, so you can reject or reseat tools before they tie up a machine. For shops running high-speed BT30 spindles or heavy-cutting BT40 spindles, this offline check is the fastest way to protect part quality and spindle bearings.

BT30 vs BT40: What Actually Changes for Runout Testing?

BT30 and BT40 share the same 7/24 self-releasing taper geometry, but the numbers refer to the nominal flange diameter in millimeters. That size difference drives several practical consequences:

From a measurement standpoint, the tester only needs the correct sleeve or spindle adapter. A dual-compatible tester with interchangeable BT30 and BT40 sleeves covers both taper families on one bench, which is why ZPP’s hand-crank and automatic testers ship with adapters for both tapers.

Why Runout Matters for BT30 and BT40 Holders

Runout is more than a quality metric. It is a direct cost driver. Small deviations multiply at spindle speed:

• Uneven tool wear: One flute or insert carries more load, dulling faster and forcing premature replacement.
• Chatter and poor surface finish: Radial wobble excites vibrations that show up as witness marks or rough walls.
• Dimensional drift: A cutter that does not spin on center cuts an oversized or undersized feature.
• Spindle bearing stress: Excess runout transfers cyclic loads into the spindle bearings, shortening service life.

For BT30 holders running small end mills at high RPM, runout below 0.005 mm is often the difference between a clean finish and scrapped parts. For BT40 holders driving larger roughing cutters, catching a bent pull stud or dirty taper before loading can save a spindle.

Manual vs Automatic BT30/BT40 Runout Tester

Both tester styles measure the same thing; the difference is speed, repeatability, and operator independence.

When to Choose the Manual Hand-Crank Tester

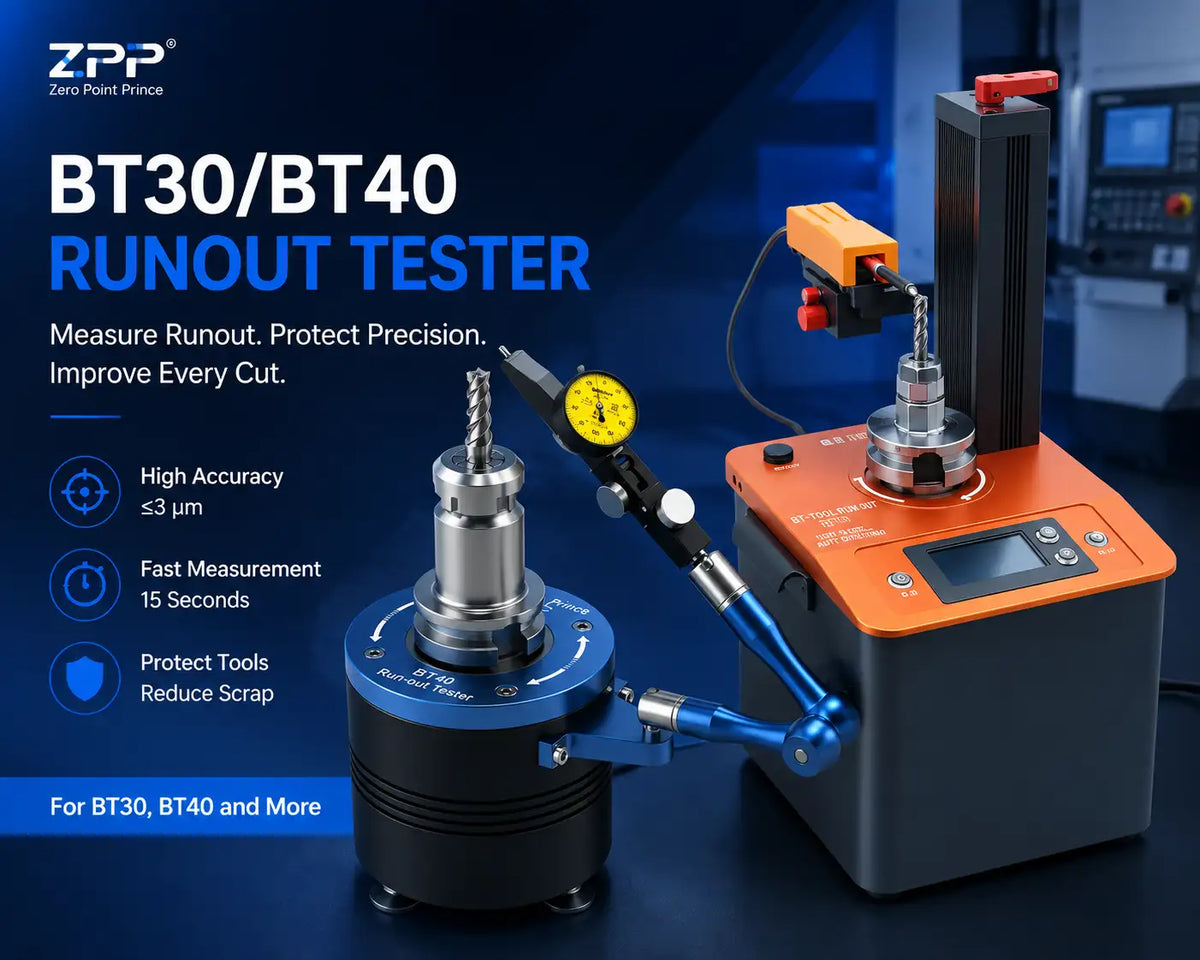

The ZPP BT30/BT40 hand-crank runout tester suits shops that want a simple, portable, no-power measurement station. The hand crank gives the operator tactile feedback. You can feel binding or irregular rotation that a motorized tester might mask. The unit measures D132 x 141.5 mm, weighs 4.5 kg, and uses hardened stainless steel plus POM construction to damp vibration. With interchangeable BT30/BT40 sleeves and ≤0.002 mm base accuracy, it fits tool rooms and incoming inspection.

When to Choose the Automatic Tester

The ZPP automatic tool runout tester brings the full measurement cycle down to about 15 seconds. It rotates the holder at constant speed from 0 to 30 RPM, measures deviation with a ±3 μm digital probe, and triggers an alarm if runout exceeds the preset limit. The optional 4K HD camera, LED light, and focus adjustment let operators visually inspect tool-tip wear during the same cycle. This is the better choice for production floors where every minute of setup time counts.

How to Measure BT30 or BT40 Runout Accurately

Regardless of tester style, the measurement procedure follows the same principles:

1. Clean the taper and bore. Chips, coolant residue, or oil films are common causes of false high readings.
2. Seat the holder fully. Insert the BT30 or BT40 taper into the matching tester sleeve until it bottoms consistently.
3. Position the probe. Place the indicator or probe near the tool tip for total indicated runout (TIR), or on the tool shank for holder concentricity.
4. Rotate slowly and smoothly. On a manual tester, crank at a steady rate. On an automatic tester, the motor controls speed.
5. Record the total indicator reading. TIR is the difference between the highest and lowest needle positions across one full revolution.
6. Check against your tolerance. General machining may accept 0.010 mm TIR; high-speed finishing often demands ≤0.005 mm.

Tip: measure at two points, near the tool tip and near the holder flange, to separate tool bending from holder taper error. If the tip shows high runout but the flange is clean, the cutter or collet is the problem, not the holder.

Common Causes of High Runout in BT30 and BT40 Holders

• Dirty or damaged taper: Even a small nick changes seating position.
• Worn collet or nut: Collets fatigue over time and lose gripping symmetry.
• Over-torqued retention knob: Can distort the holder bore or pull stud seat.
• Mixed pull-stud length: BT40 especially has multiple pull-stud standards; the wrong length leaves the taper partially seated.
• Inconsistent tool insertion depth: The tool must bottom the same way every time.

A runout tester turns these guesses into measurable facts. Instead of swapping parts until the cut looks right, you identify the weak link in 15 seconds.

BT30/BT40 Runout Tester Selection Checklist

Use this checklist to decide which tester belongs in your shop:

1. Confirm taper compatibility. Will you measure BT30, BT40, or both? Choose a tester with interchangeable sleeves.
2. Define accuracy requirements. ≤0.002 mm for hand-crank and ±3 μm for automatic testers cover nearly all CNC work.
3. Estimate throughput. A few tools per day = manual tester is fine. Dozens per shift = automatic tester pays for itself in setup-time savings.
4. Check power availability. No outlet nearby? The manual tester is fully mechanical.
5. Consider inspection documentation. Automatic testers with digital readouts make it easier to record pass/fail data for quality systems.

ZPP BT30/BT40 Runout Tester Lineup

ZPP offers both manual and automatic BT30/BT40 runout testers to match different shop workflows:

• BT30/BT40 Hand-Crank Runout Tester — BT30/BT40 interchangeable sleeves, ≤0.002 mm base accuracy, hardened stainless steel + POM construction, 4.5 kg benchtop unit. Best for tool rooms and QC stations.
• Automatic CNC Knife Positioning / Tool Runout Tester — ±3 μm accuracy, 15-second measurement cycle, automatic constant-speed rotation, digital tolerance alarm, optional 4K HD camera for tool-tip inspection. Best for production presetting.

Both testers complement a zero point clamping system. The same precision discipline that speeds up fixture changeovers should also apply to the tools going into the spindle.

Frequently Asked Questions

Can one runout tester measure both BT30 and BT40?

Yes, if it includes interchangeable sleeves or adapters. ZPP’s BT30/BT40 hand-crank tester ships with sleeves for both tapers, and the automatic tester supports BT30, BT40, BT50, and other tapers through interchangeable tooling.

What is an acceptable runout for BT40 tooling?

For general milling, 0.010 mm TIR is commonly accepted. For finishing, high-speed machining, or aerospace/medical work, aim for ≤0.005 mm. Always follow your part print or process specification if it is tighter.

Is BT30 more sensitive to runout than BT40?

BT30 holders are usually run at higher spindle speeds with smaller tools, so the same absolute runout produces a larger relative effect. That does not mean BT40 is forgiving — it just means both tapers benefit from regular offline runout checks.

How often should I check tool holder runout?

Check new holders on receipt, after any drop or crash, whenever surface finish degrades, and as part of periodic tool-room audits. High-volume shops often check every holder before it goes to the machine.

What is the difference between runout and concentricity?

Runout (TIR) is the total visible displacement measured at one point as the part rotates. Concentricity is a more complex geometric tolerance that compares the median axis of a feature to a datum axis. For day-to-day CNC work, TIR runout is the practical measurement.

Does a runout tester replace a tool presetter?

No. A presetter measures tool length and diameter offsets for the CNC controller. A runout tester measures radial deviation and concentricity. They solve different problems, though some advanced presetters include runout measurement.
