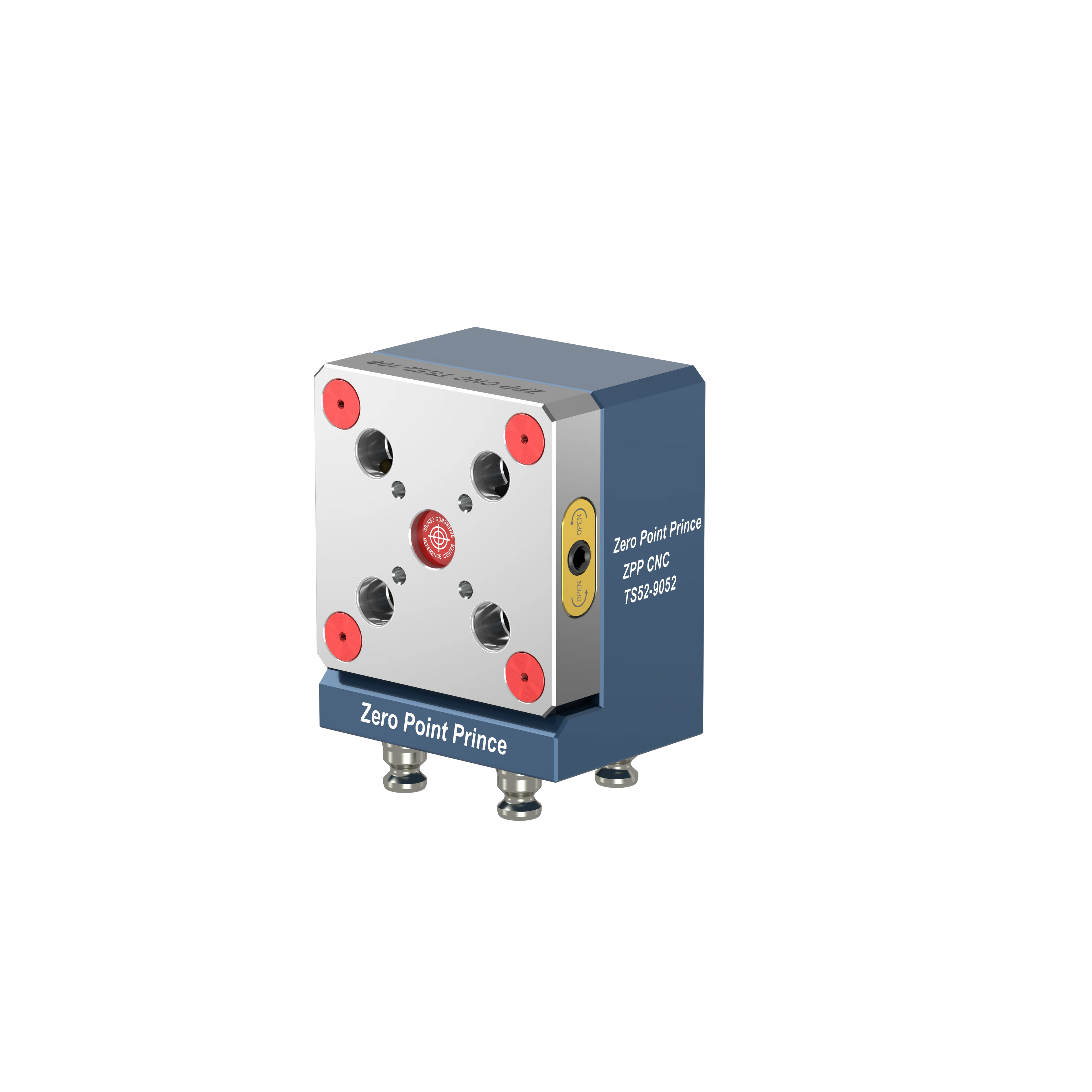

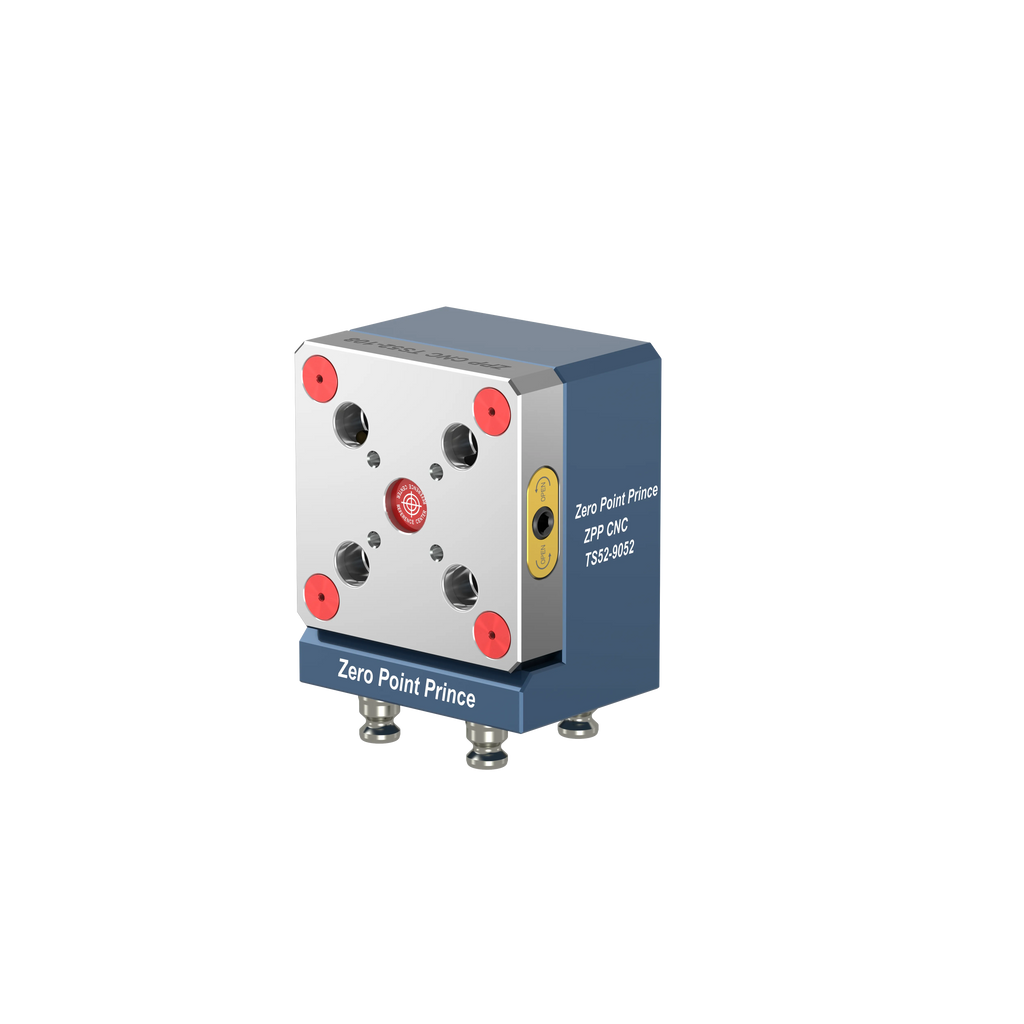

TS52-9052 Manual Zero Point Clamping (108*81*130mm)
  • TS52-9052 Manual Zero Point Clamping (108*81*130mm)
  • TS52-9052 Manual Zero Point Clamping (108*81*130mm)
TS52-9052 Manual Zero Point Clamping (108*81*130mm)

TS52-9052 Manual Zero Point Clamping (108*81*130mm)

Parameter Detail
Model TS52-9052 (Manual Zero Point Clamping, Precision Type)
Dimensions 130 × 108 × 81 mm
Material Hardened Stainless Steel + Aluminum Base
Locking Force 18 kN
Locking Method 52 Pull Studs (TS52 series)
Weight 4.3 kg

ZERO POINT PRINCE – ZPP CNC
Your Partner in Precision Machining.
feature

Core Benefits – Quick & Clear

  • Manual Zero‑Point Clamping – Precision Type
    Tool‑free operation – simply place a fixture plate equipped with TS52 pull studs onto the unit and lock manually. Repeatable positioning to sub‑micron accuracy, no alignment required.
  • 18 kN Locking Force
    Reliable clamping for small to medium workpieces – holds fixtures rigidly during milling, drilling, and high‑speed finishing in aluminum, steel, and composites.
  • Modular Design – 52 Pull Stud Locking
    Compatible with TS52‑series pull studs (M8). Use multiple TS52‑9052 units to create custom pallet arrays – handle planar or irregular components without dedicated tooling.
  • Compact & Interference‑Free
    130×108 mm footprint, only 81 mm high – fits easily on crowded machine tables, 5‑axis trunnions, or pallet pools. Well‑structured housing avoids machining interference.
applicable scene

Key Use Cases

  • High‑Mix Automotive & Heavy Machinery – Pre‑fixture different parts on dedicated plates with TS52 pull studs. Change entire jobs in under one minute – ideal for job shops and batch production.
  • Mold Manufacturing – Secure mold inserts or core pins on precision pallets – manual zero‑point clamping ensures sub‑micron repeatability for electrode and cavity machining.
  • Palletized Workflows – Mount multiple TS52‑9052 units on a machine table to run several small pallets – maximize throughput without automation.

Precision Manual Clamping for High‑Throughput Environments

The TS52‑9052 combines 18 kN locking force, TS52 pull stud compatibility, and a compact low‑profile design – faster changeovers, sub‑micron repeatability, and zero jaw lift or deformation.
