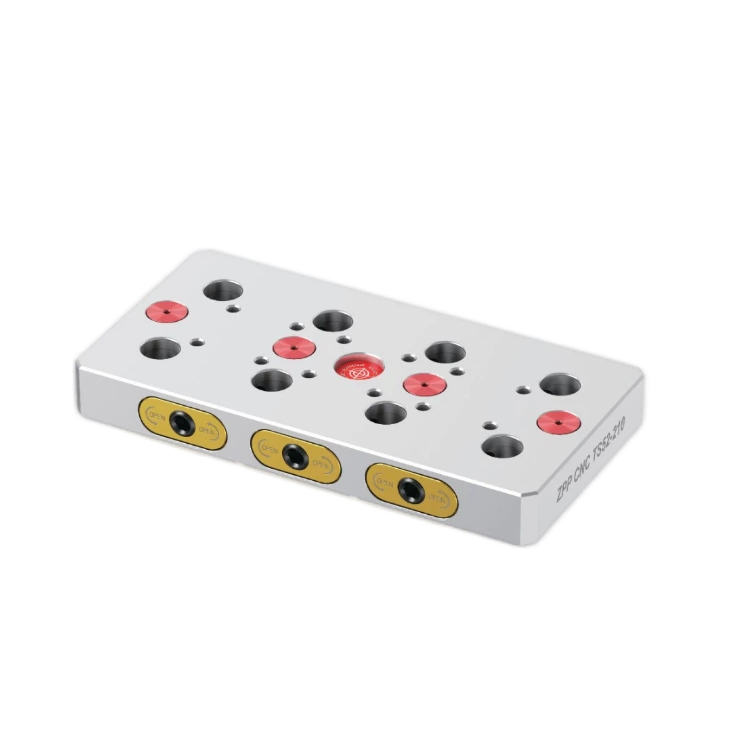

TS52-210 Zero Point Clamping Element (210*108*25mm)

Slim, Strong, and Stainless – For Narrow Pallets & Tight Grids

Long‑Span Locking in a Low‑Profile Package

Need a zero‑point clamp that fits between fixture mounting points without wasting table space? The TS52‑210 delivers 18 kN locking force in a slim 210×108×25 mm hardened stainless steel body – ideal for narrow pallets, tombstone sides, or custom grid layouts where width is limited.

Core Benefits – Quick & Clear

•
  18 kN Locking Force
  Same reliable, repeatable clamping as the entire TS52 series – holds pallets and fixtures rigidly under heavy cutting loads.

•
  Slim & Low‑Profile
  Only 25 mm high and 108 mm wide, with a 210 mm length. Fits in tight spaces between T‑slots or on narrow riser plates. Preserves valuable Z‑axis stroke.

•
  Hardened Stainless Steel
  Corrosion‑resistant and wear‑resistant – maintains <0.005 mm repeatable positioning over thousands of cycles. Perfect for wet machining or high‑humidity environments.

•
  Easy Integration

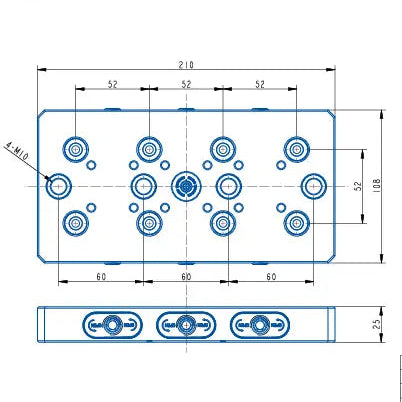

  4‑M10 mounting holes. Mount directly on machine tables, sub‑plates, or custom fixture bases. Works with standard zero‑point pallet systems.
