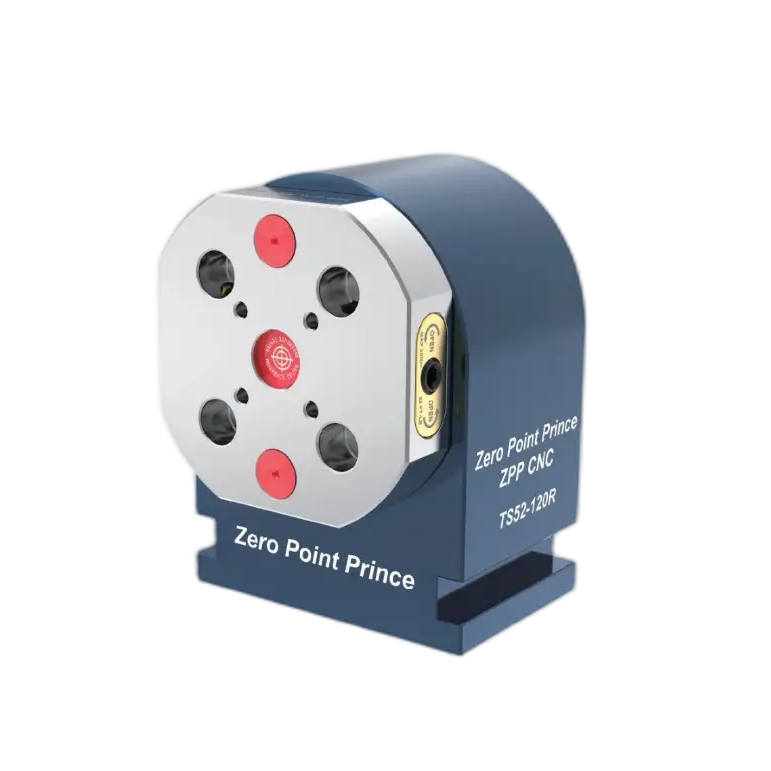

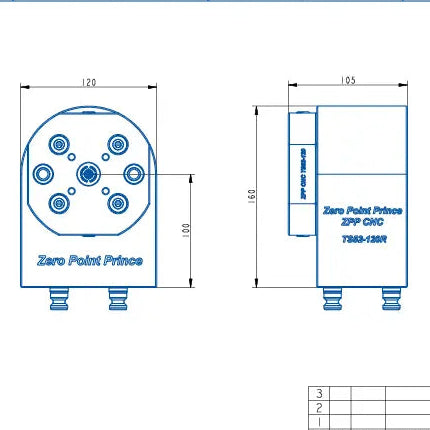

TS52-120R Manual Zero Point Clamping Unit – Adjustable Angle (160*120*105mm)

0‑90° Adjustable Rotation for Multi‑Angle Machining

Lock, Rotate, Machine – One Setup, Multiple Angles

Need to machine different faces of a workpiece without multiple fixtures or re‑clamping? The TS52‑120R combines a robust zero‑point clamp base with an adjustable 0‑90° rotating head – all in a compact 160×120×105 mm package. Lock the angle securely with a tension bolt, then machine compound angles or orthogonal faces in a single setup. Ideal for 3‑axis mills, manual indexers, or as a flexible auxiliary on 5‑axis tables.

Core Benefits – Quick & Clear

•
  Adjustable Rotation 0‑90°
  Dial in any angle between 0 and 90 degrees – lock it firmly with the tension bolt. Machine vertical, angled, or horizontal features without repositioning the workpiece.

•
  18 kN Locking Force
  Reliable clamping for small to medium workpieces – holds securely under light to moderate cutting loads.

•
  Zero‑Point Ready
  Mounts directly on TS52 series zero‑point clamps (compatible with M8 pull studs – not included). Swap the entire angle fixture in seconds with <0.005 mm repeatability.

•
  Hybrid Construction
  Hardened stainless steel rotating mechanism + lightweight aluminum base – only 7.8 kg. Reduces inertia on rotary tables while maintaining rigidity.


Product Specifications
