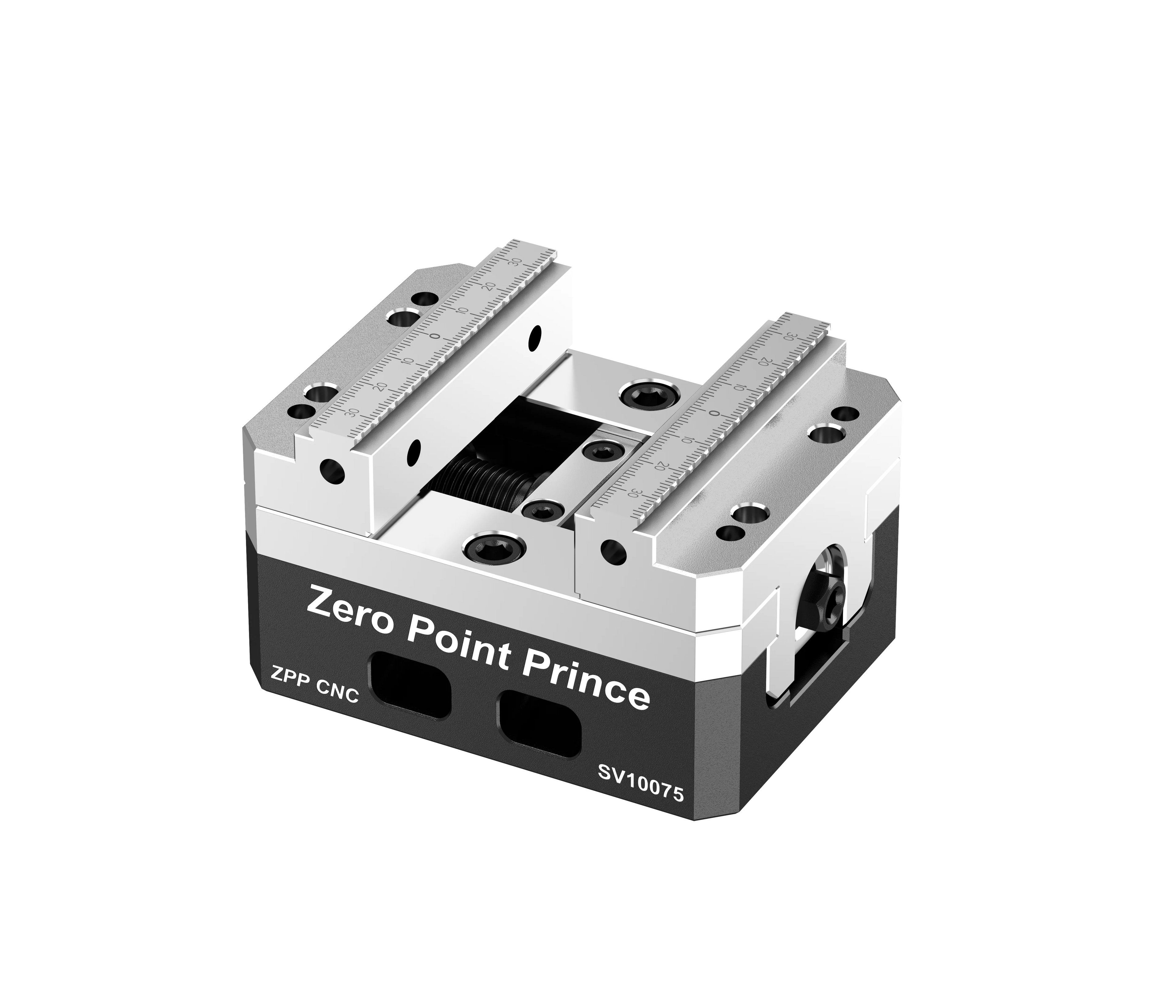

SV10075 Self‑Centering Vise – Economy (100*75*62mm)

Compact, Dual‑Direction Clamping with 14 kN Force

Center the Workpiece Every Time – No Alignment Needed

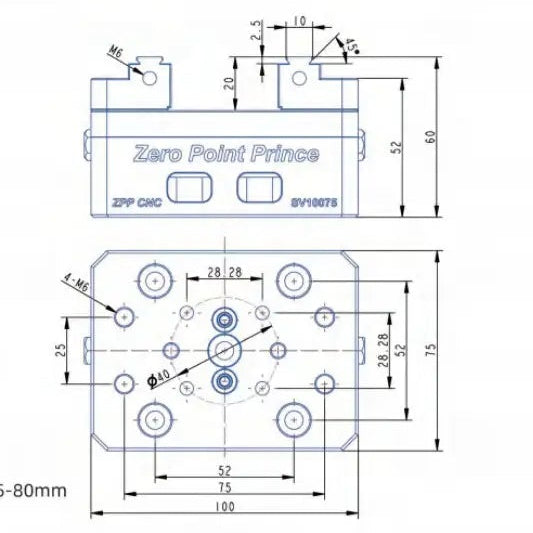

Manually centering parts in a standard vise wastes time and introduces positioning errors. The SV10075 economy self‑centering vise solves this – a compact 100×75×62 mm hardened steel vise that automatically centers the workpiece regardless of width. With forward clamping 0‑46 mm and reverse clamping 45‑80 mm, it handles a wide range of part sizes. 14 kN clamping force at 60 Nm torque keeps parts rigid for milling, drilling, or light turning. Ideal for job shops, prototyping, and batch production where quick, repeatable centering matters.

Core Benefits – Quick & Clear

•
  Self‑Centering Action
  Moves both jaws simultaneously toward the center – the workpiece is always positioned on the machine’s centerline. Eliminates dialing in parts, reduces setup time by up to 70%.

•
  Dual Clamping Ranges
  Forward: 0‑46 mm / Reverse: 45‑80 mm. One vise handles small blanks, round stock, and medium‑size blocks – no need to change vises for different part widths.

•
  14 kN Clamping Force @ 60 Nm
  Reliable holding for light to medium machining – aluminum, mild steel, plastics, and composites. Rigid enough for end milling, drilling, and tapping.

•
  Compact & Economical
  Small footprint (100×75 mm) fits on mini mills, 4th axis rotary tables, or crowded workbenches. Lightweight (2.6 kg) but built from hardened steel for durability.
