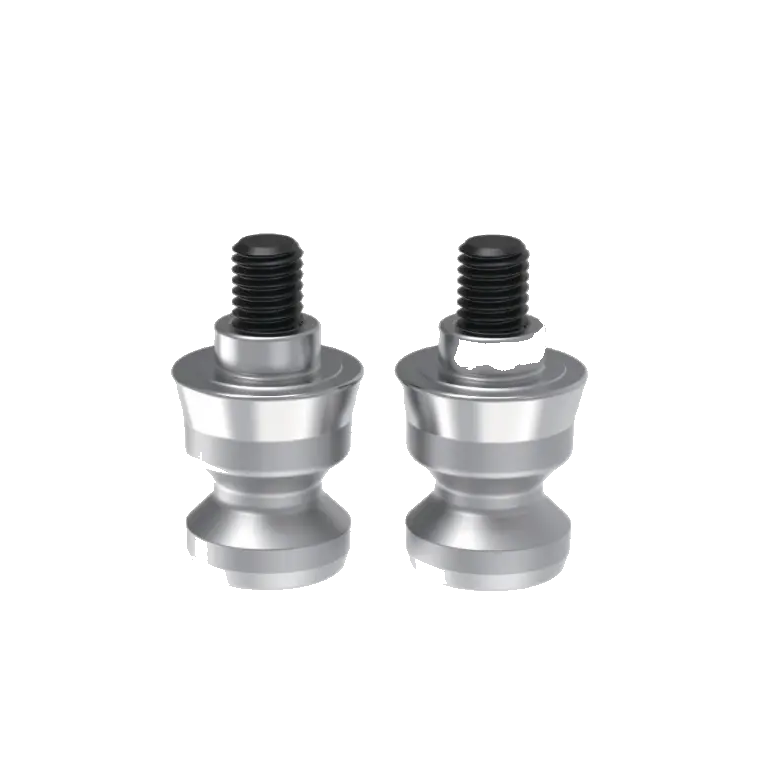

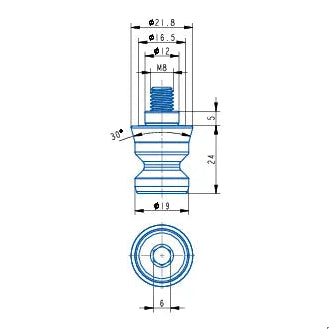

PM52-PullStuds Pull Studs Series – M8 (D21.8*29mm)

Precision Pull Studs for PM52 Zero Point Clamping Systems

The Essential Link Between Your Fixture and the Clamp

Pull studs are the critical interface that transfers clamping force from the zero‑point unit to your pallet or fixture. The PM52‑PullStuds are precision‑ground from hardened stainless steel – designed specifically for the PM52 series of manual, pneumatic, and high‑precision zero‑point clamps. Reliable, repeatable, and built to last thousands of cycles.

Core Benefits – Quick & Clear

•
  18‑20 kN Holding Capacity
  Matches the full clamping force of all PM52 series units (TS52, PM52, AP52) – no strength loss at the connection point.

•
  Hardened Stainless Steel
  Wear‑resistant and corrosion‑resistant – maintains <0.005 mm repeatable positioning over millions of cycles. Ideal for wet or dry machining environments.

•
  Precision Ground Geometry
  Ensures consistent seating and pull‑down action – eliminates play and maximizes rigidity between the pallet and clamp.

•
  M8 Mounting Thread
  Standard M8 thread for easy installation into fixture plates, pallets, or custom workholding. Lightweight at only 0.045 kg.
